WEICON products are used in fascinating applications all over the world, e.g. on the largest bridge in Turkey, on pipelines in Romania and South America, or for sophisticated bonding work in Dubai on a trade fair pavilion. Our products are used internationally. We have summarised our most exciting applications from recent years to highlight their benefits and special features. These global applications illustrate the versatile and indispensable role of WEICON products around the world.

Repair of conveyor belts in a quartz mine

Mounting stoneware sewers with plastic pipes

Inner coating of pumps

Attachment and alignment to hose covers and couplings on bunker station in harbour

Bonding of 28,000 brackets for aluminium rhombs

Crack repair of a moulding die for bumpers in the automotive industry

Repair of a leakage on a cooler

Bonding sight glasses to monitor the suspension cables on the Çanakkale 1915 Bridge

Sealing of battery packs on electric cars

Repair of a bronze propeller shaft

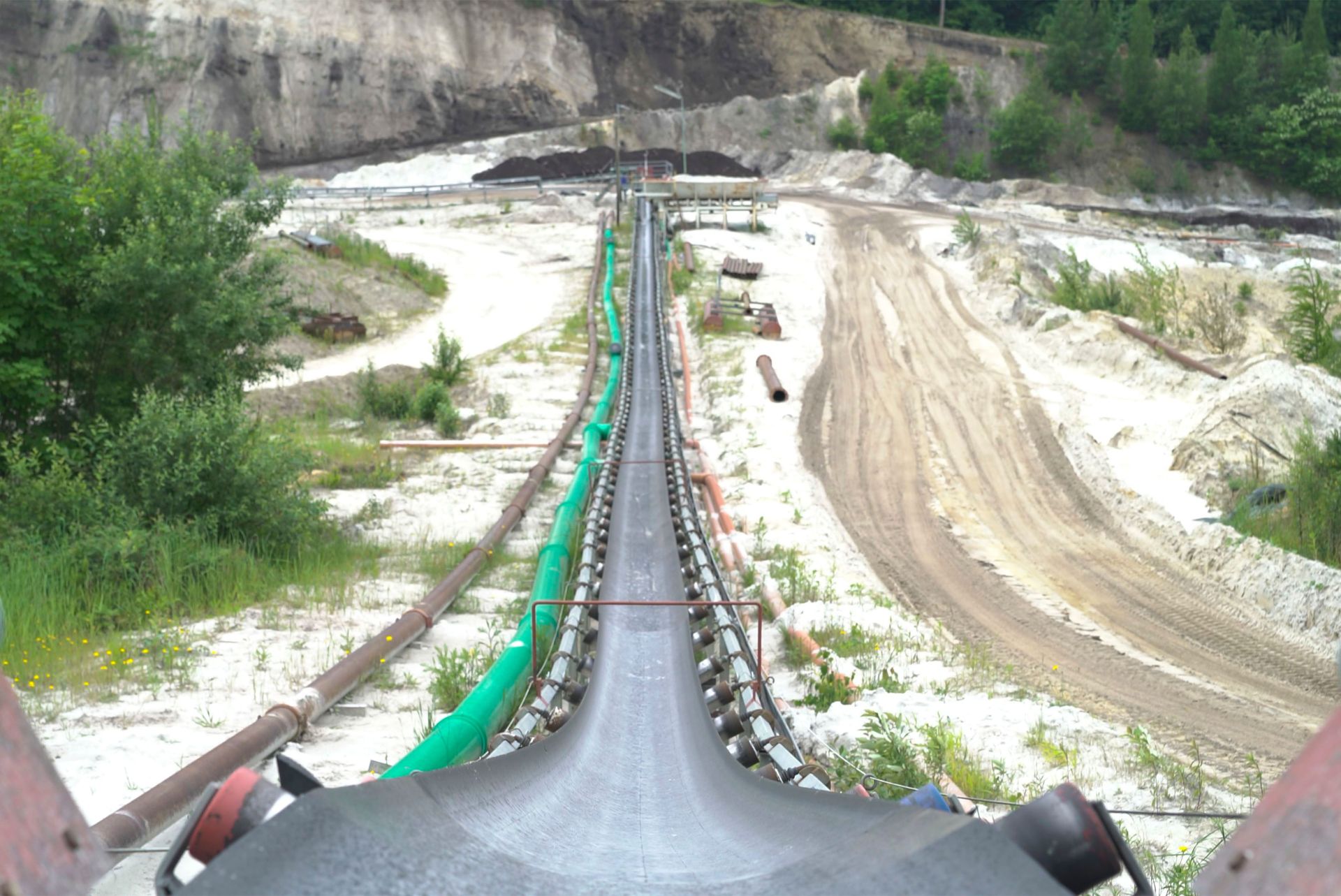

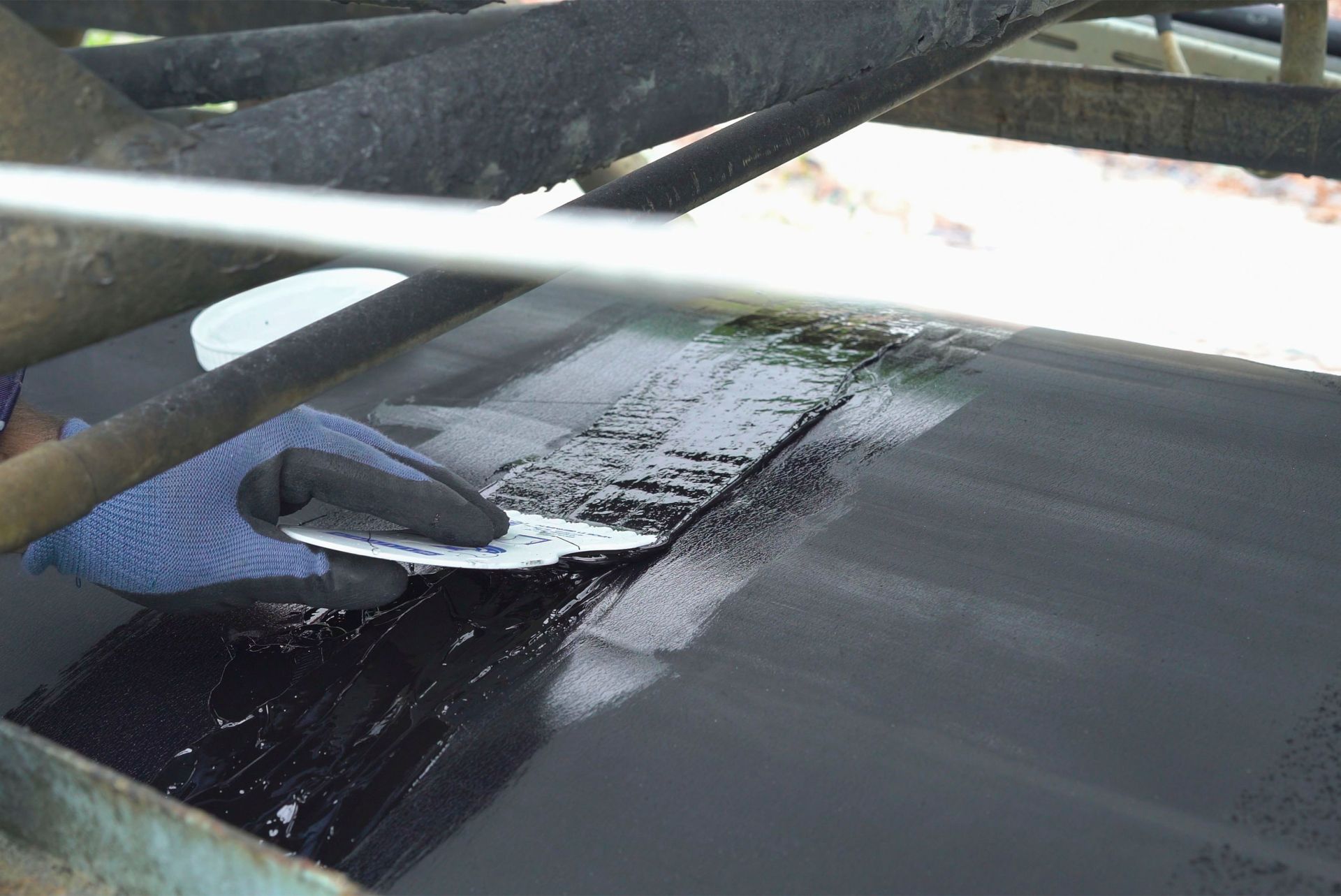

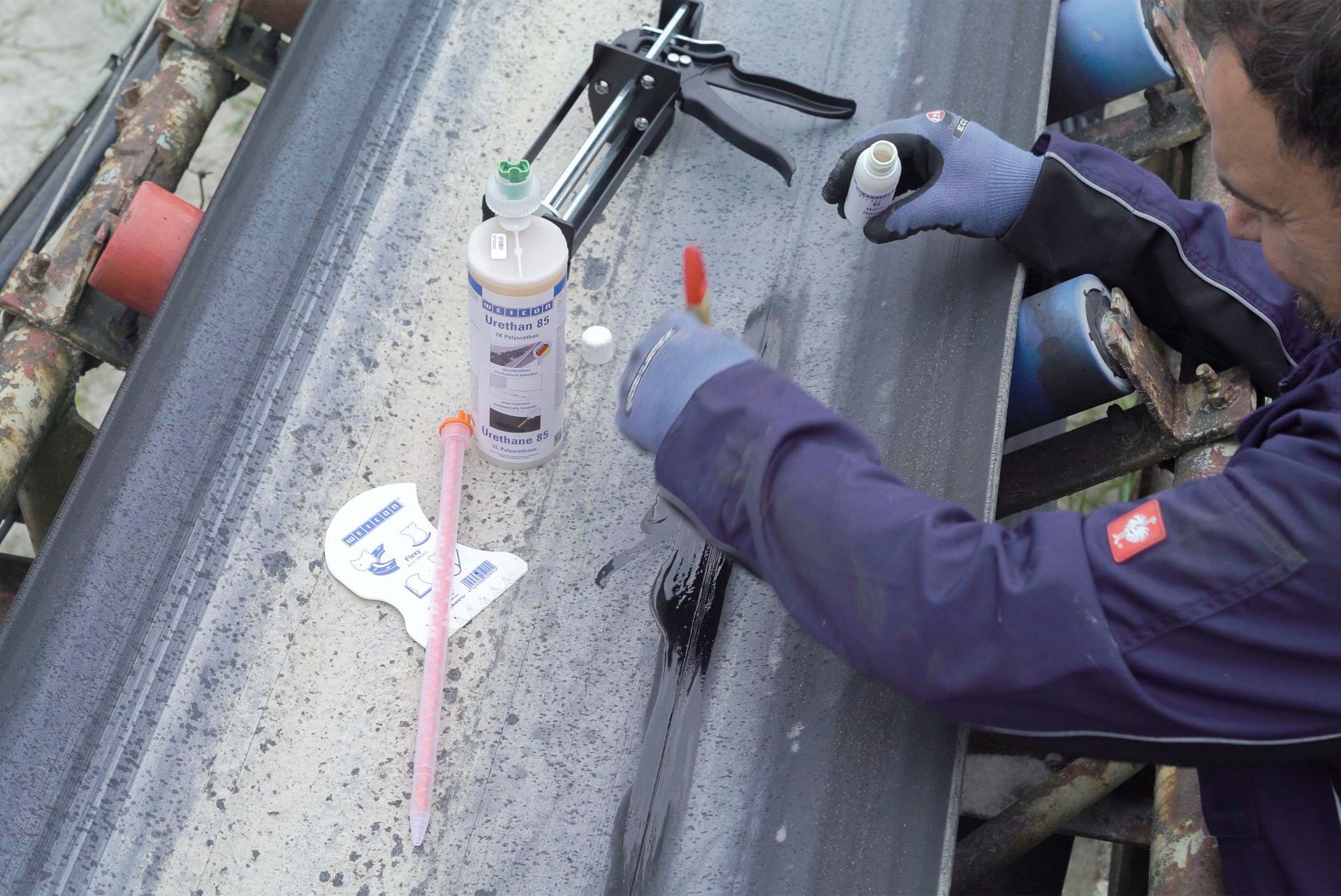

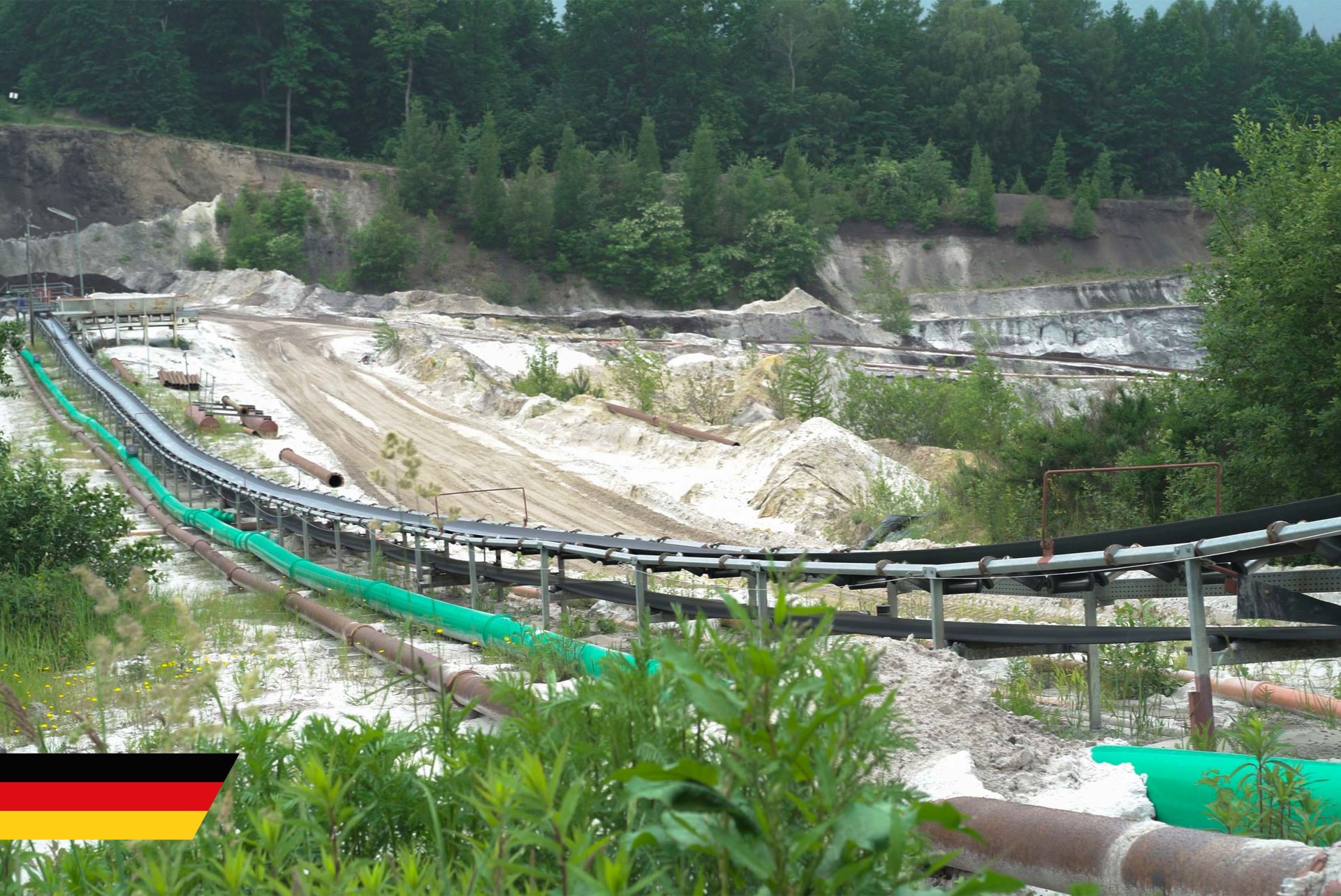

Repair of conveyor belts in a quartz mine

Removing coarse dirt
Roughening and levelling the damaged areas with an angle grinder (rasp disc or cup wheel)
Cleaning the surface with WEICON Cleaner Spray S
Mixing and applying WEICON Primer G with a paint brush
Allow WEICON Primer G sufficient time to flash off
Depending on the container application of WEICON Urethane 85
Smoothing the surface with WEICON Contour Spatula Flexy

Advantage of our solution:

✓ Very cost-effective way to restore the functioning of the conveyor belts and thus extension of the service life

✓ Versatile application possibilities

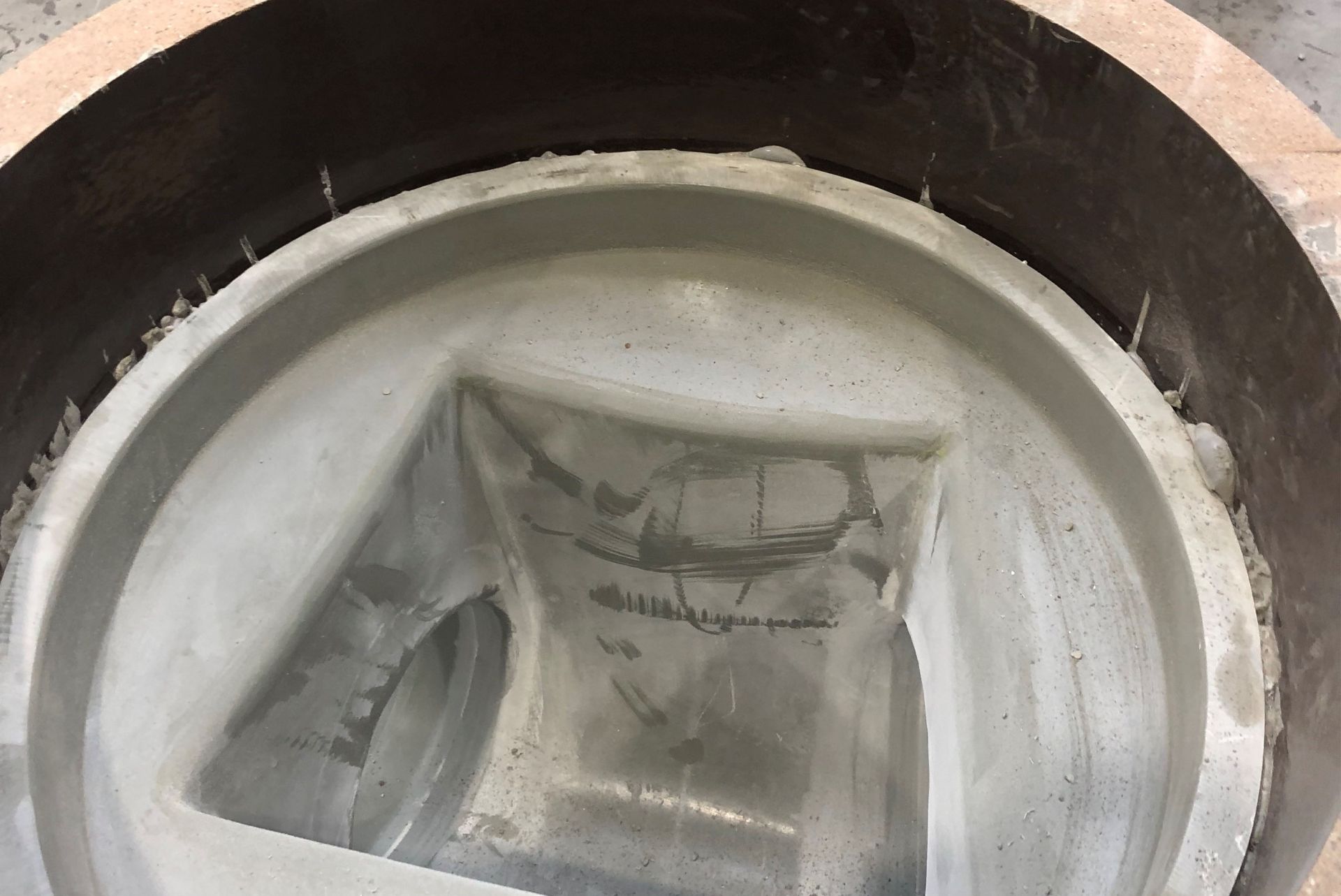

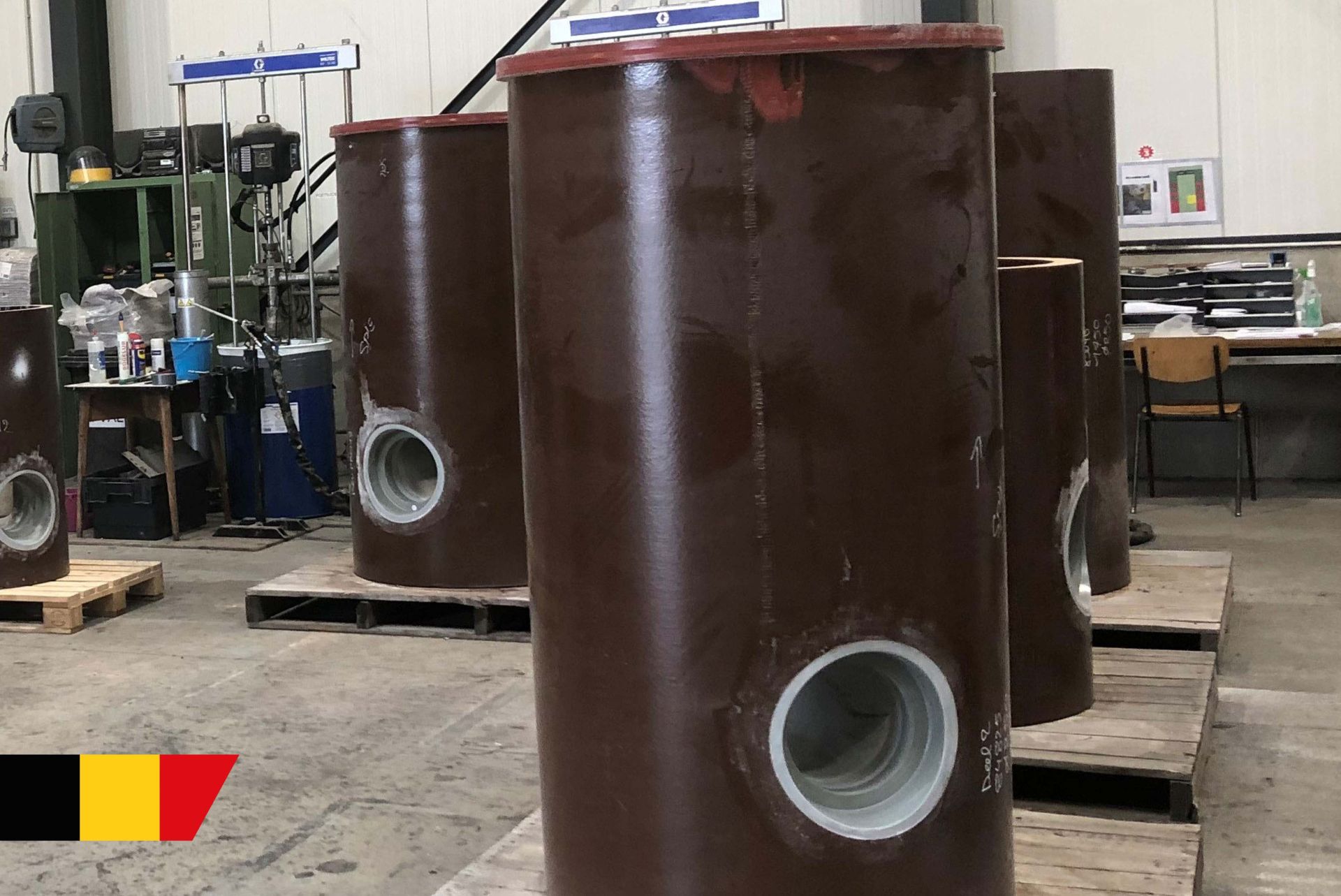

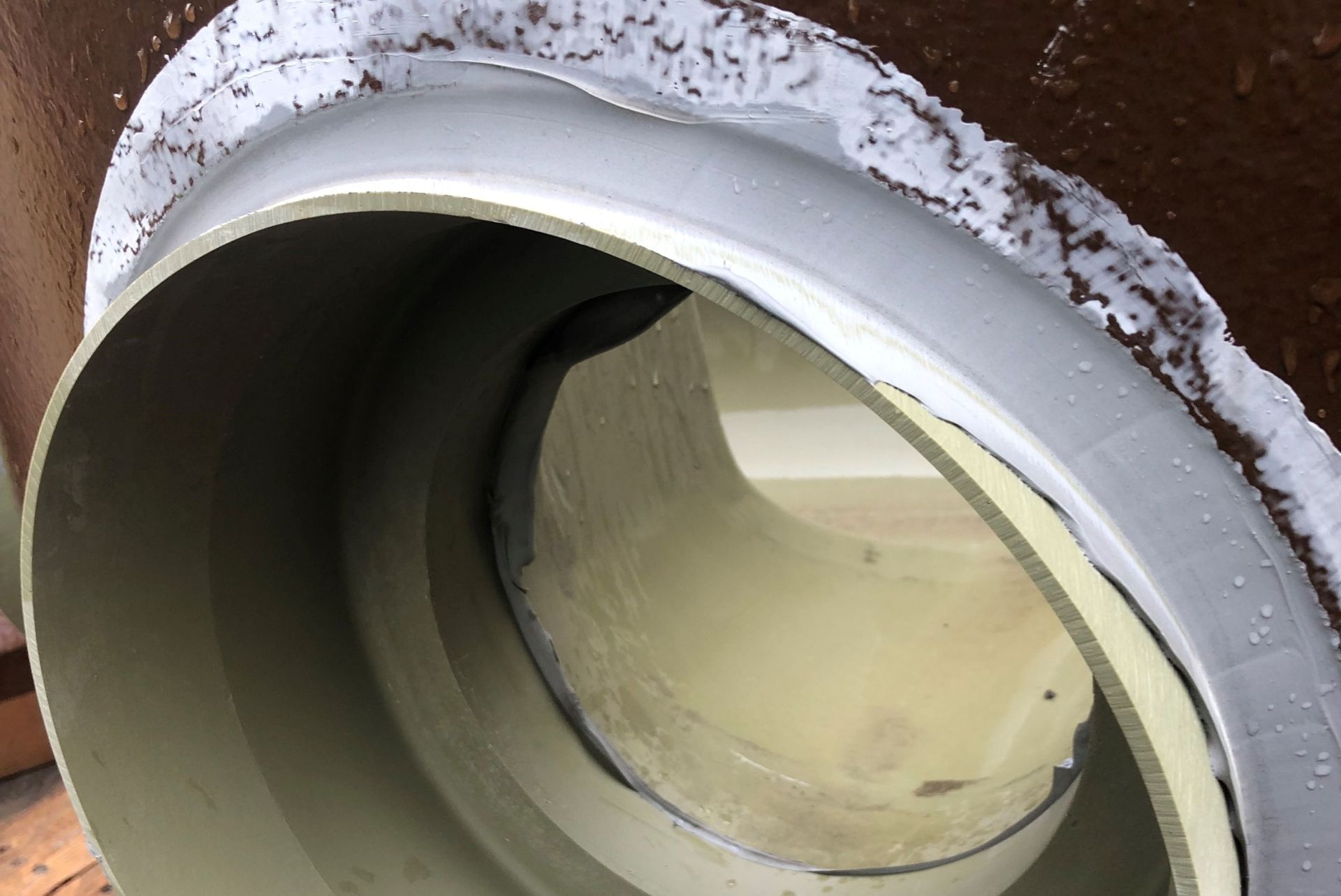

Mounting stoneware sewers with plastic pipes

Mounting stoneware sewers with plastic pipes_1

Mounting stoneware sewers with plastic pipes

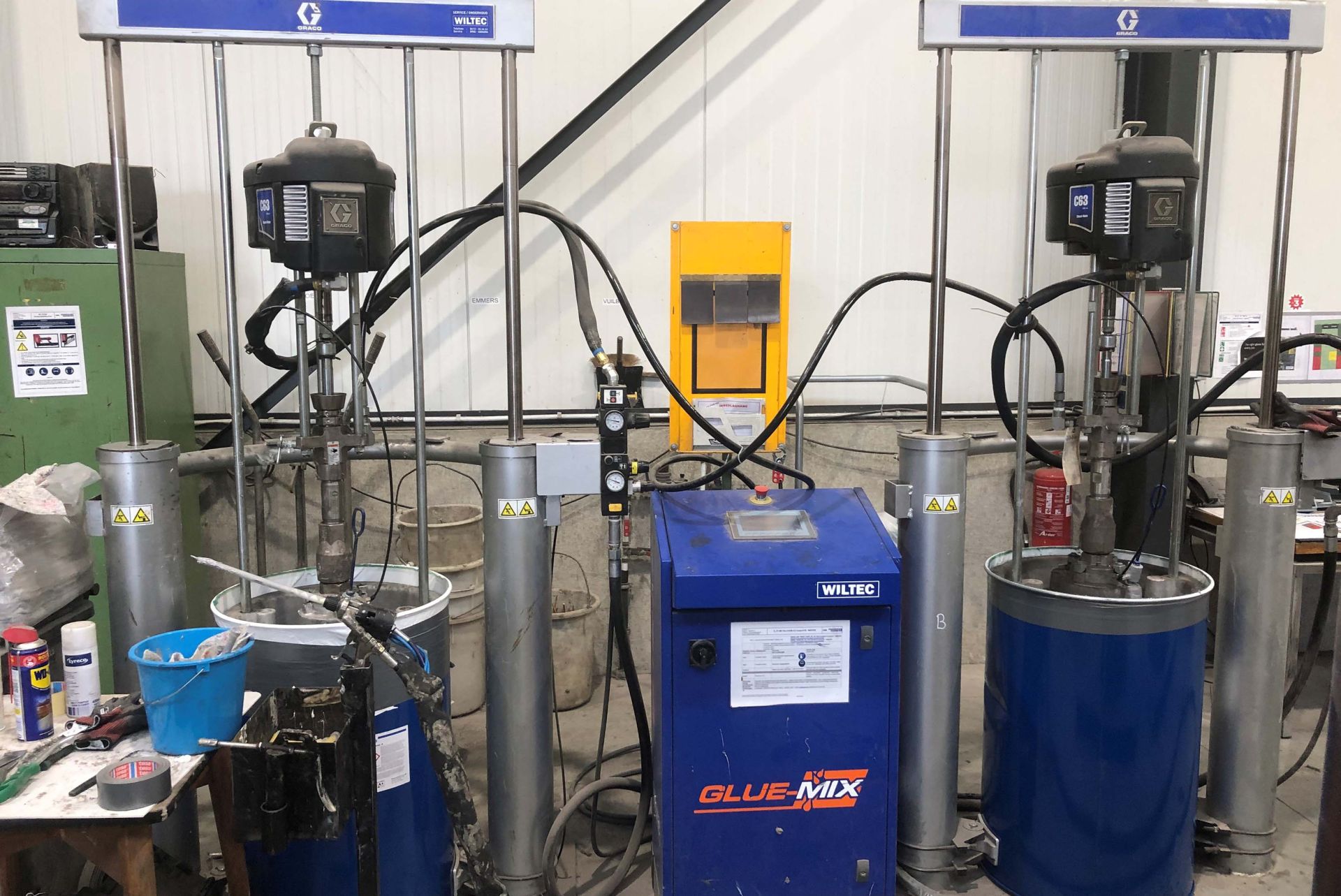

Installation of a dosing system due to the large material consumption
Gap-filling and bonding with generous application of WEICON Flex 310 M^® 2 K
With this type of drum dosing system, the adhesive is mixed only in the mixing nozzle

Advantage of our solution:

✓ Compared to other adhesives: elasticity, tolerance compensation, good sealing effect, high adhesive strength and curing independent of ambient conditions thanks to 2C system

✓ Adhesive is only mixed in the mixing nozzle

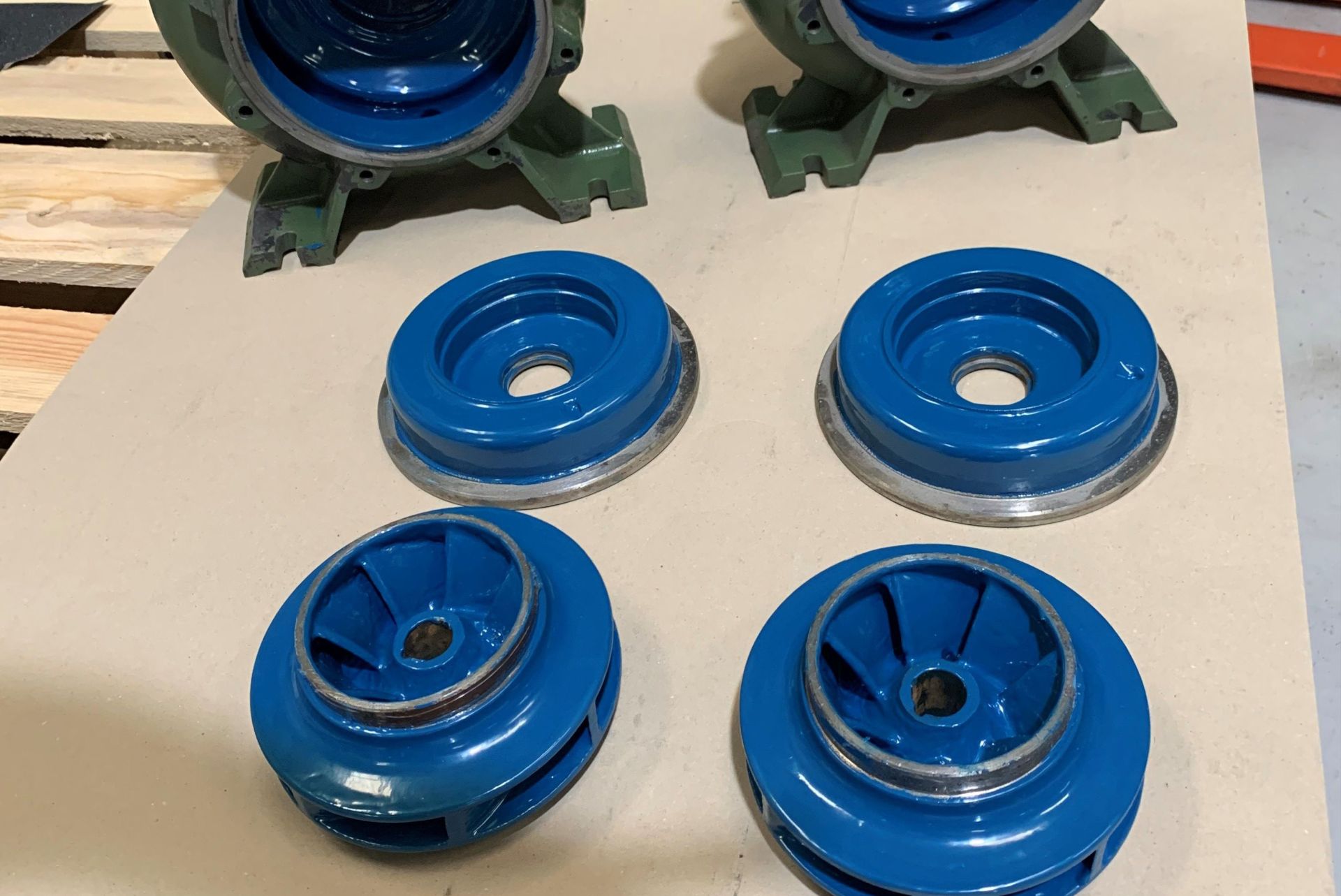

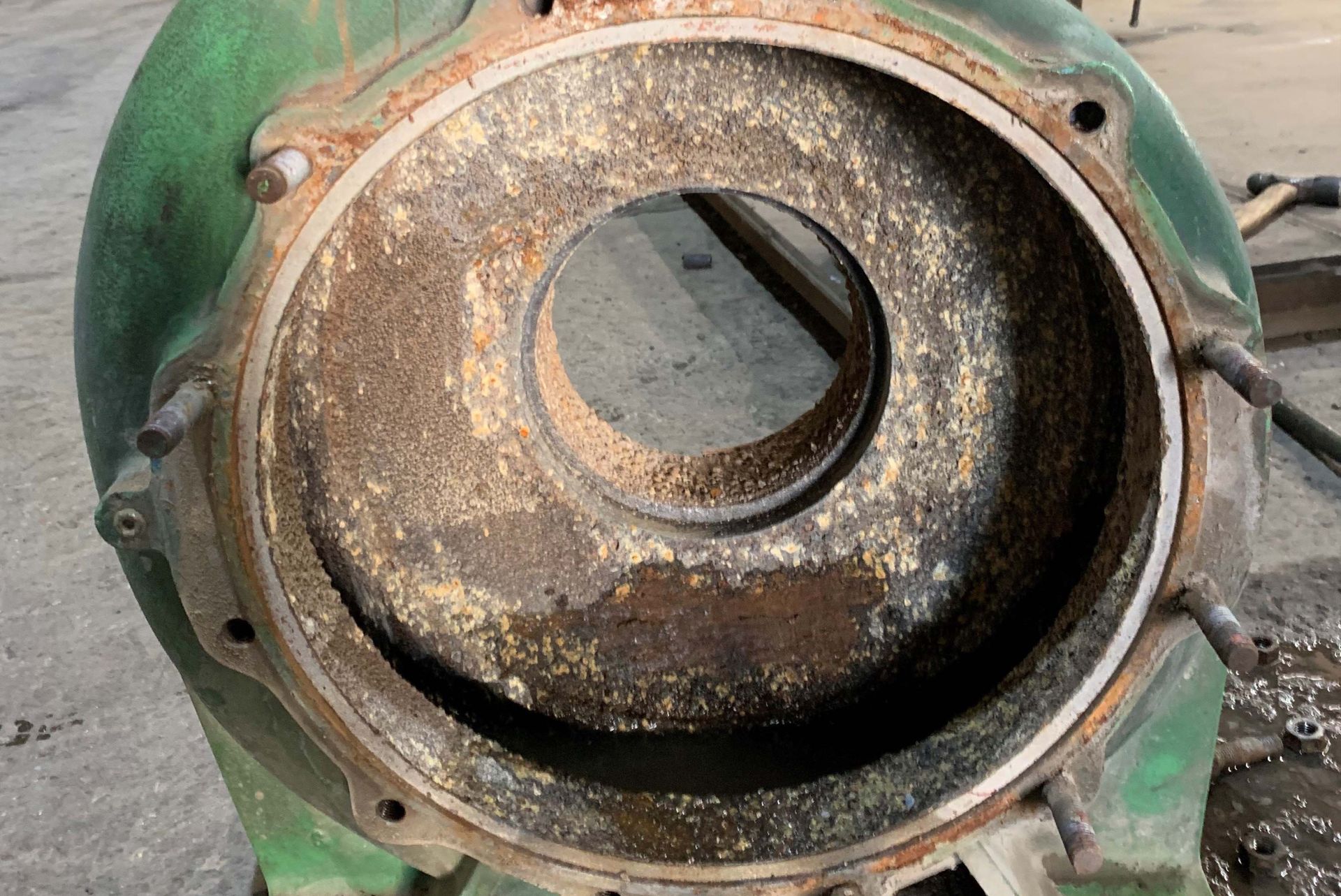

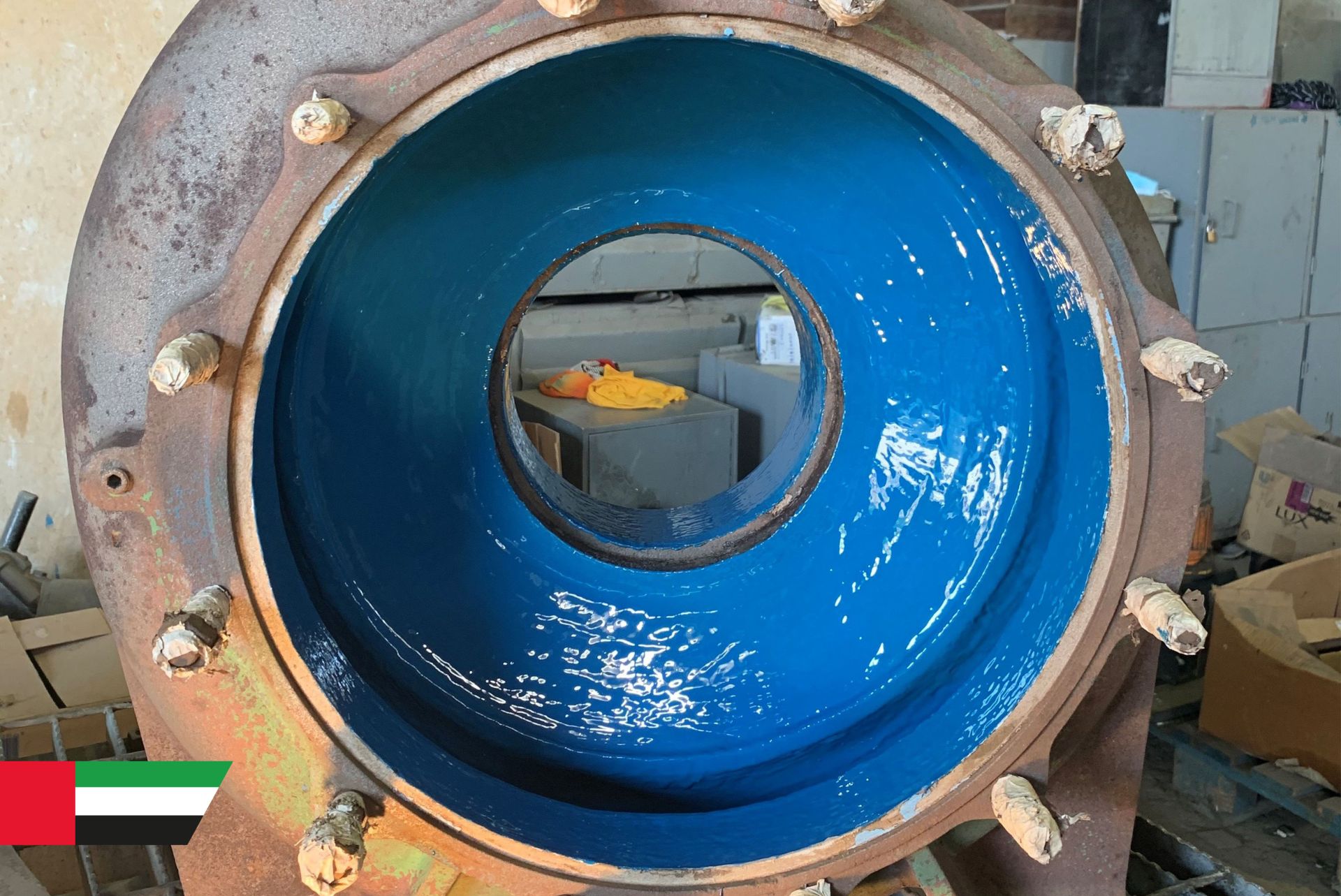

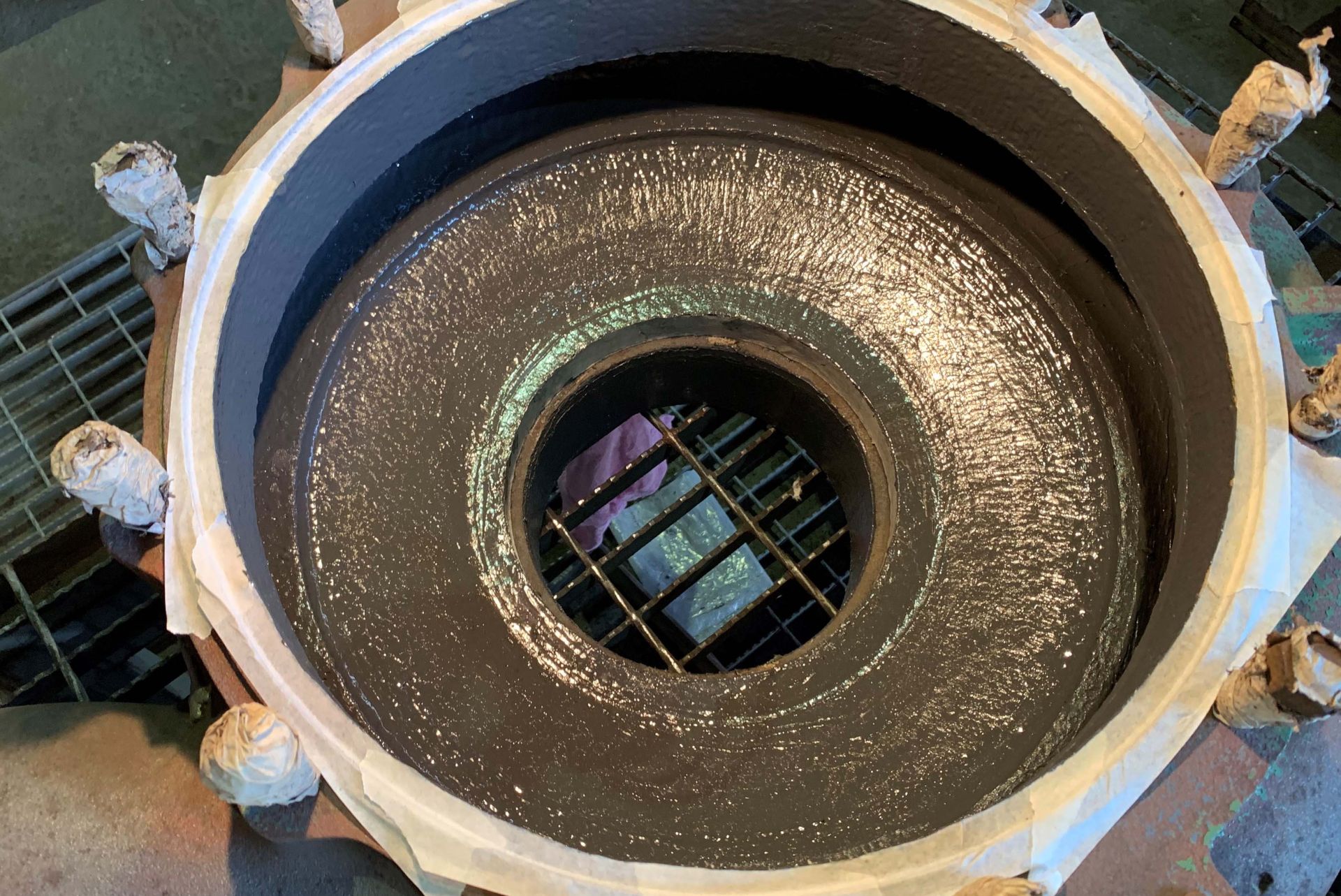

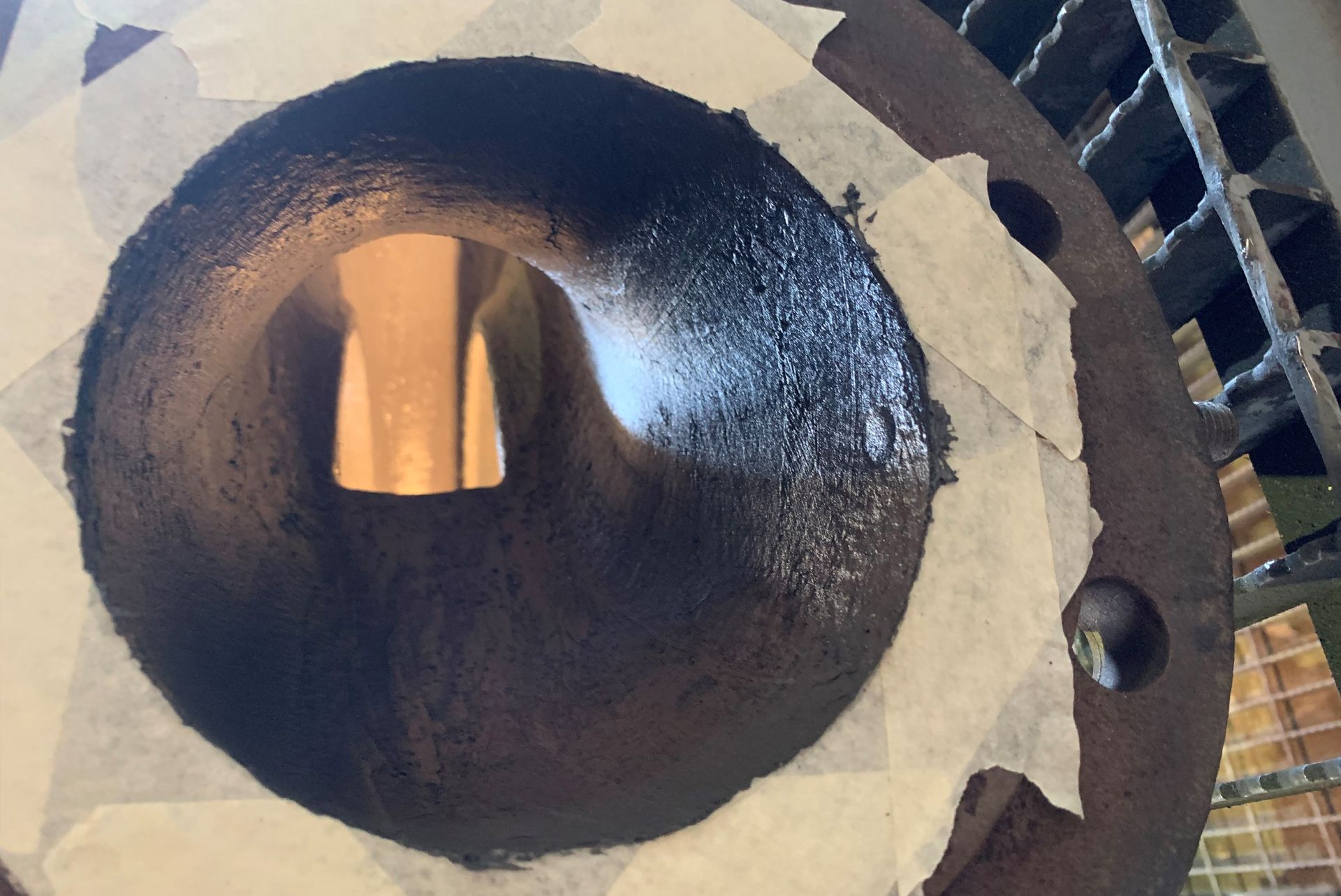

Inner coating of pumps

Pre-treatment with sandblasting
Cleaning with WEICON Cleaner Spray S
Repairing the cavitation and corrosion damages with WEICON HB 300
Final coating as wear protection with WEICON Ceramic BL

Advantage of our solution:

✓ Repairing worn pumps

✓ Additional protection for new pumps

✓ Cost-effective repair and long service life

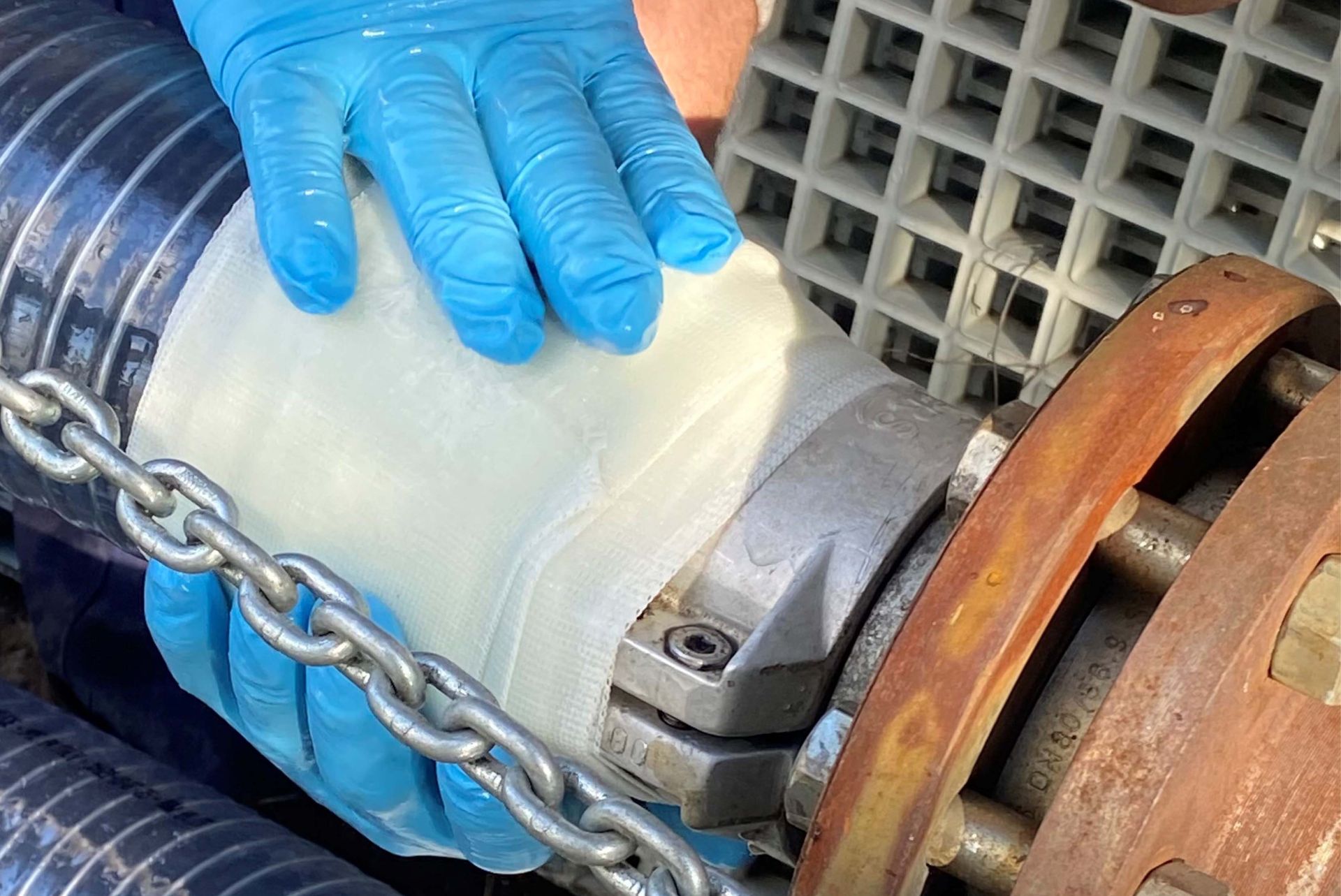

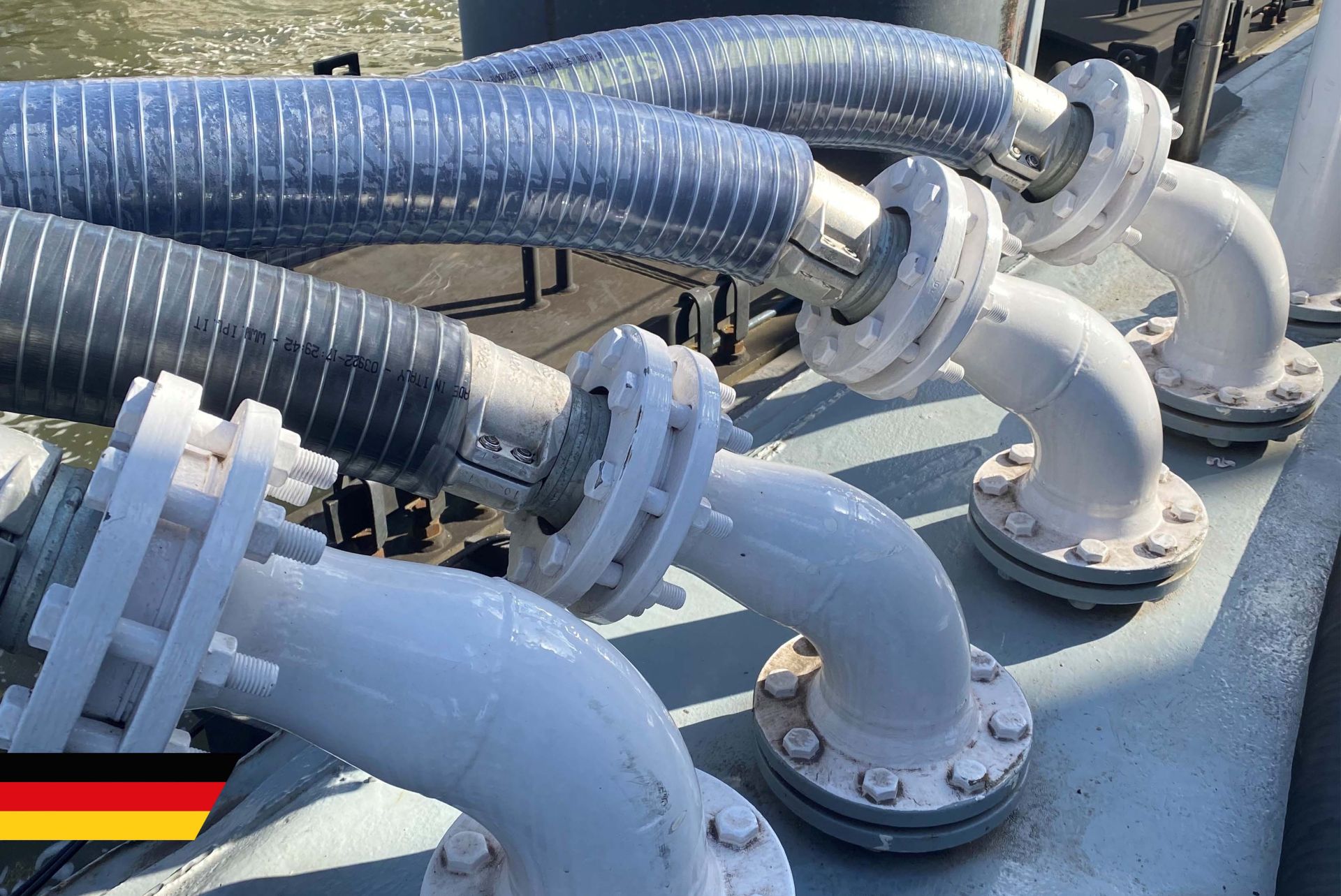

Attachment and alignment to hose covers and couplings on bunker station in harbour

Clean the surface with WEICON Cleaner Spray S
Align hose covers
Apply WEICON Repair-Tape 10 cm x 3.5 m

Advantage of our solution:

✓ Simple, inexpensive and reliable sealing

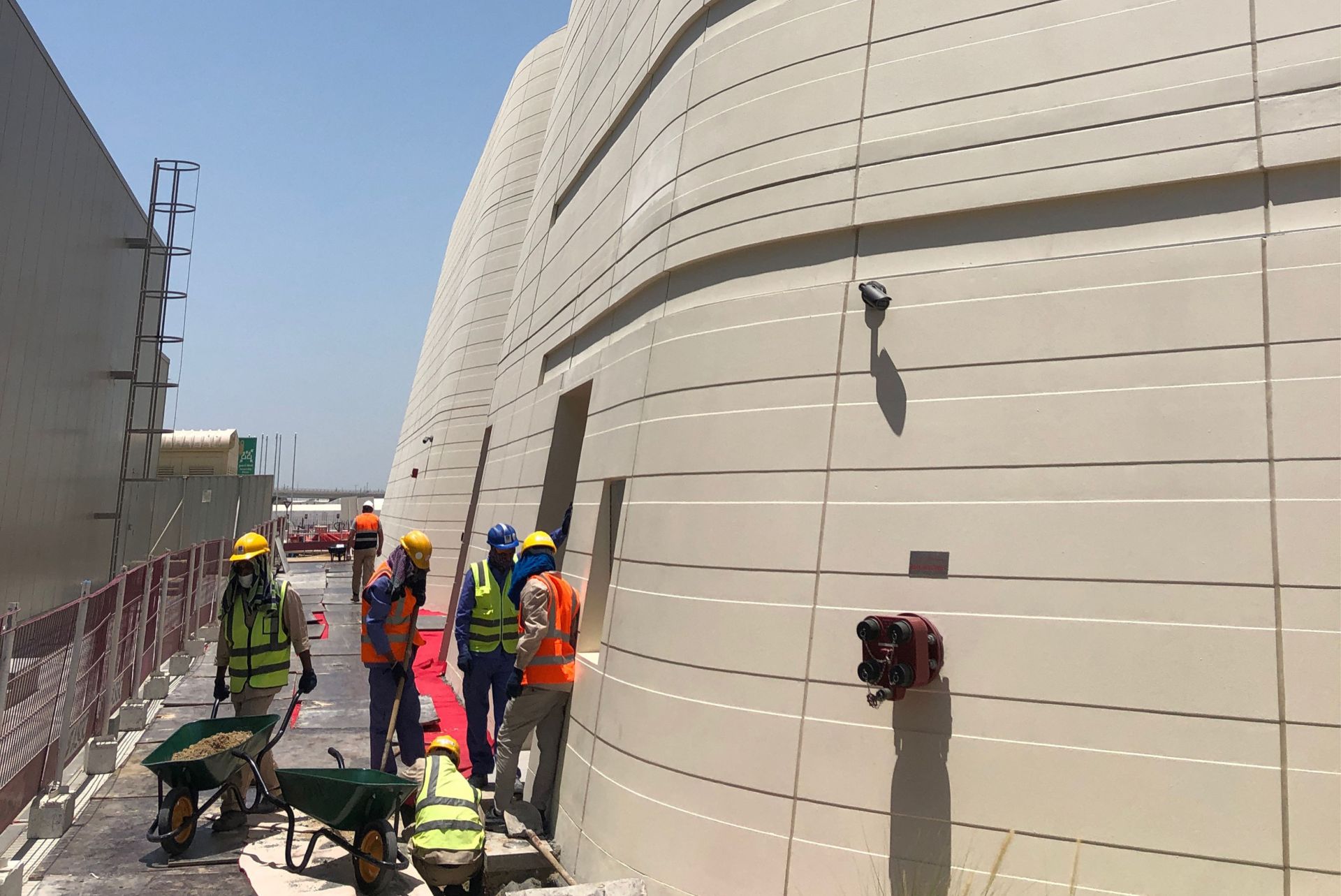

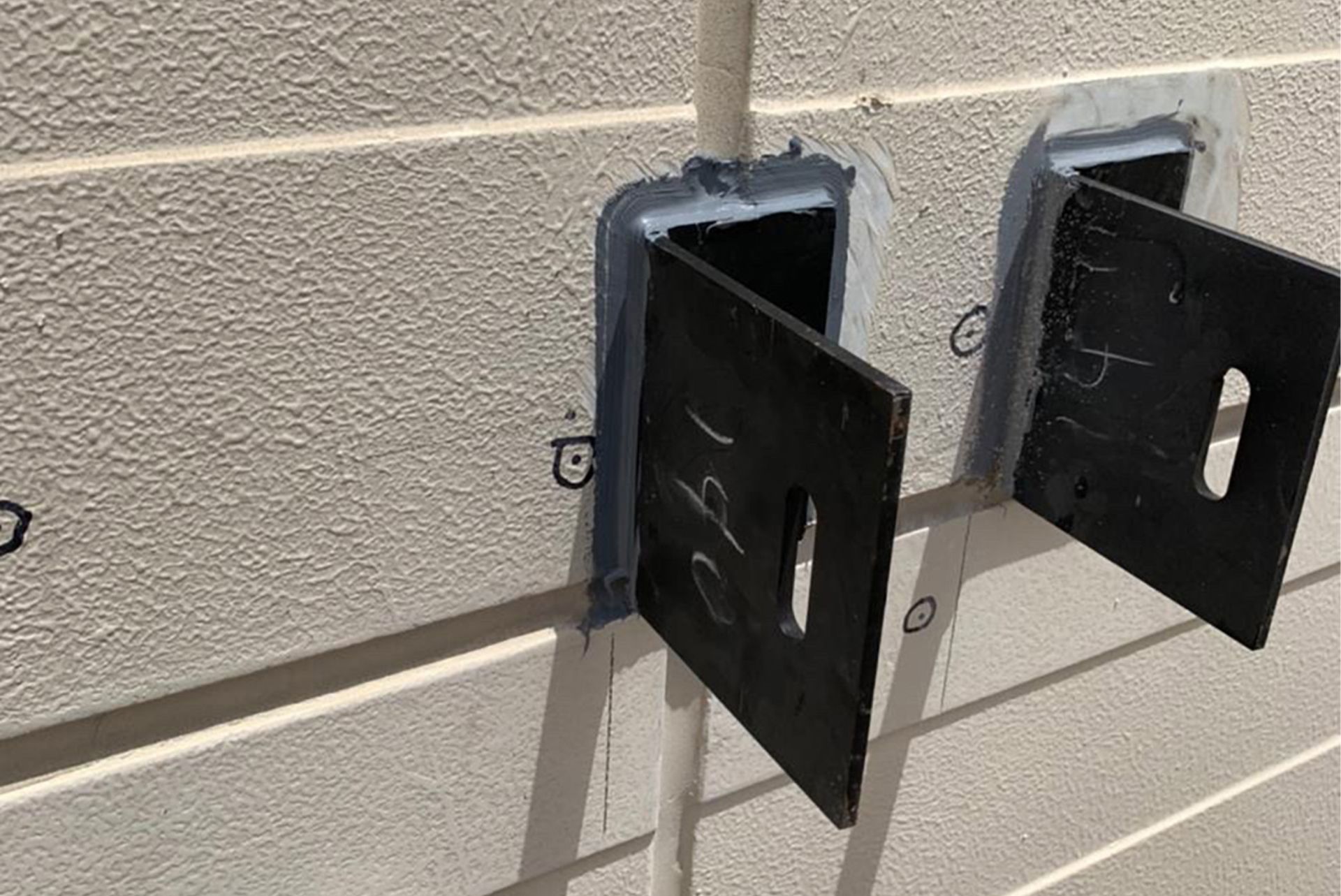

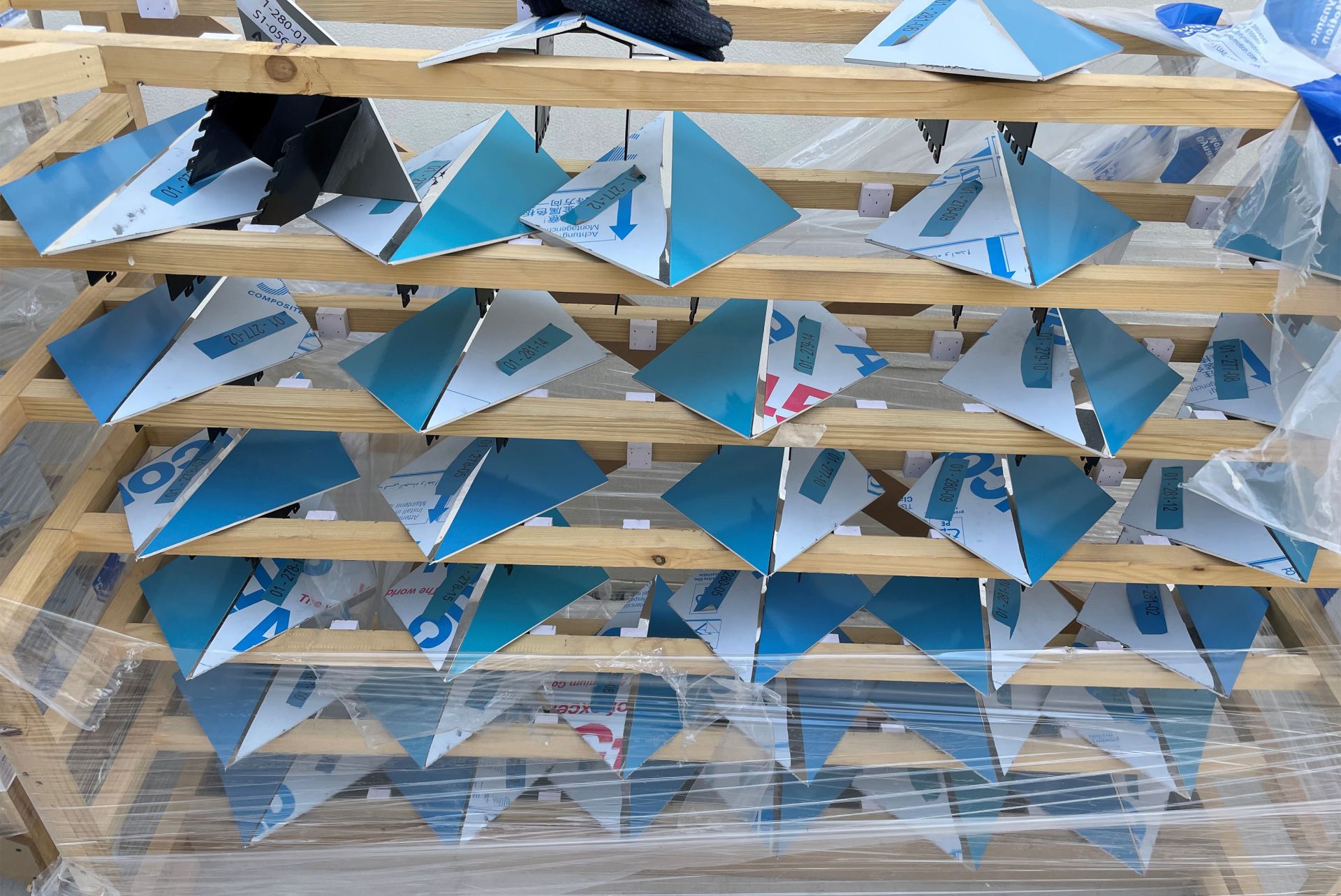

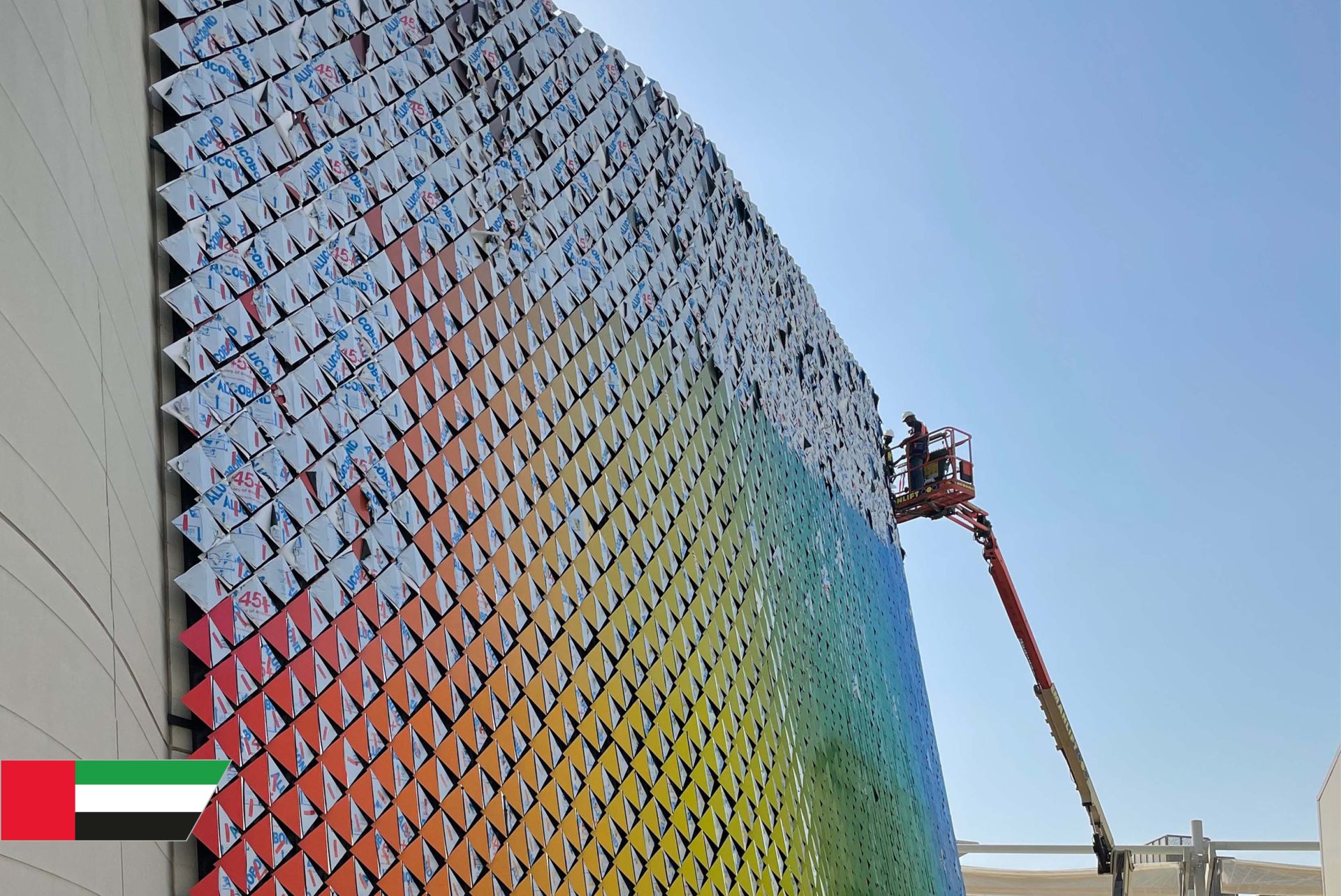

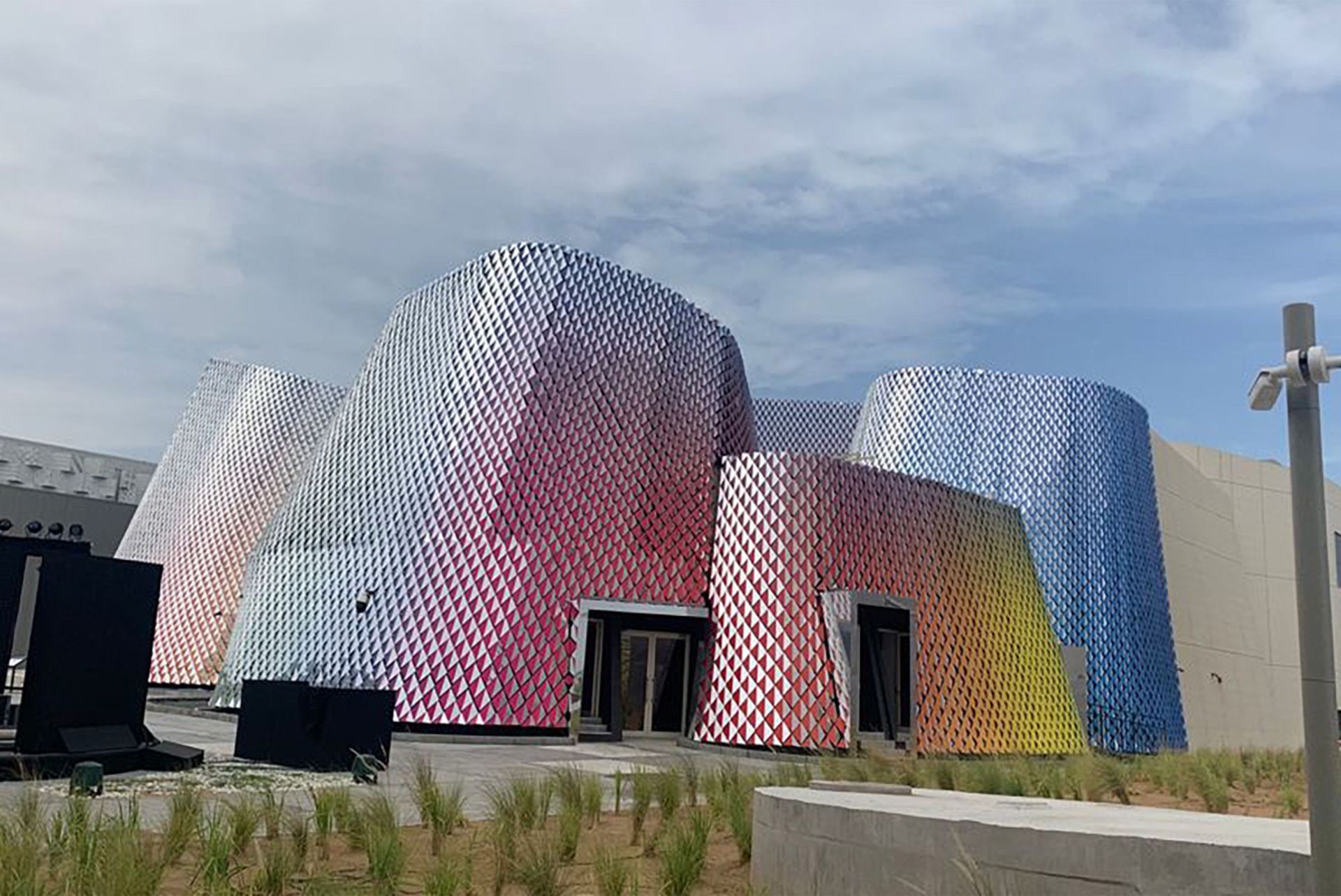

Bonding of 28,000 brackets for aluminum rhombs at the Pakistan Pavilion at the Expo 2020 in DUBAI

Use of several WEICON products at the pavilion
Cleaning the aluminium rhombs with WEICON Cleaner Spray S

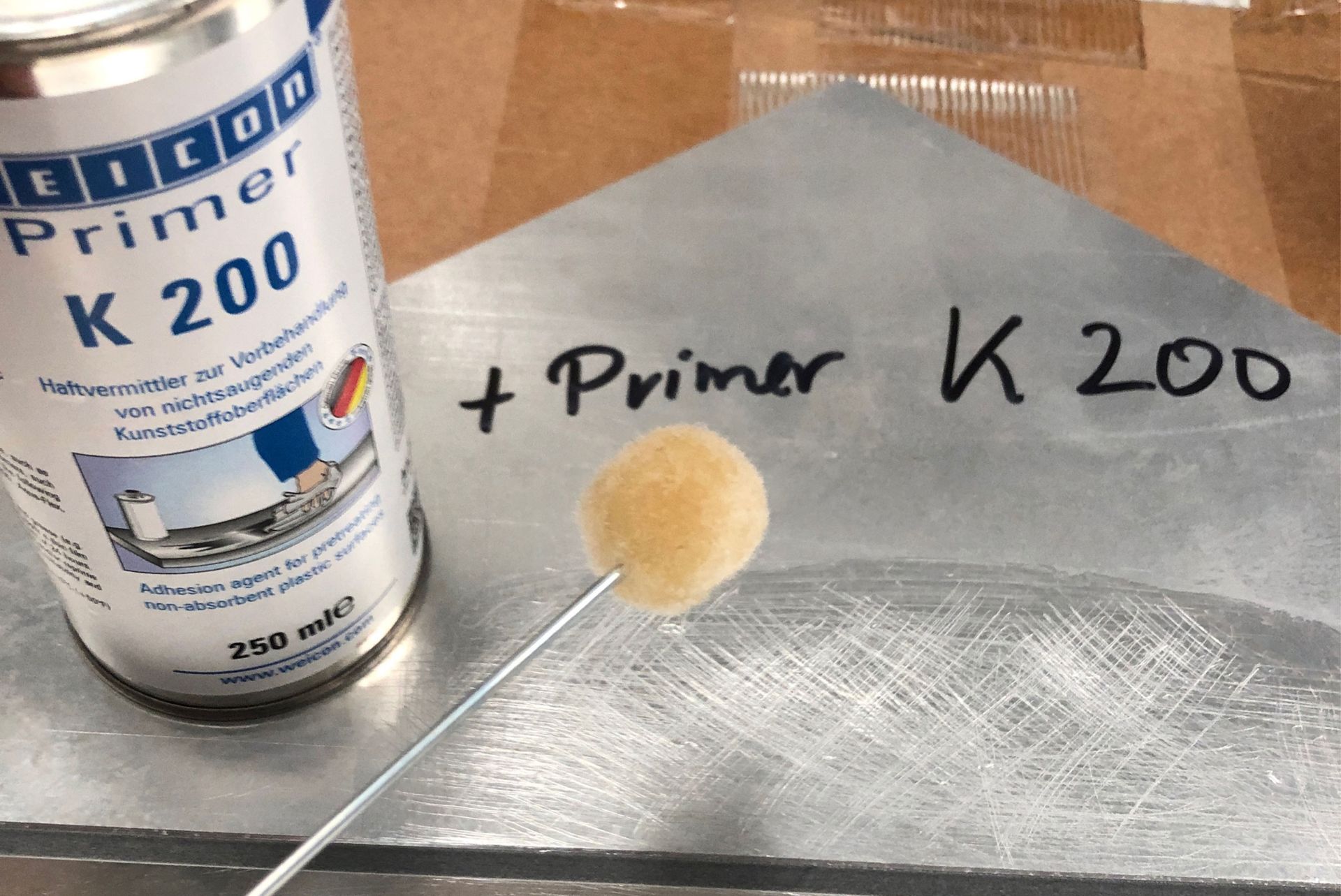

Application of WEICON Primer K 200 for better cross-linking of the surface
Bonding the 28,000 aluminium rhombs with WEICON Flex 310 M^® Classic
In the adhesion test, the material was damaged rather than the adhesive

Advantage of our solution:

✓ Adhesive bonding instead of screws

✓ Fast and visually appealing solution that meets the highest design requirements

✓ Implementation of a total of 28,000 bondings

✓ Processing at high outside temperatures of 40 °C possible

Bonding of 28,000 brackets for aluminium rhombs at the Pakistan Pavilion at the Expo 2020

Bonding of 28,000 brackets for aluminium rhombs at the Pakistan Pavilion at the Expo 2020_1

Bonding of 28,000 brackets for aluminium rhombs at the Pakistan Pavilion at the Expo 2020_2

Bonding of 28,000 brackets for aluminium rhombs at the Pakistan Pavilion at the Expo 2020_3

Bonding of 28,000 brackets for aluminium rhombs at the Pakistan Pavilion at the Expo 2020_4

Bonding of 28,000 brackets for aluminium rhombs at the Pakistan Pavilion at the Expo 2020_5

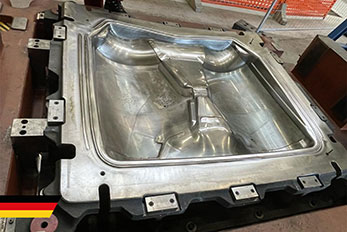

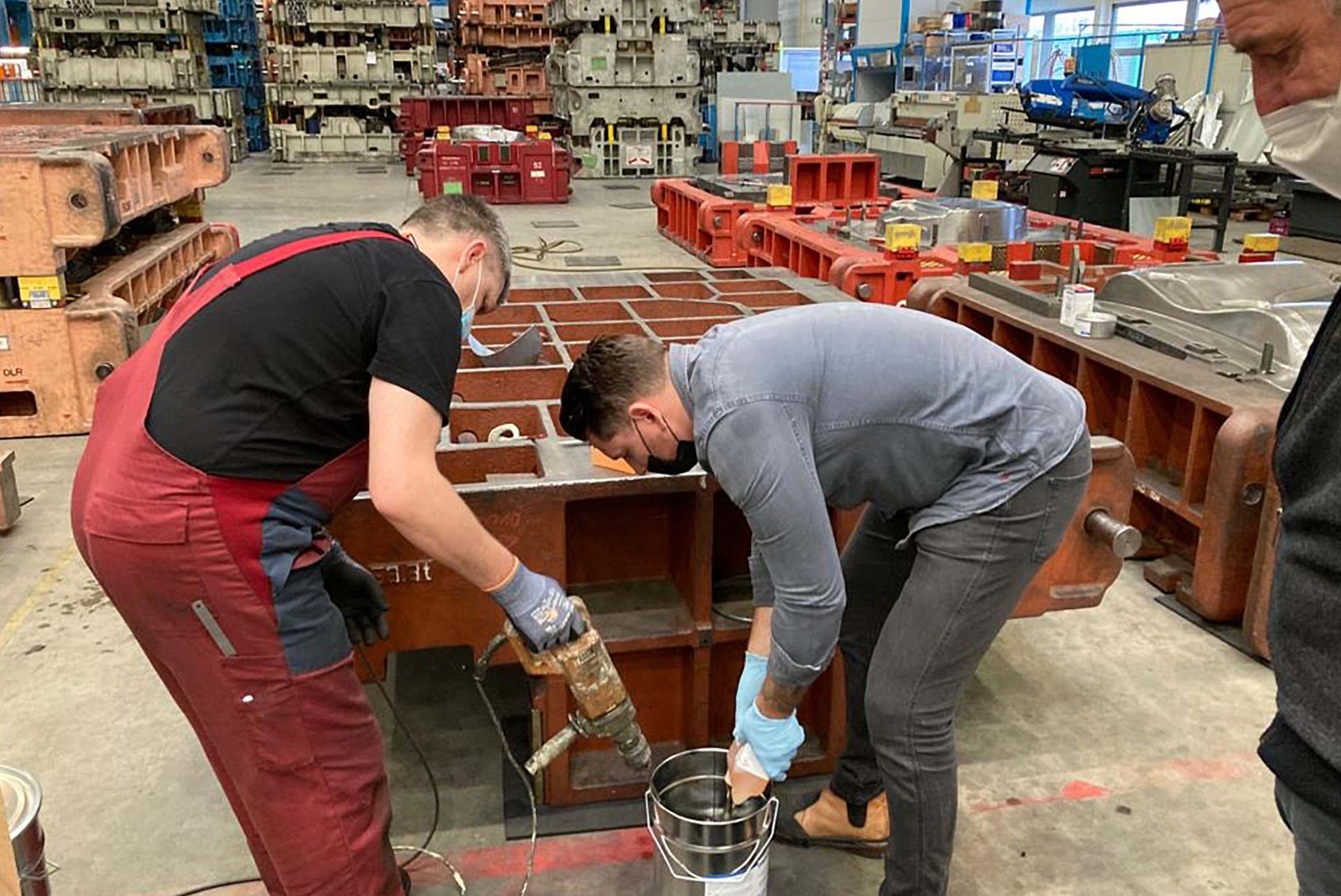

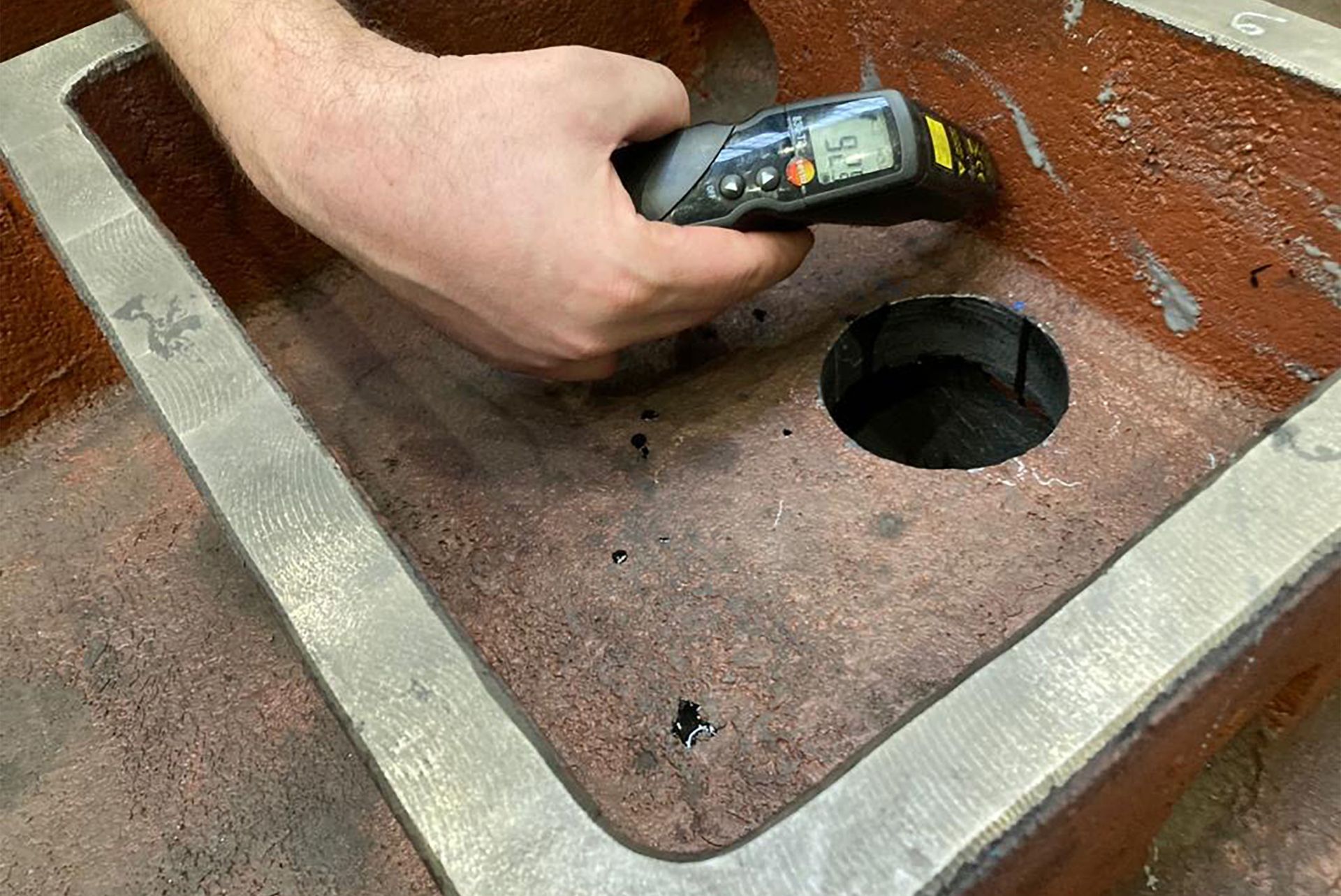

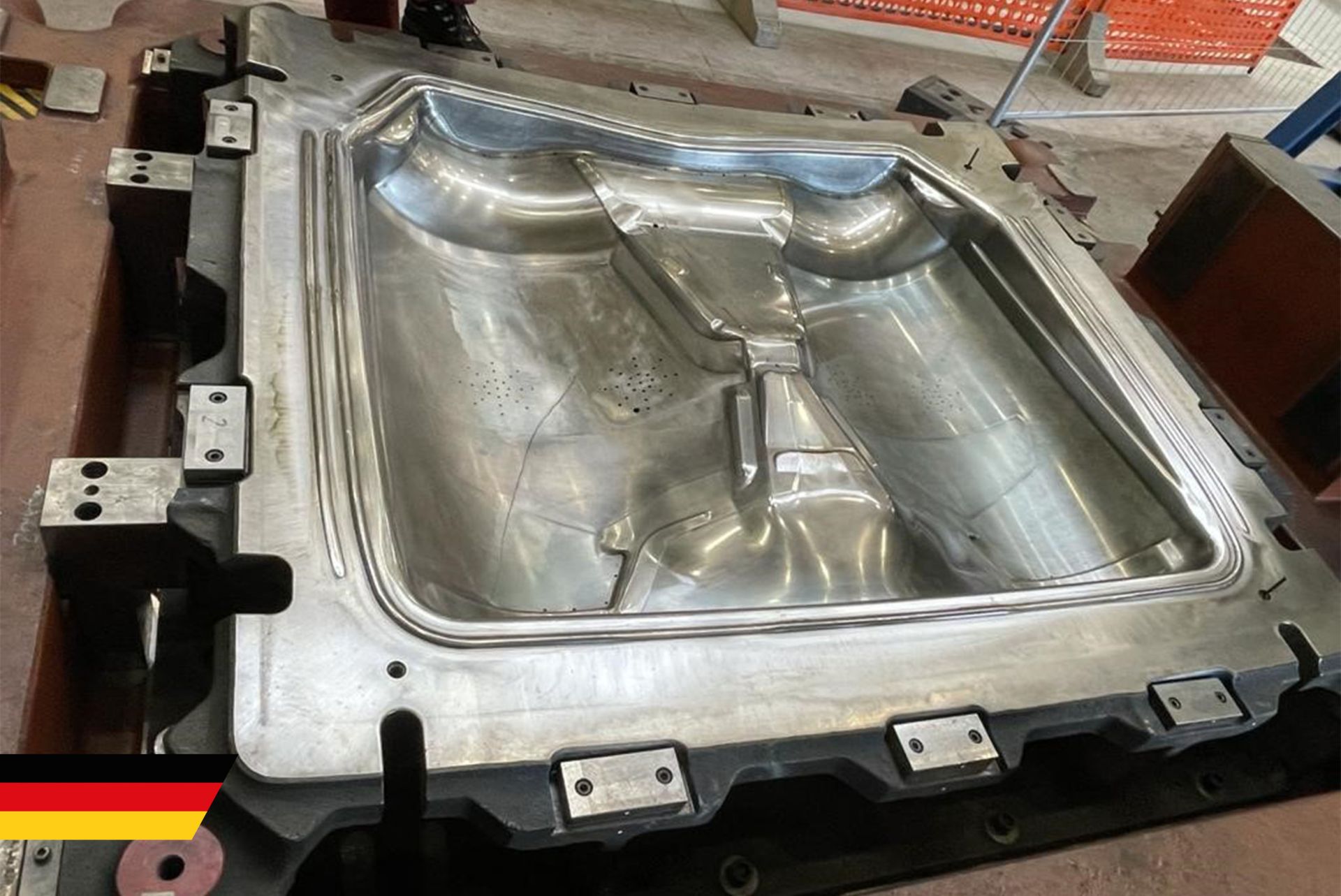

Crack repair of a moulding die for bumpers in the automotive industry

Crack repair of a moulding die for bumpers in the automotive industry_1

Crack repair of a moulding die for bumpers in the automotive industry_2

Crack repair of a moulding die for bumpers in the automotive industry

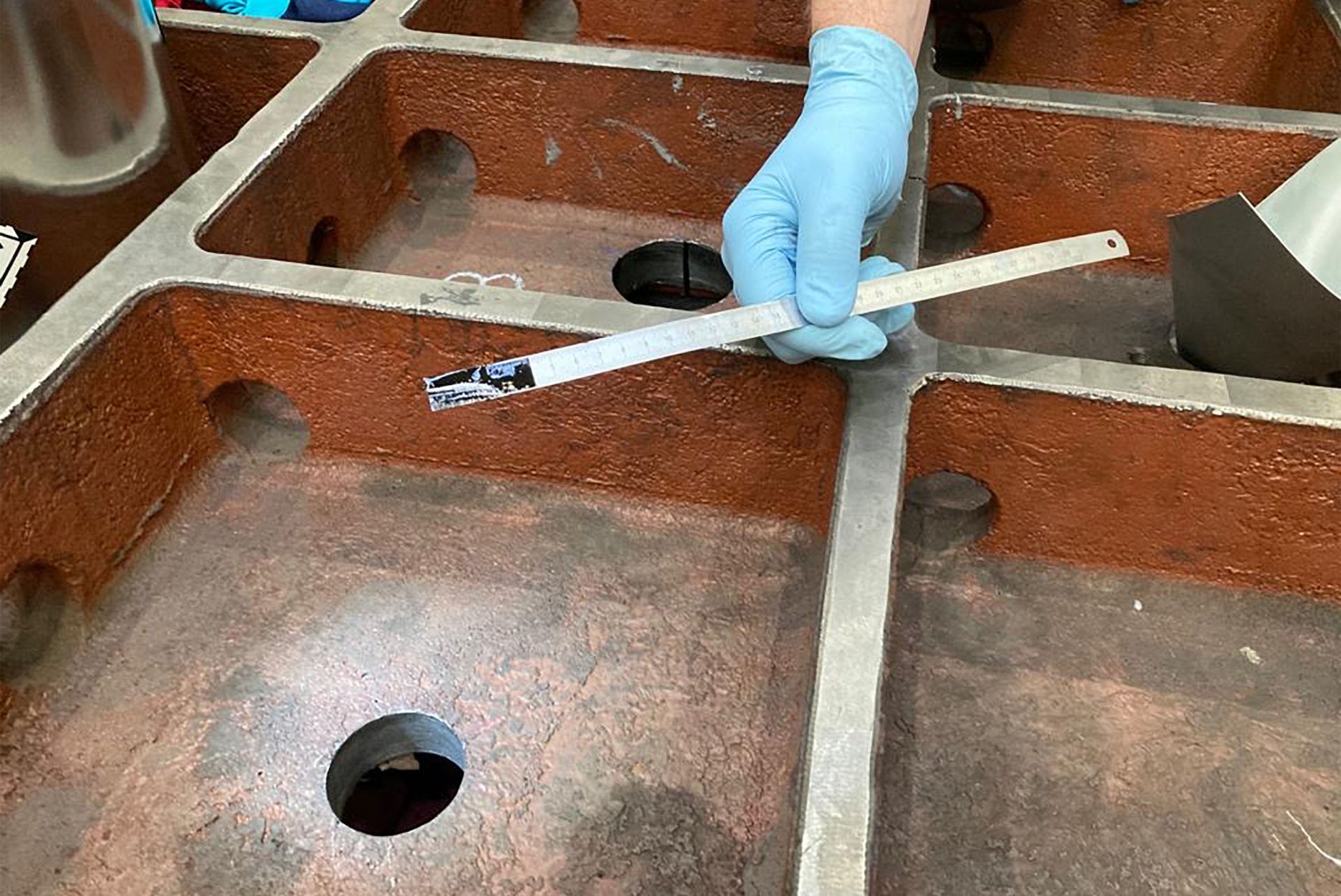

Cleaning of the rear honeycomb structure in the damaged area with WEICON Cleaner Spray S
Use of WEICON Crack Testing Agent to locate cracks

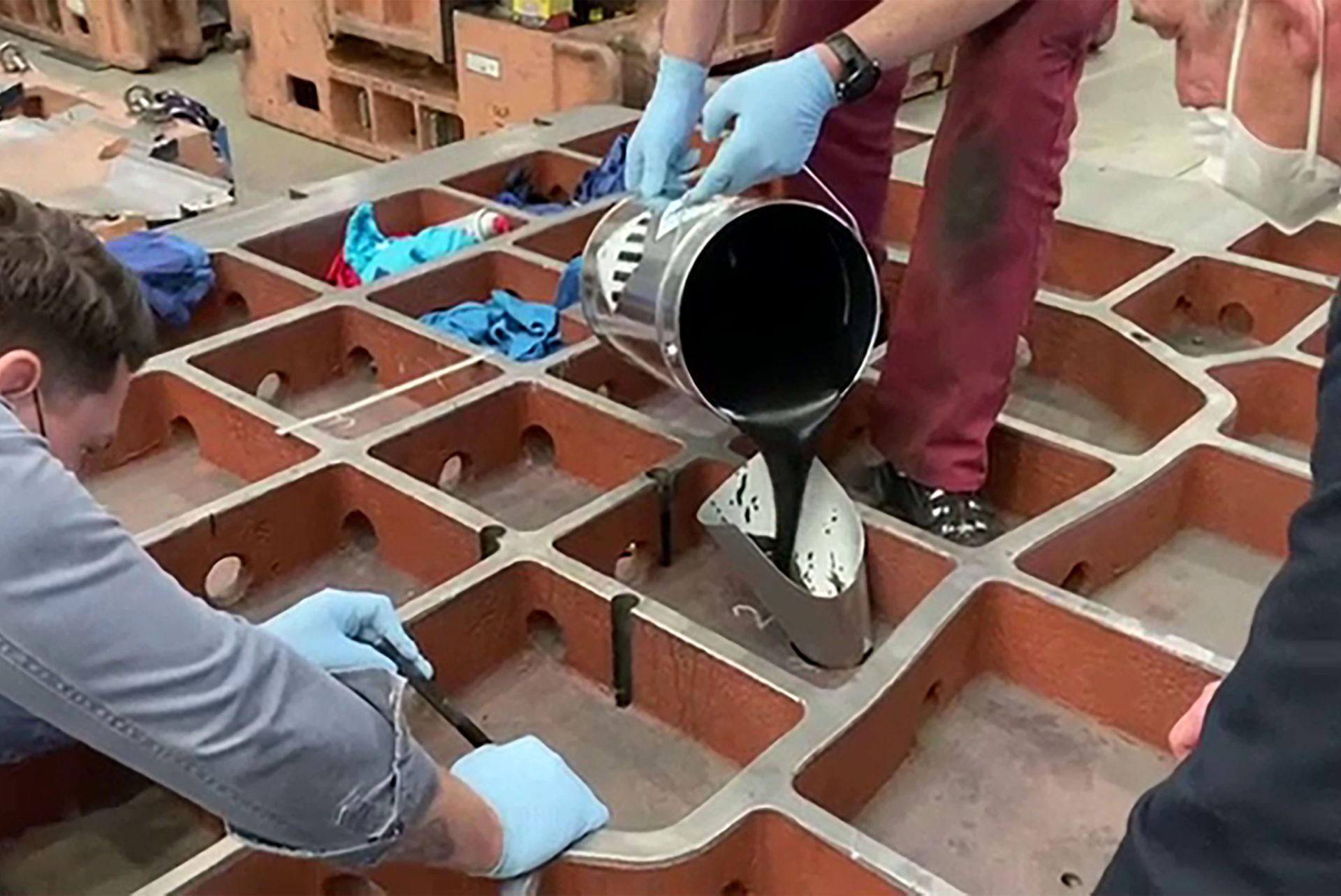

Pouring WEICON WR into the honeycombs to fill the cavities of the die
Material grouting of 235 kg WEICON WR was carried out over the period of one week (due to exothermic reaction)

Advantage of our solution:

✓ Mould now withstands future pressure and further cracking is prevented

✓ Economic repair to ensure final production of the batch

✓ Cost savings of approx. 100,000 € for a new die

✓ Another 8,000 to 10,000 pressings could be made to complete production

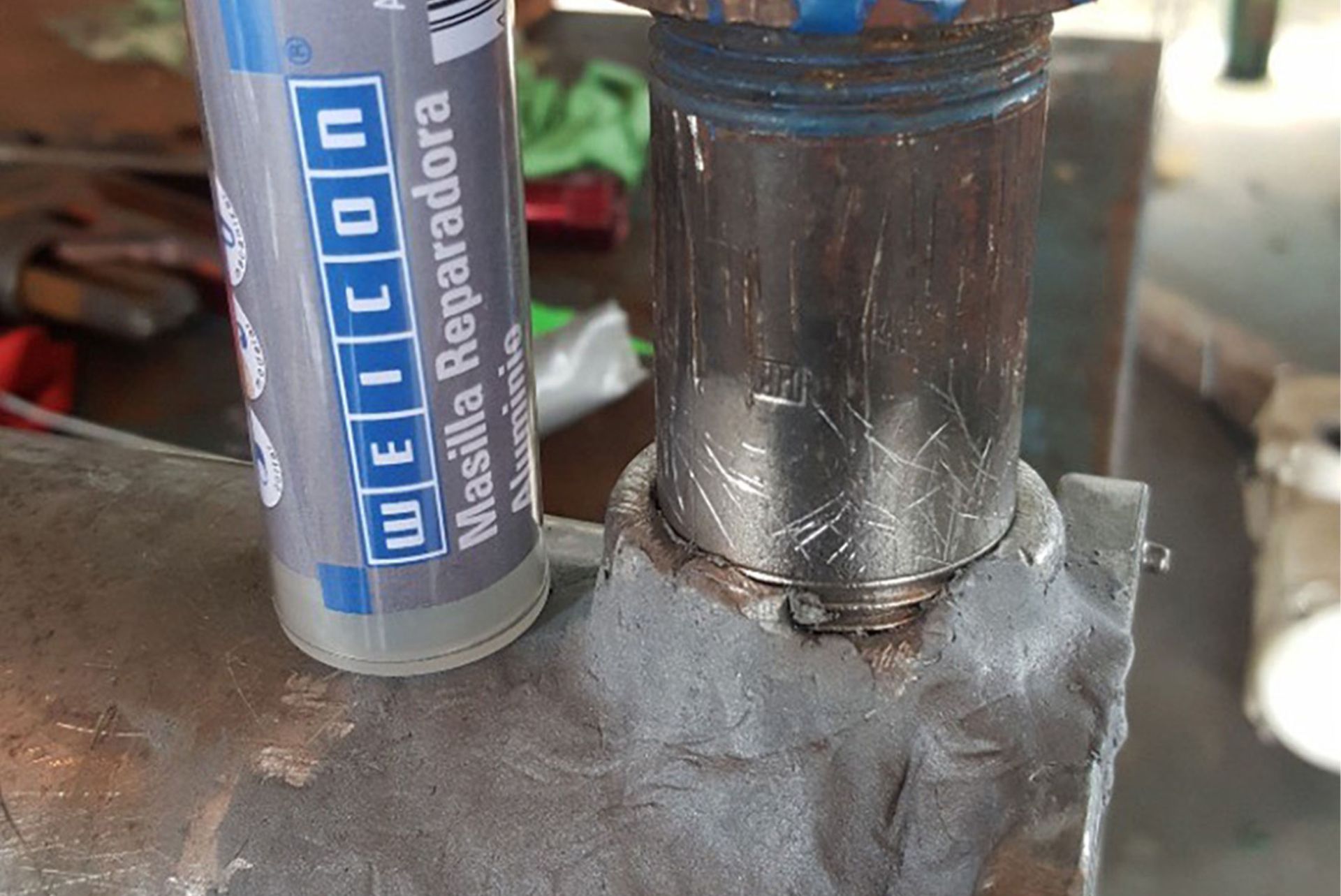

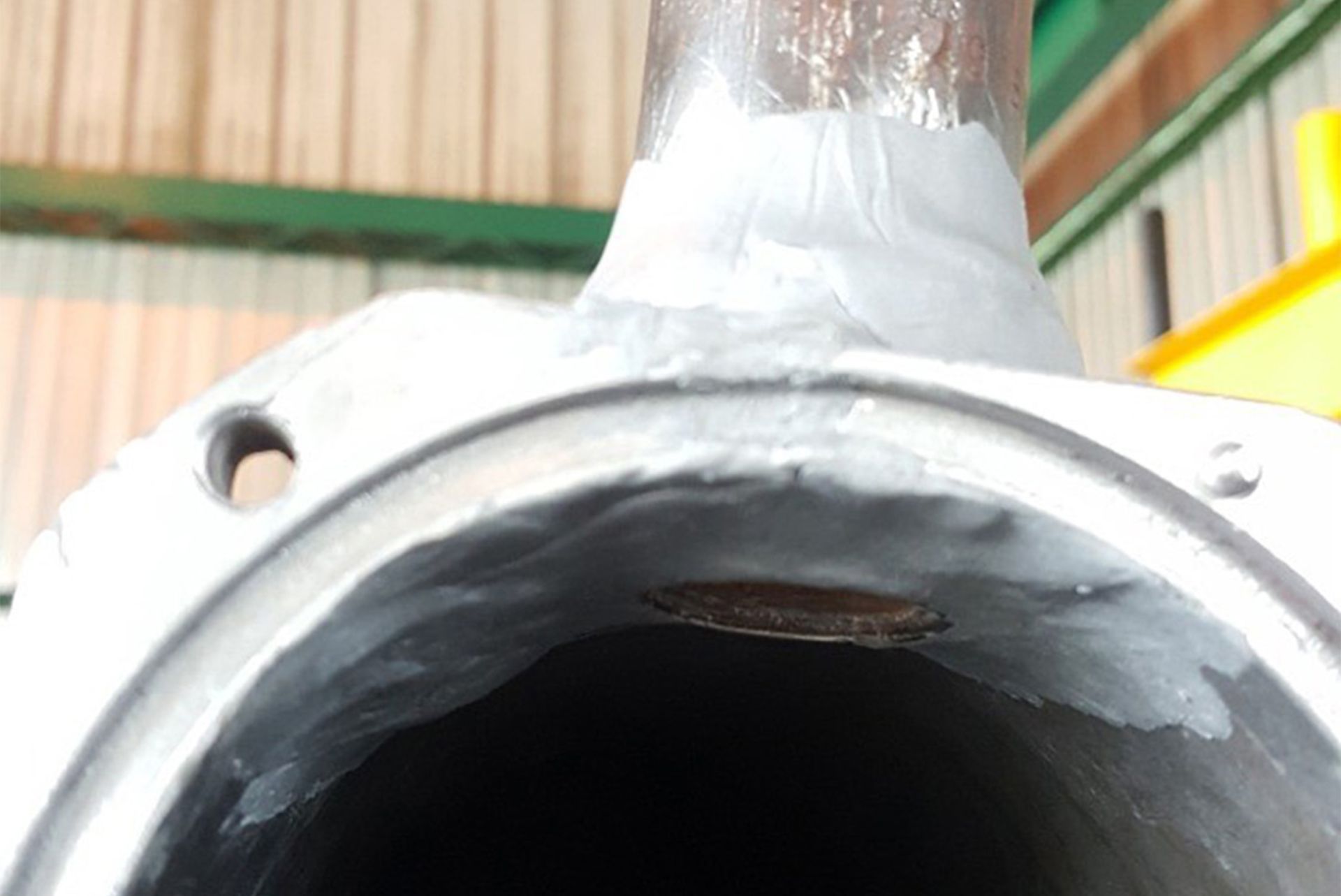

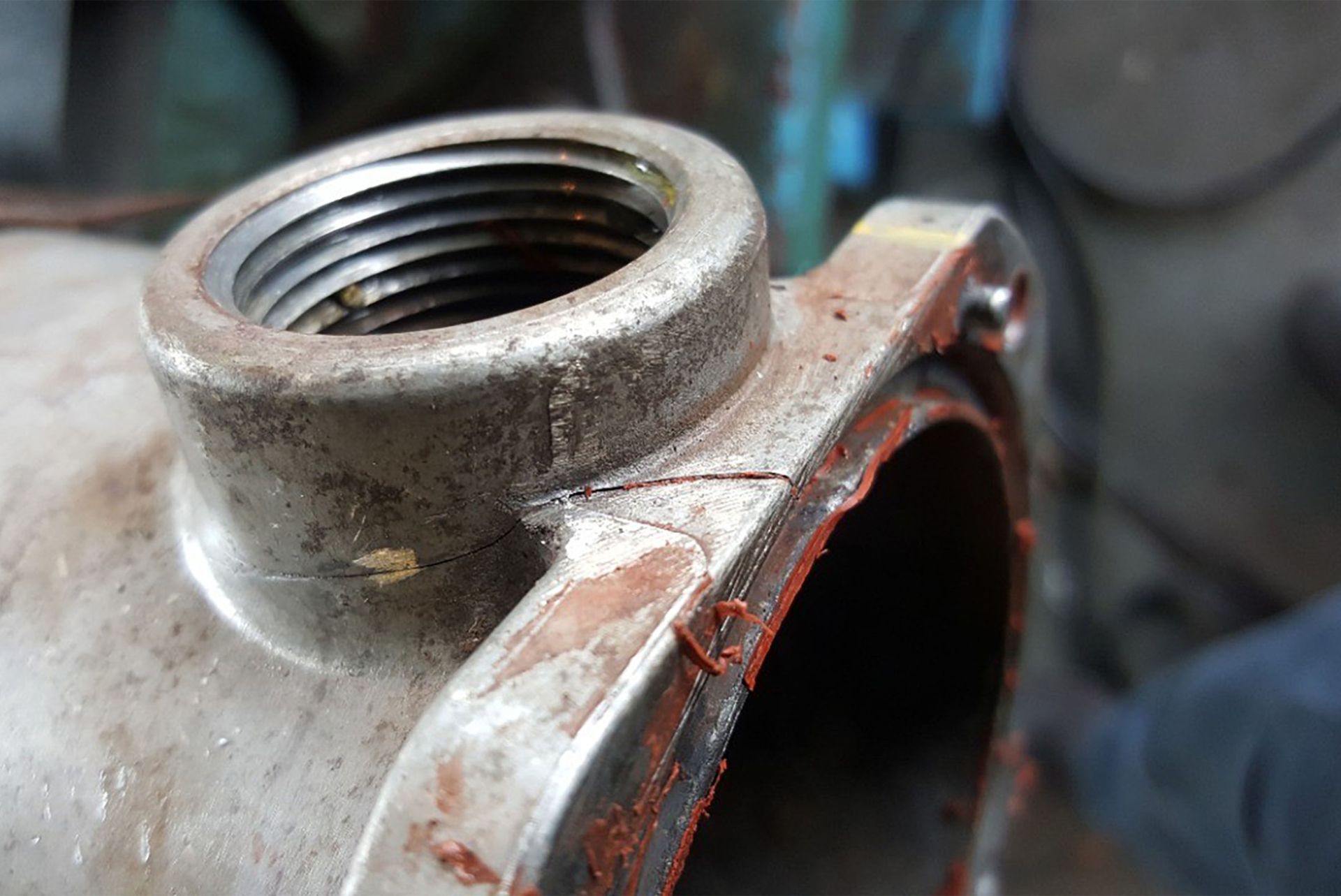

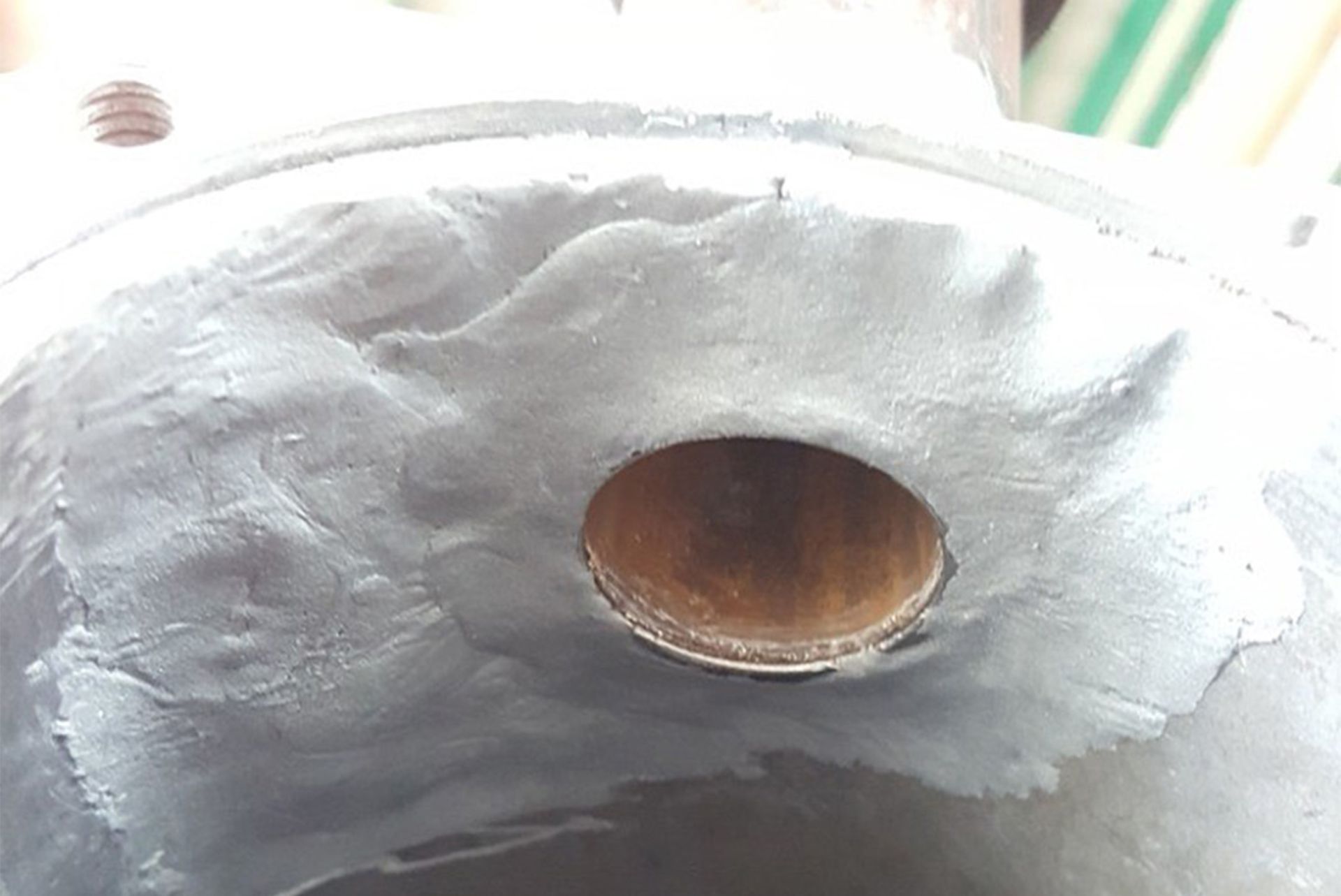

Repair of a leakage on a cooler

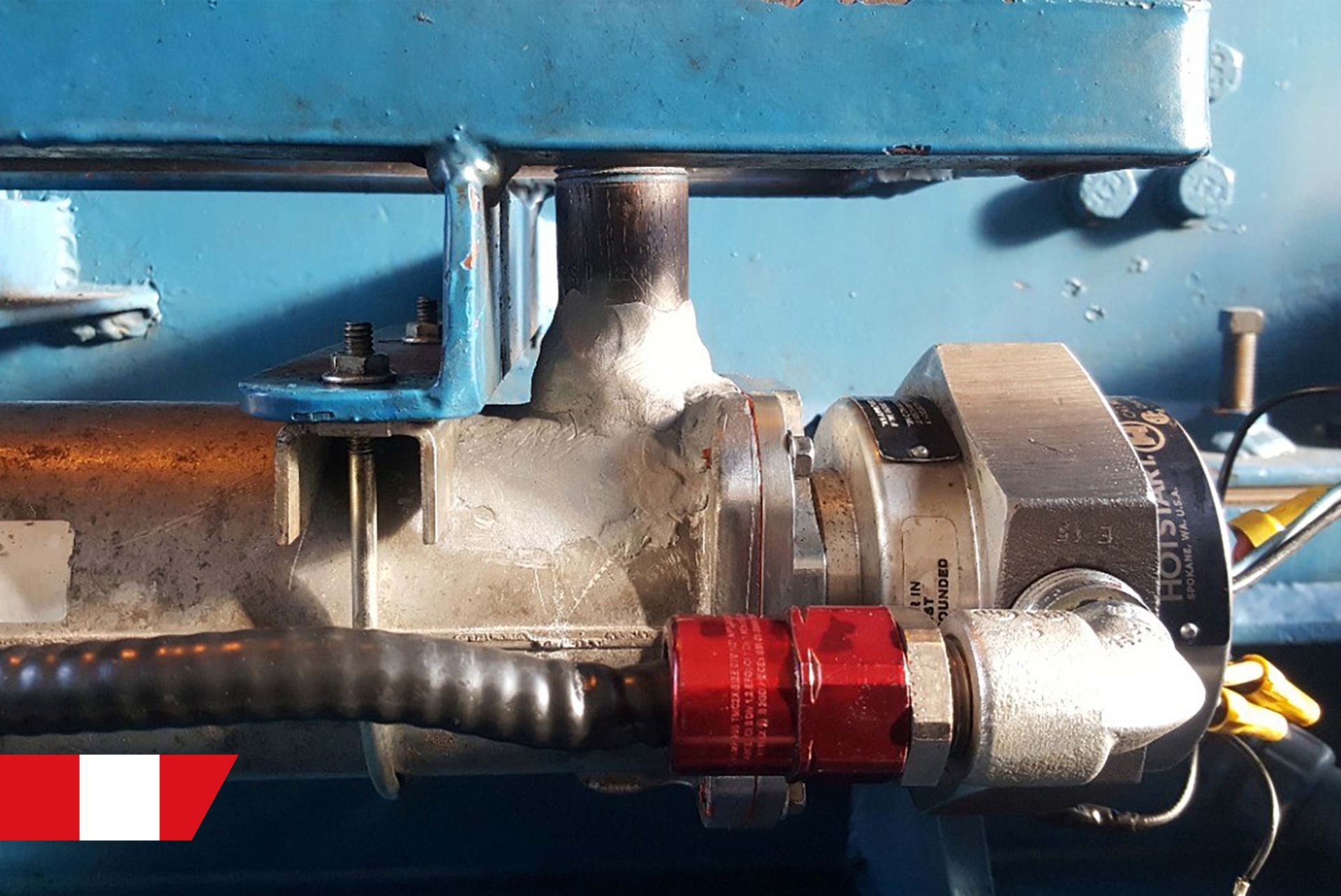

Sealing the leakage on the cooler of a caterpillar
Cleaning the surfaces with WEICON Cleaner Spray S

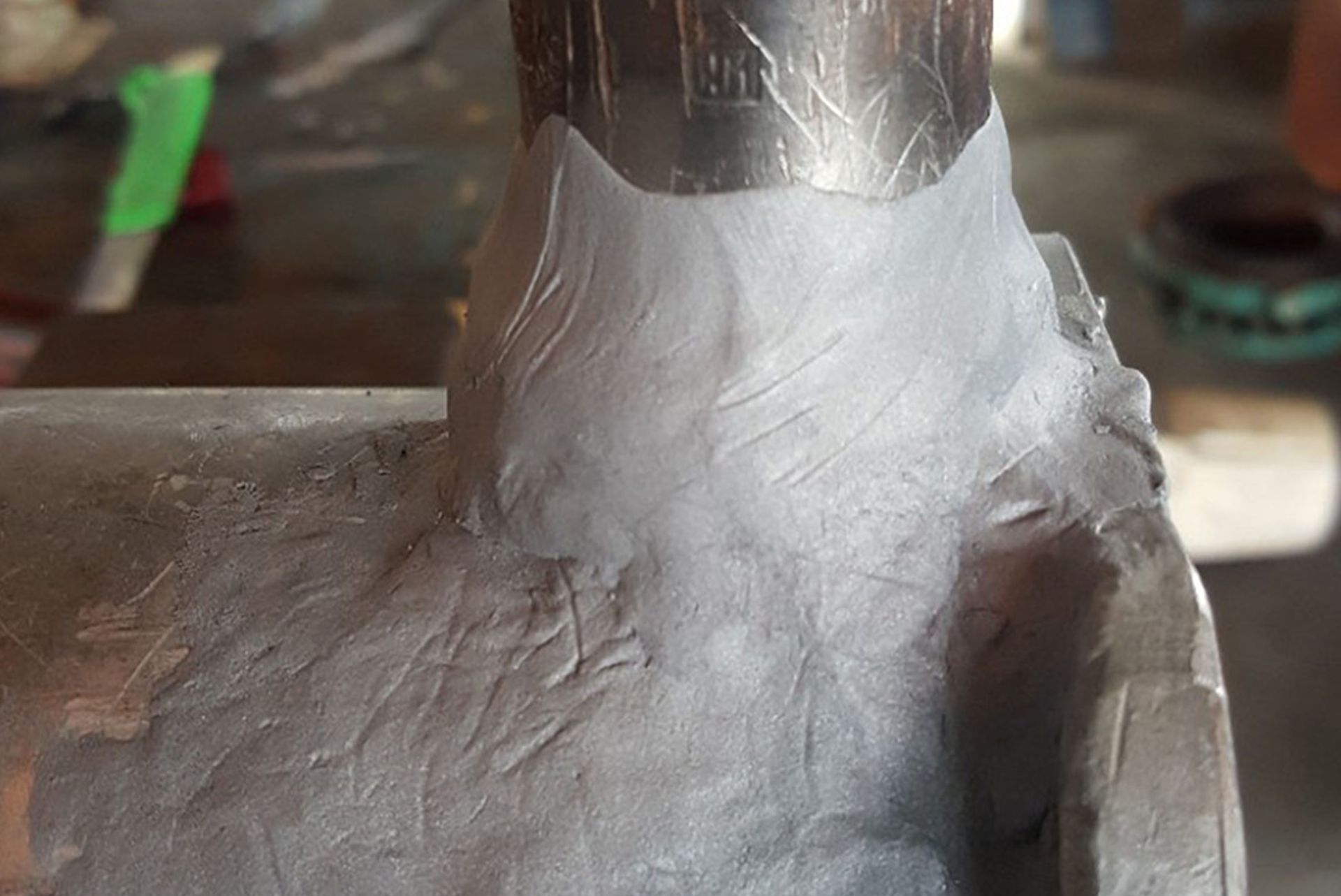

Sealing with WEICON Repair Stick Aluminium

Advantage of our solution:

✓ The service life is significantly extended by the use of the Repair Stick Aluminium

✓ The component does not need to be replaced

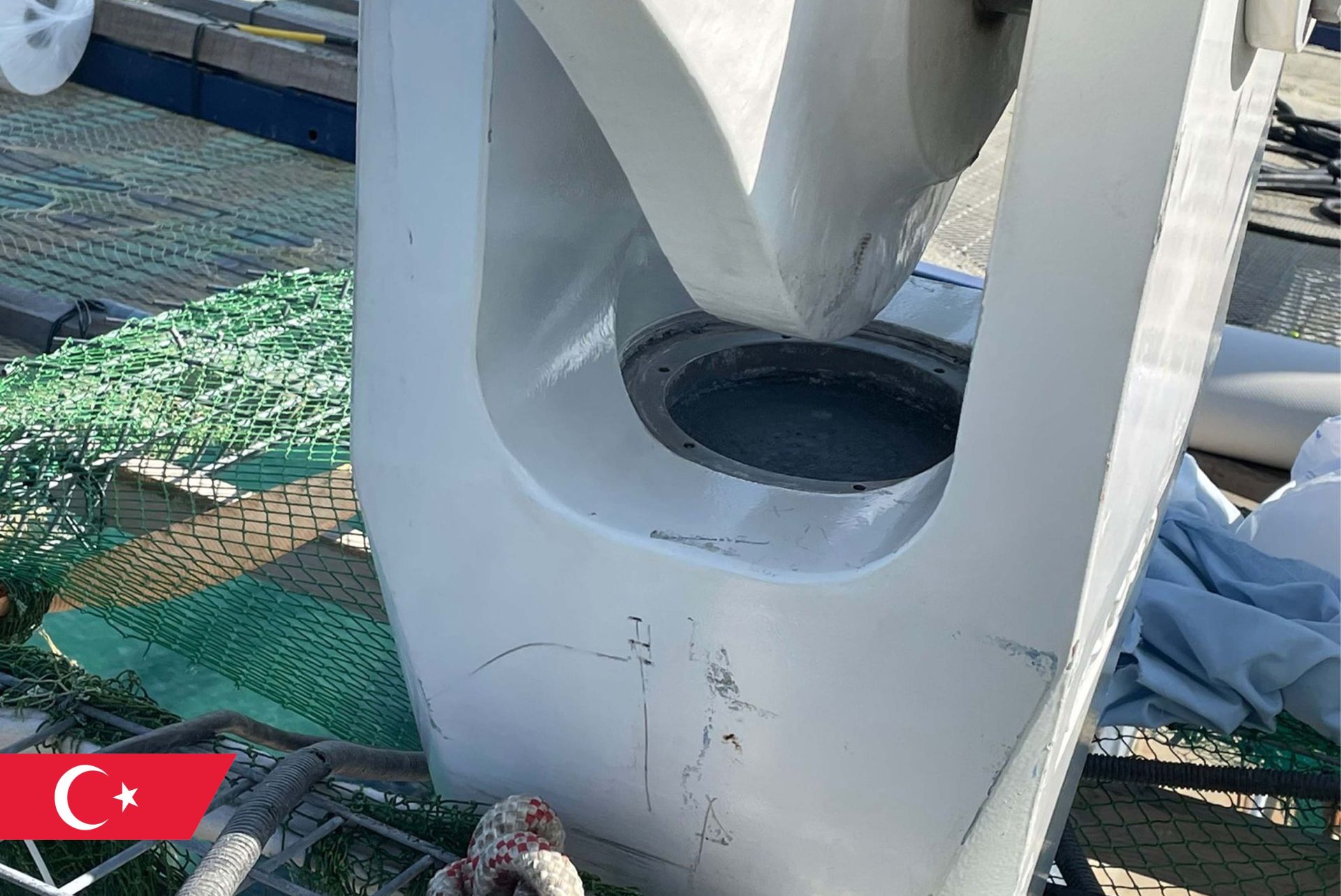

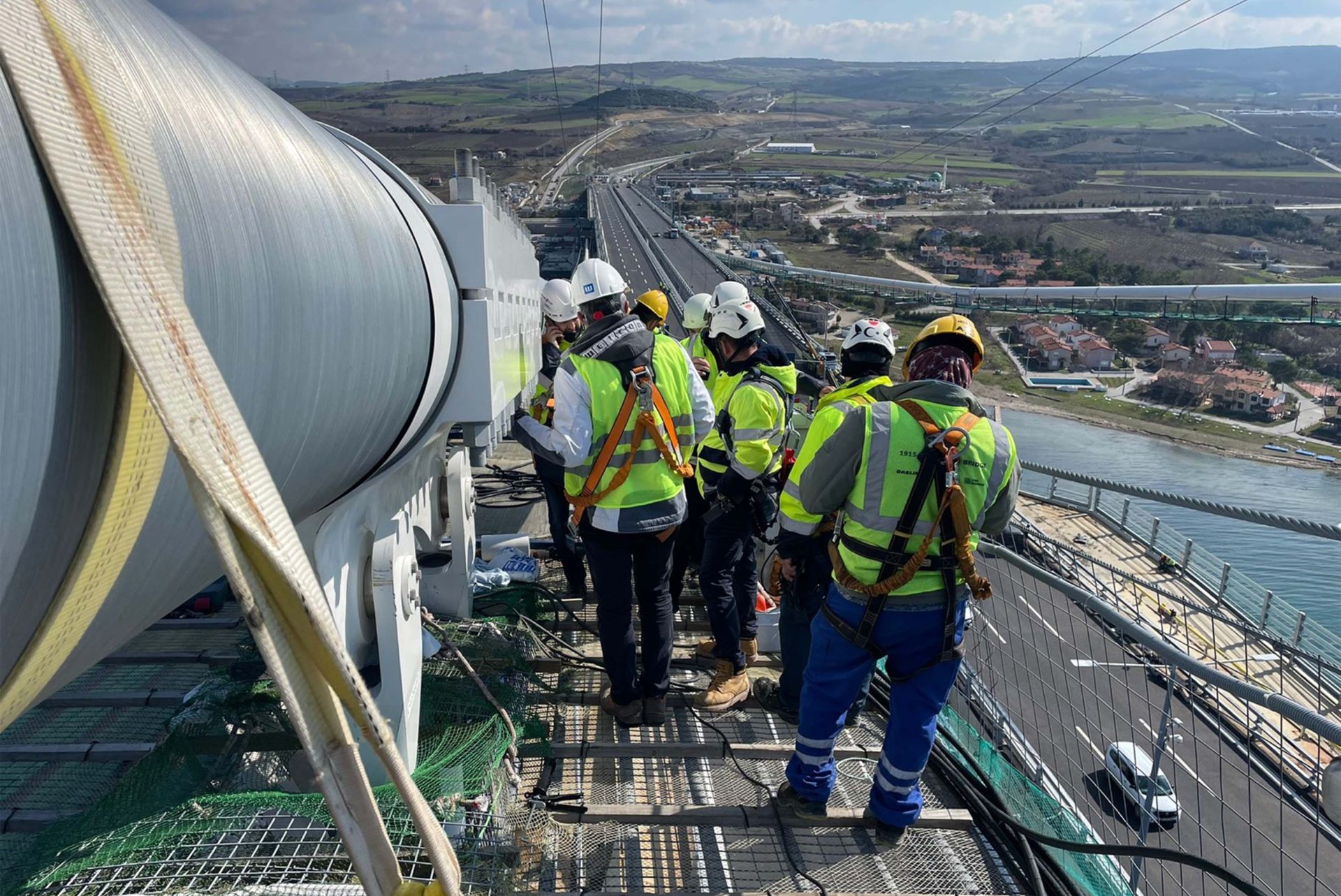

Bonding sight glasses to monitor the suspension cables on the Çanakkale 1915 Bridge

Bonding sight glasses to monitor the suspension cables on the Çanakkale 1915 Bridge_1

Bonding sight glasses to monitor the suspension cables on the Çanakkale 1915 Bridge

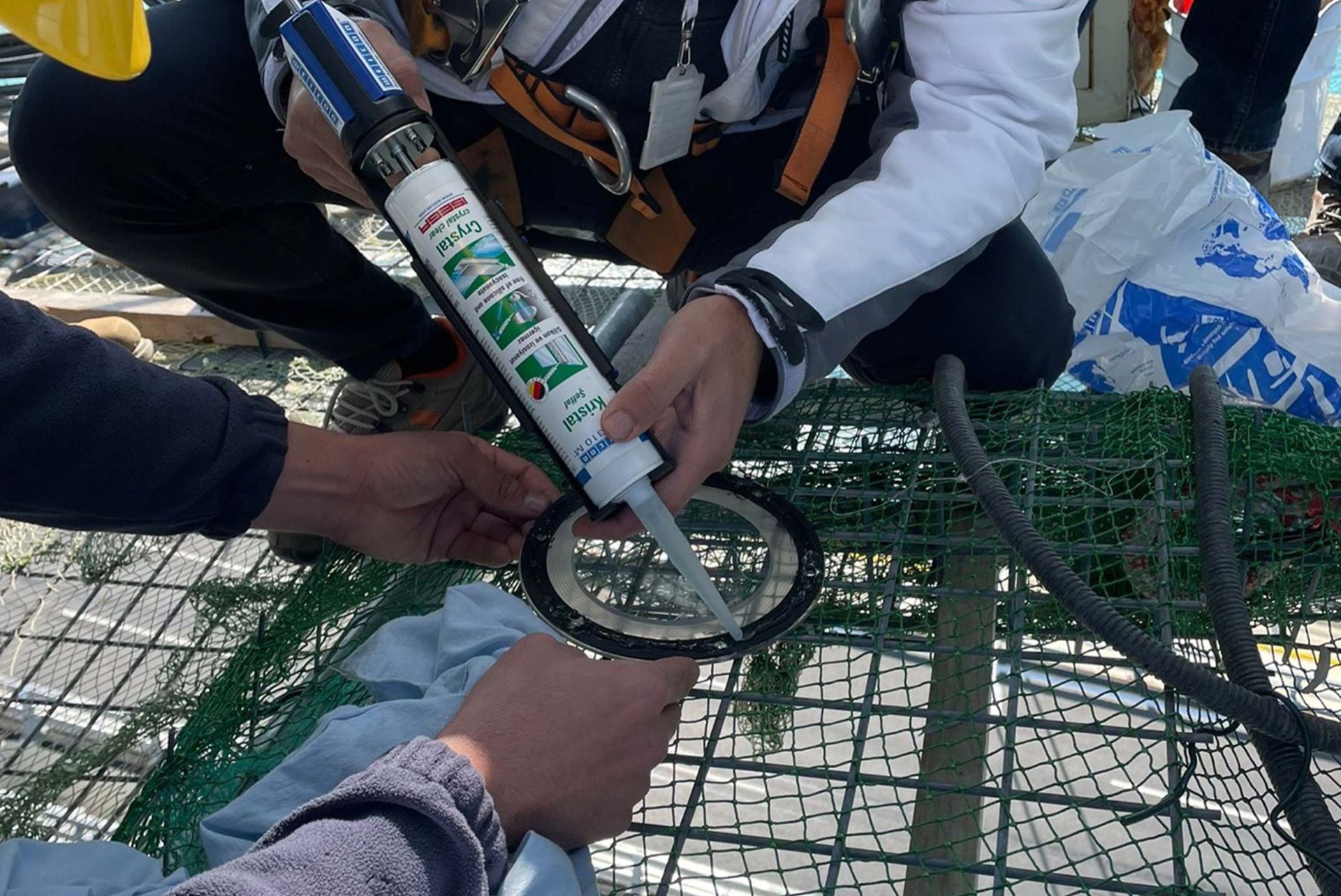

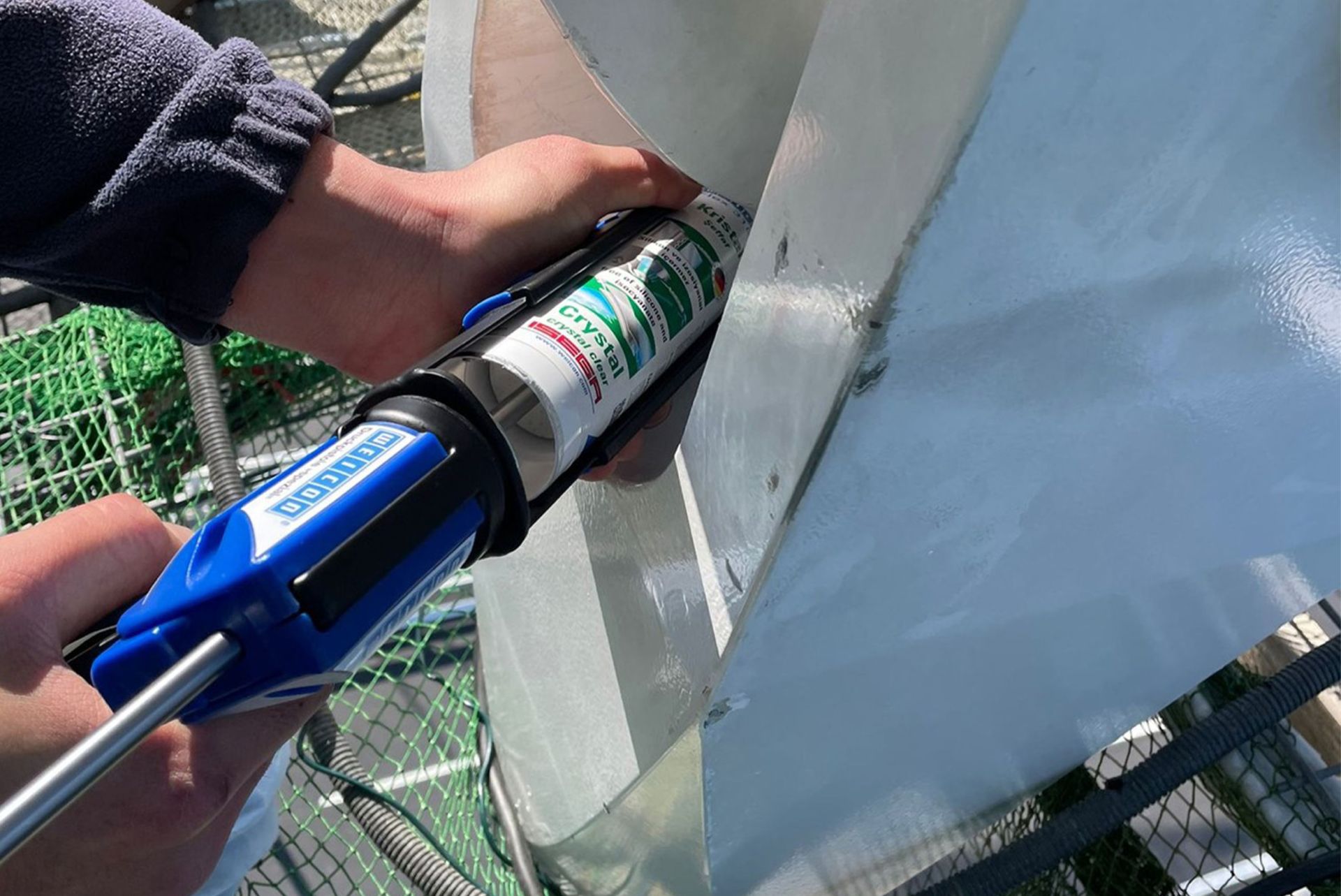

Sight glasses are sealed on the cable bulbs of the Çanakkale 1915 bridge
The surfaces were first dried and cleaned with WEICON Surface Cleaner
Subsequent sealing with Flex 310 M^® Crystal

Advantage of our solution:

✓ Durable transparent sealing against rainwater

✓ High resistance to weathering, especially with regard to temperature changes

✓ The requirement of a silicone-free material is met by Flex 310 M® Crystal

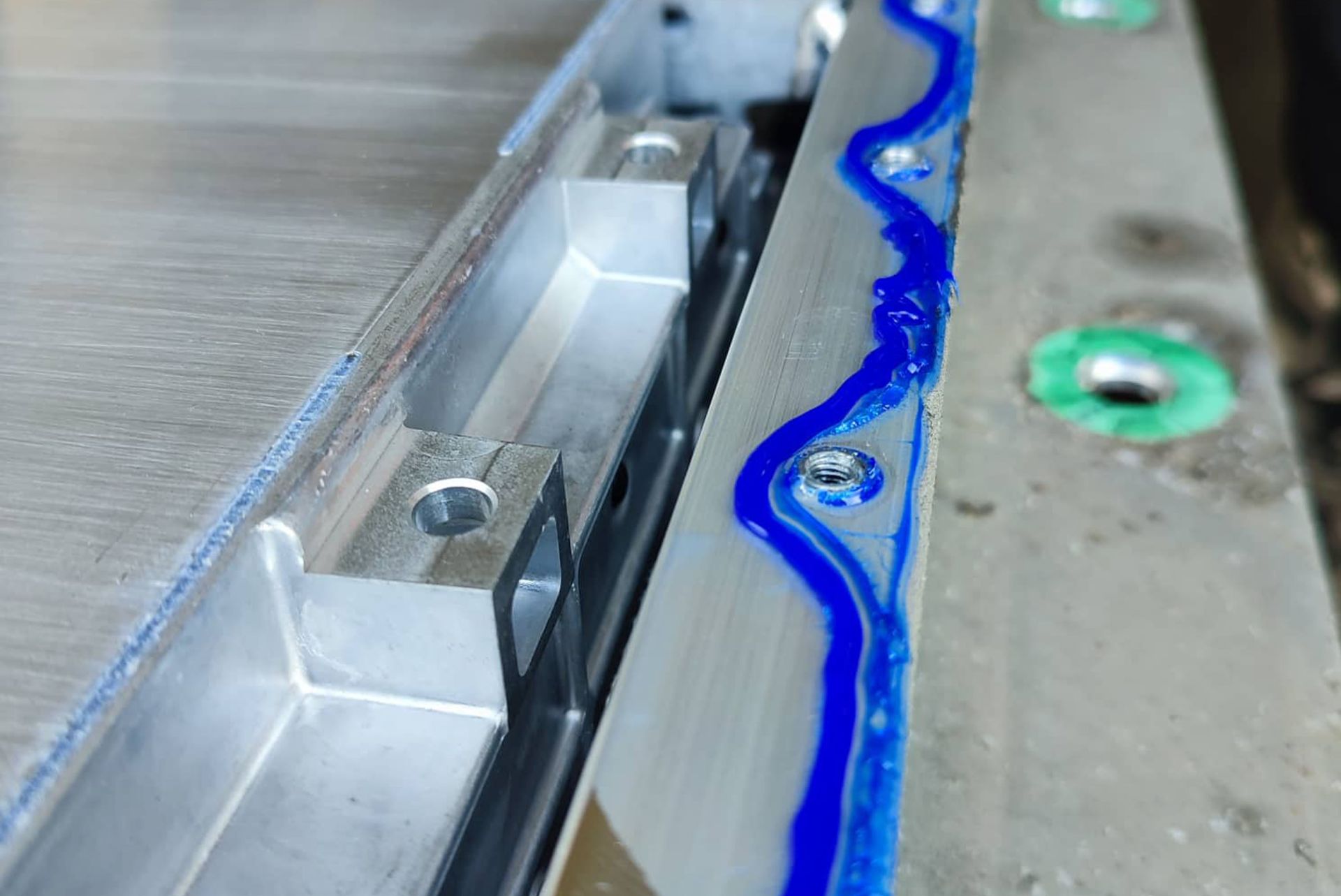

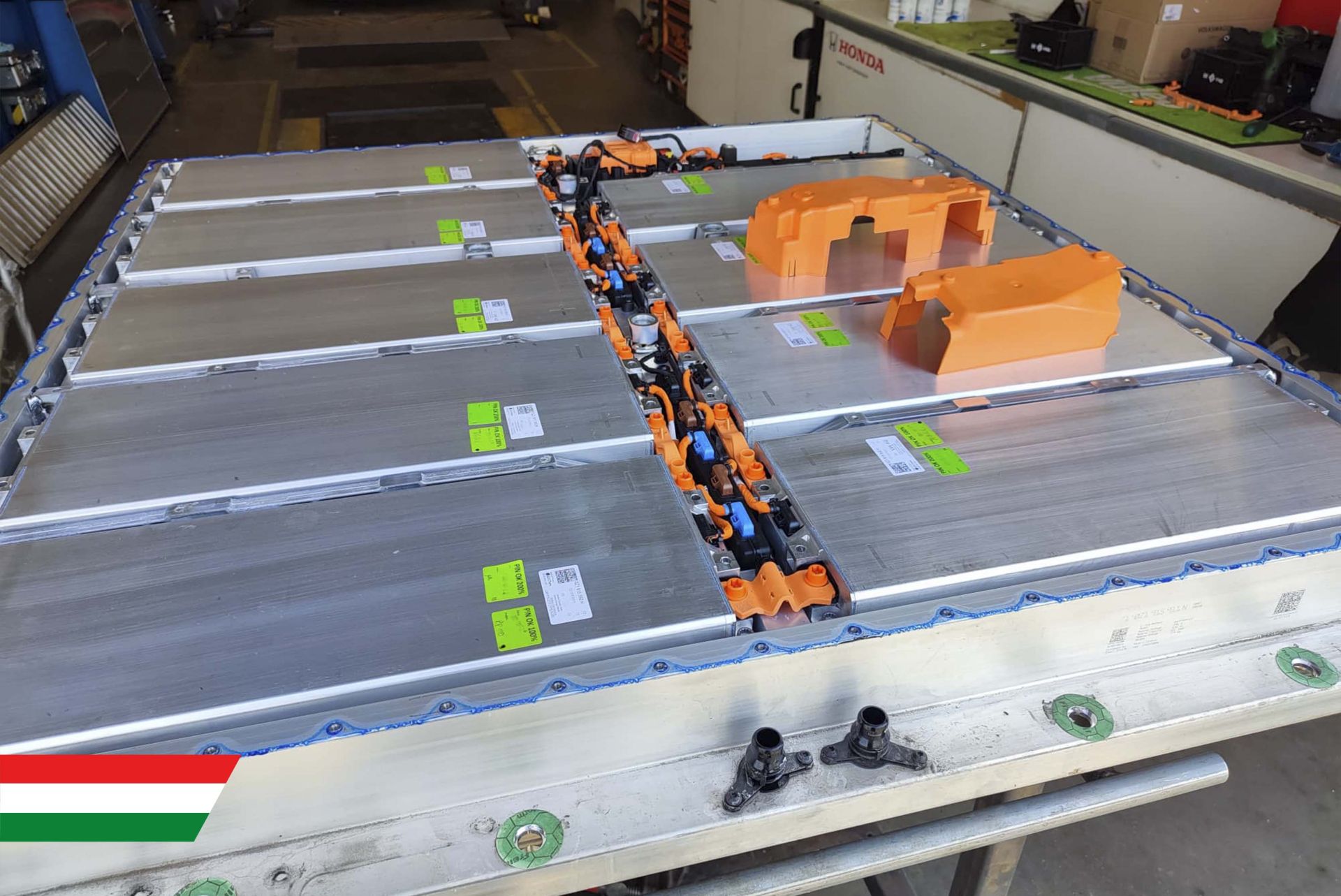

Sealing of battery packs on electric cars

Cleaning with WEICON Surface Cleaner

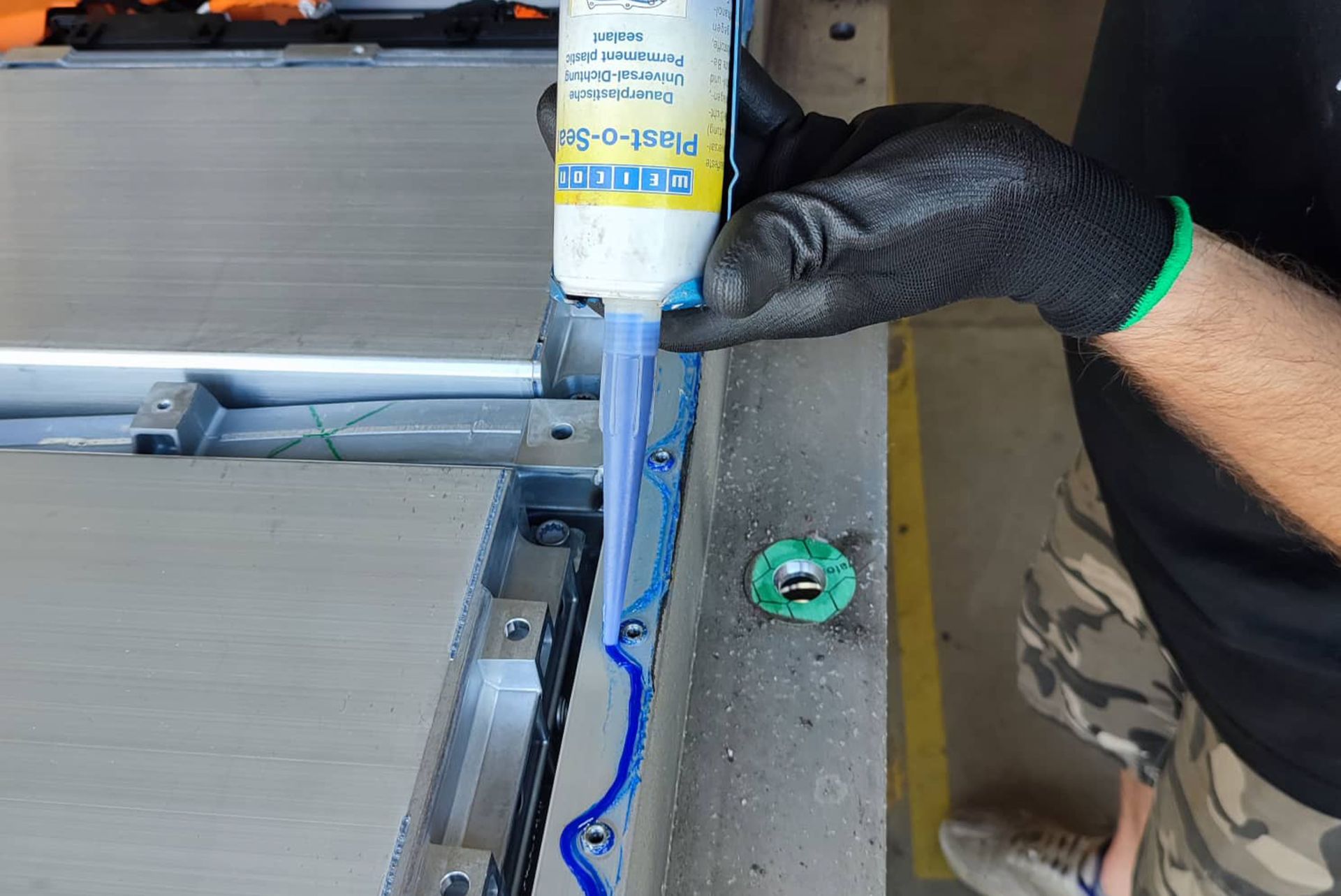

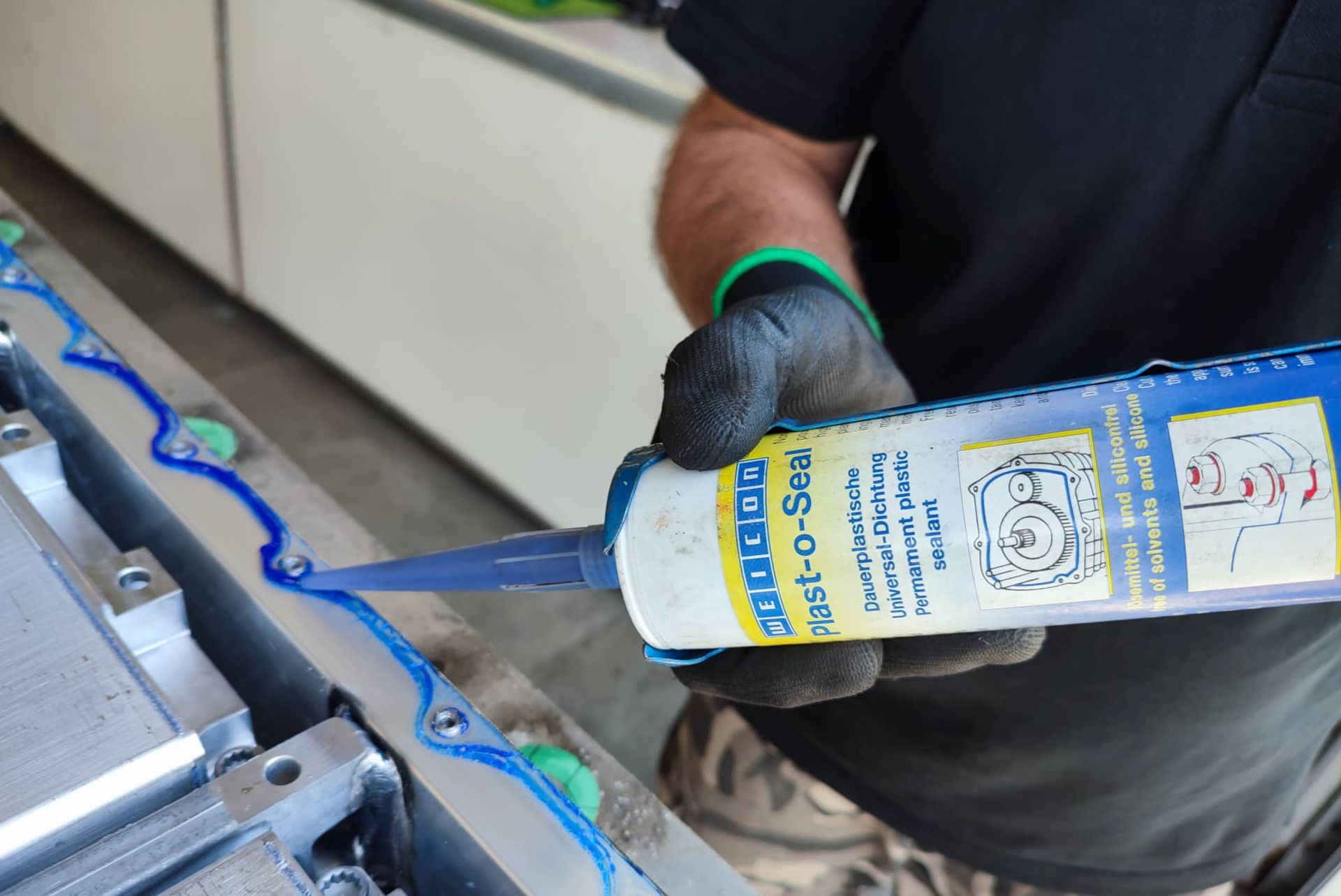

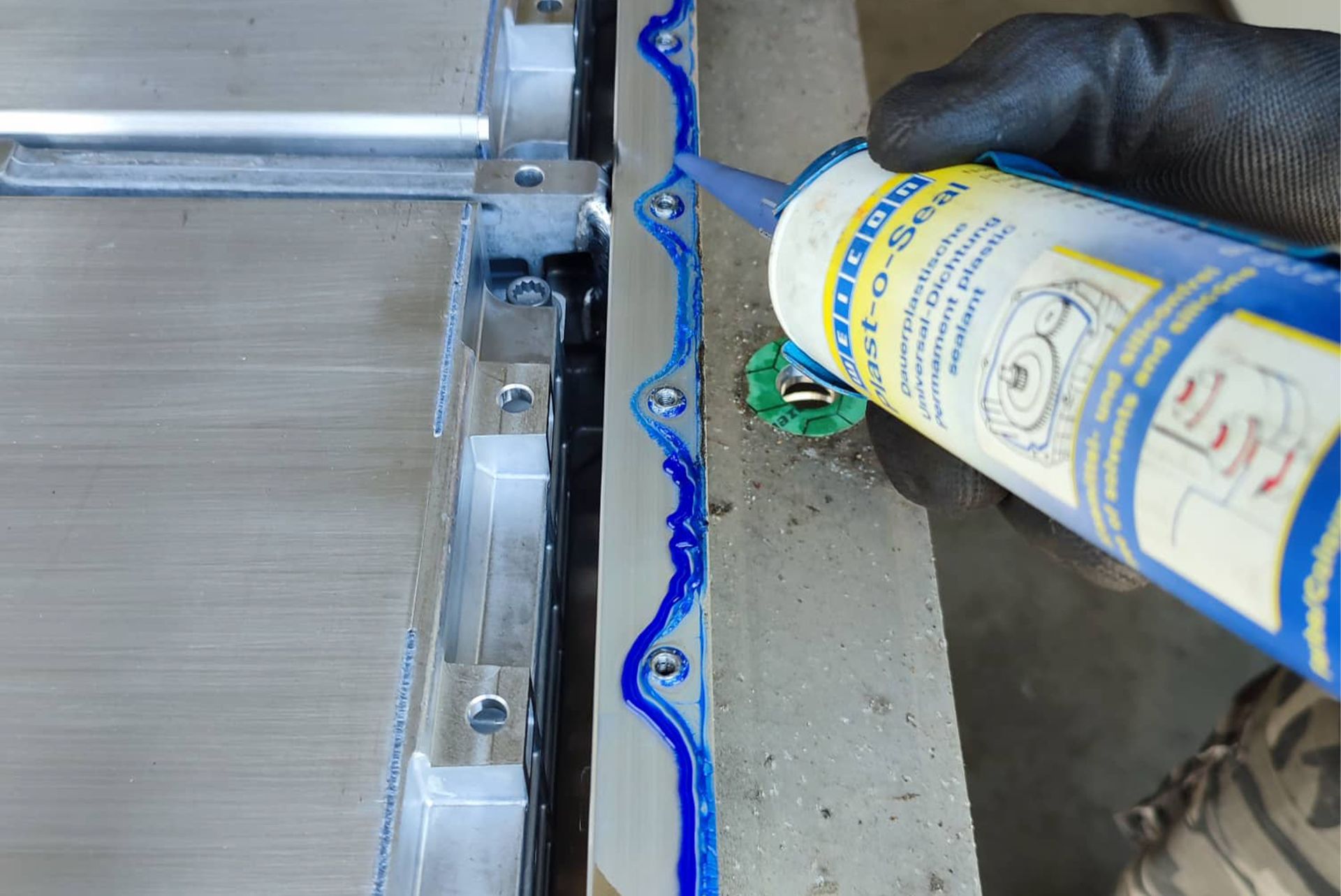

Sealing of the battery packs with WEICON Plast-o-Seal

Advantage of our solution:

✓ Long-term sealing effect

Sealing of battery packs on electric cars

Sealing of battery packs on electric cars_1

Sealing of battery packs on electric cars_2

Sealing of battery packs on electric cars_3

Sealing of battery packs on electric cars_4

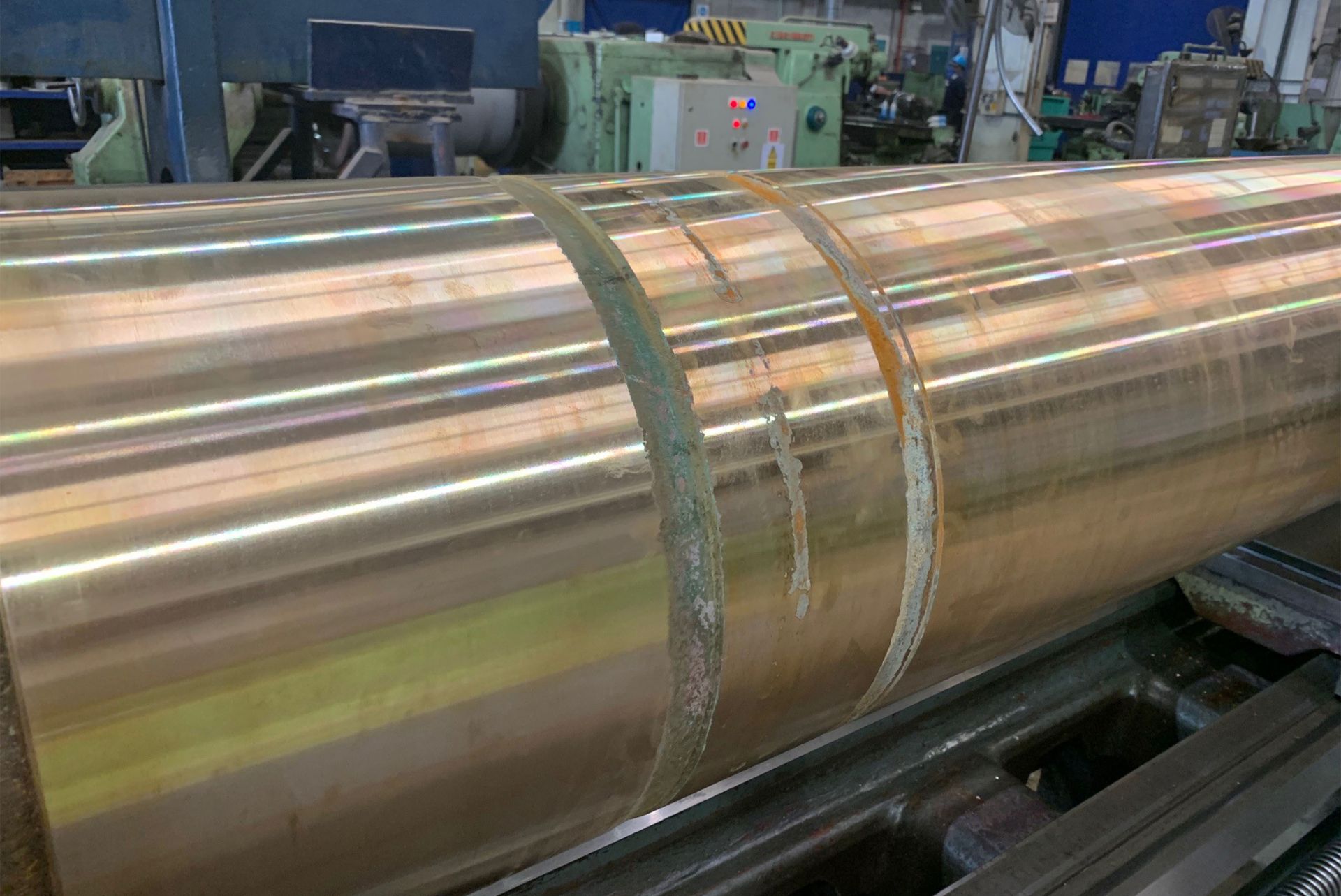

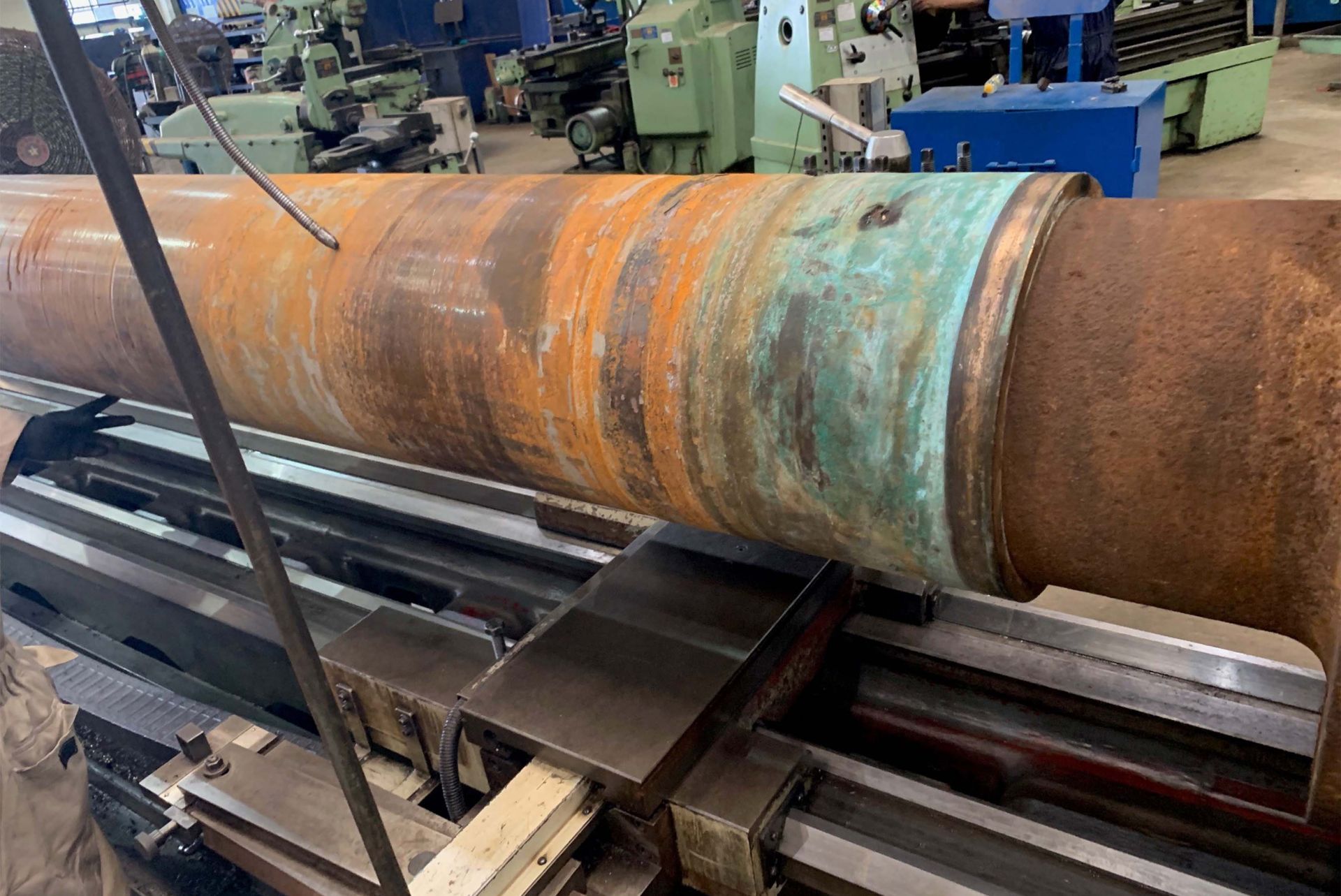

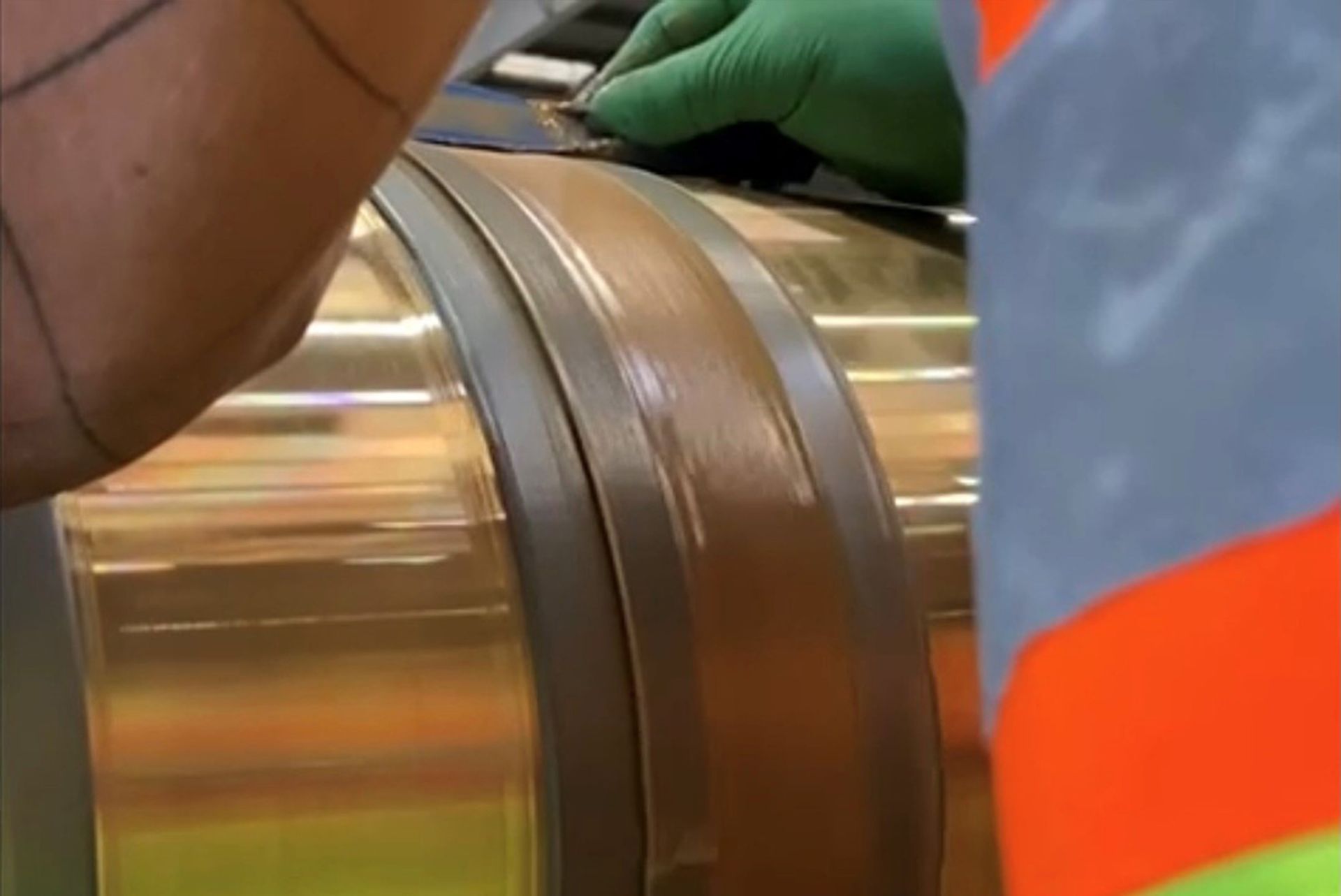

Repair of a bronze propeller shaft

Propeller shaft had shrunk slightly by approx. 5 mm in the sealing area due to sediment build-up (stern tube)
Shaft was sanded down by 4 mm and by 200 mm in width
Cleaning with WEICON Cleaner Spray S
Creating a barrier by means of tape (3 mm)

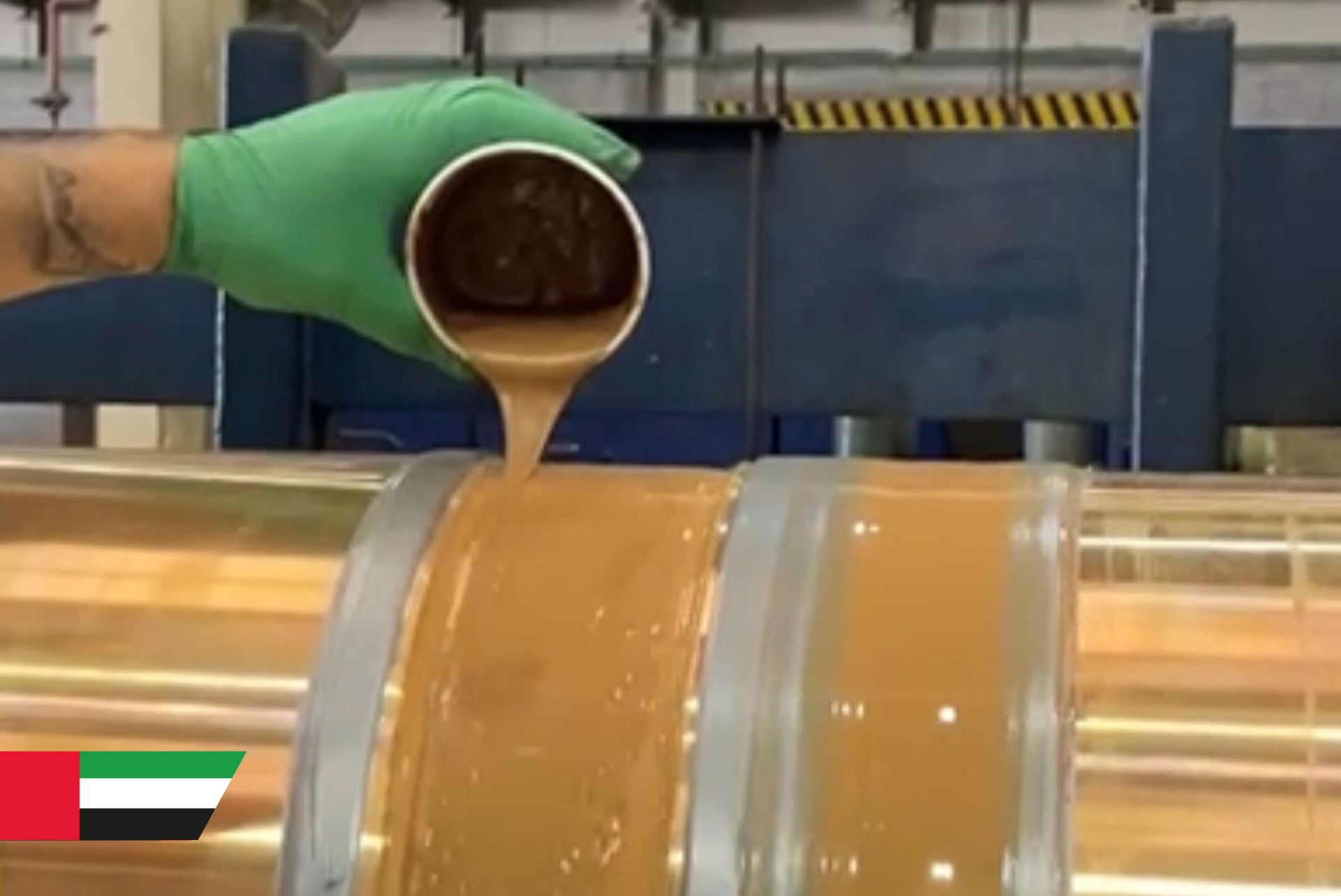

Application of WEICON BR at slow rotation of the shaft
Slow rotation of the shaft during curing to prevent WEICON BR from dripping off
Sanding the shaft to size after curing
Finishing the shaft with fine abrasive cloth (approx. 0.2 mm)
Reinstalling the propeller shaft

Advantage of our solution:

✓ Avoidance of a cost-intensive replacement

✓ Easy and time-saving repair

✓ Good material compatibility and seawater resistance of WEICON BR
