WEICON products are used in fascinating applications all over the world, e.g. on the largest bridge in Turkey, on pipelines in Romania and South America, or for sophisticated bonding work in Dubai on a trade fair pavilion. Our products are used internationally. We have summarised our most exciting applications from recent years to highlight their benefits and special features. These global applications illustrate the versatile and indispensable role of WEICON products around the world.

Conveyor Belts

Repair of conveyor belts in a quartz mine

Stoneware Sewers

Mounting stoneware sewers with plastic pipes

Inner Coating of Pumps

Inner coating of pumps

Attachment and Alignment

Attachment and alignment to hose covers and couplings on bunker station in harbour

Bonding of Brackets

Bonding of 28,000 brackets for aluminium rhombs

Crack Repair of Moulding Die

Crack repair of a moulding die for bumpers in the automotive industry

Repair of Leakage on Cooler

Repair of a leakage on a cooler

Bonding sight glasses

Bonding sight glasses to monitor the suspension cables on the Çanakkale 1915 Bridge

Sealing of battery packs on electric cars

Sealing of battery packs on electric cars

Repair of a bronze propeller shaft

Repair of a bronze propeller shaft

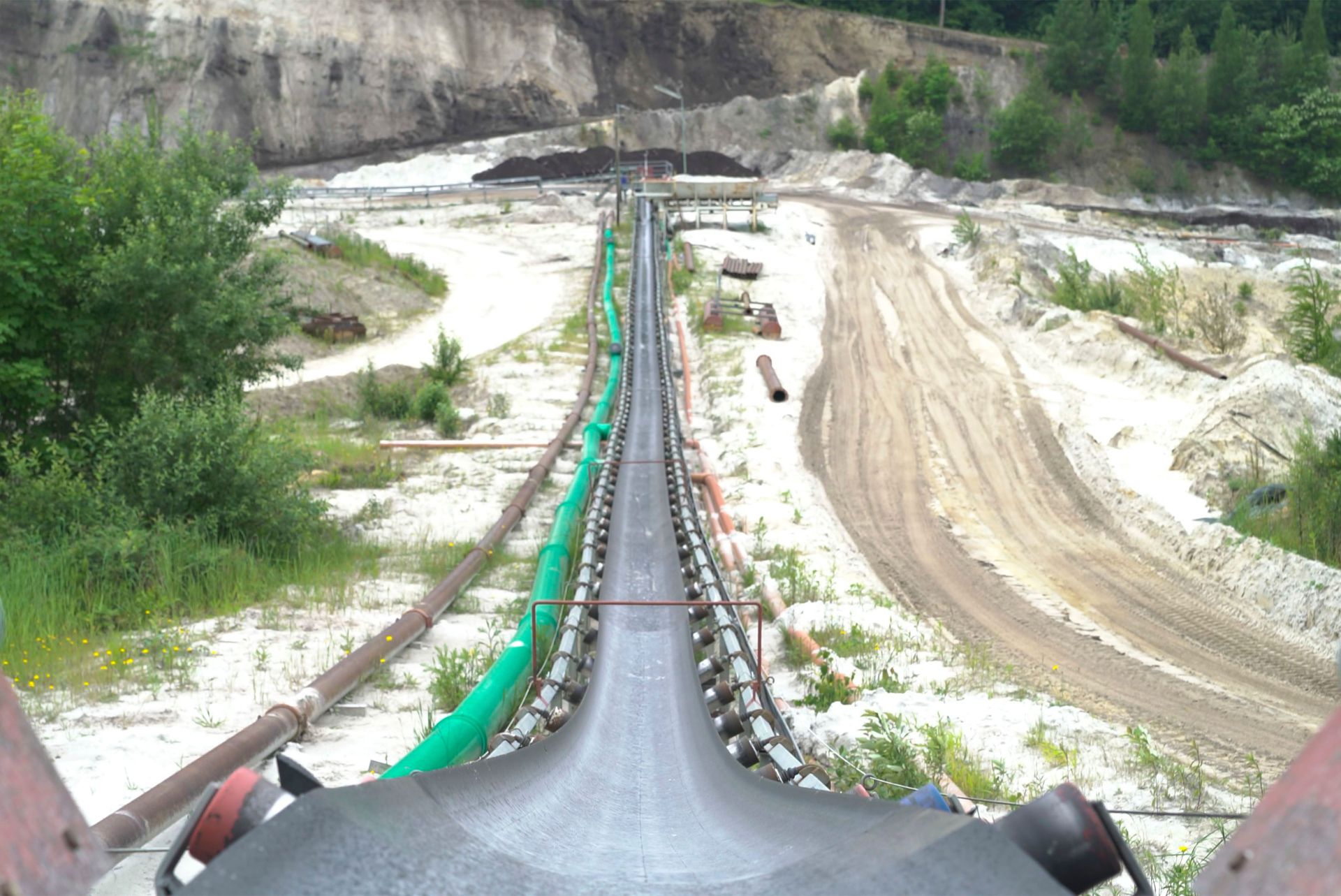

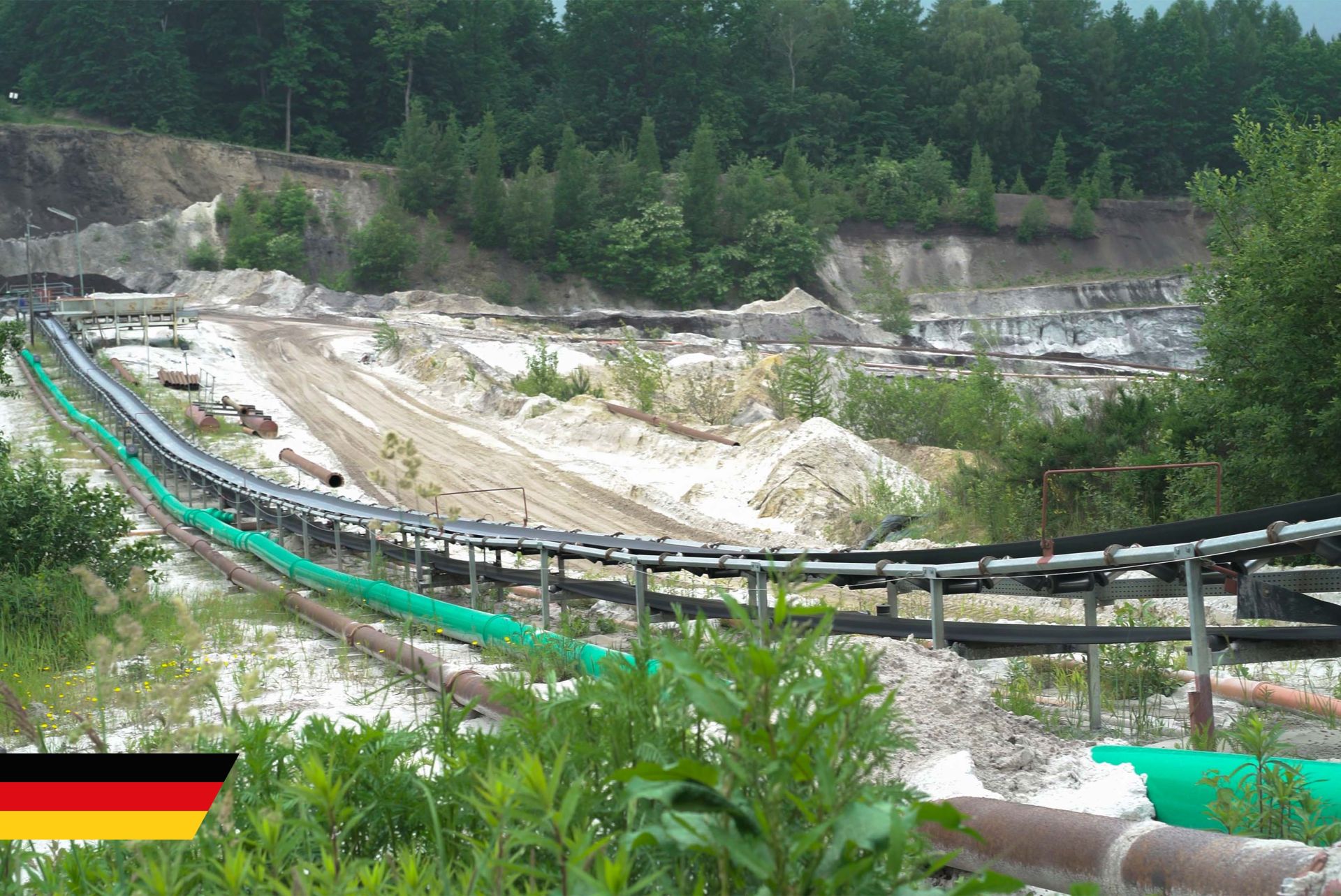

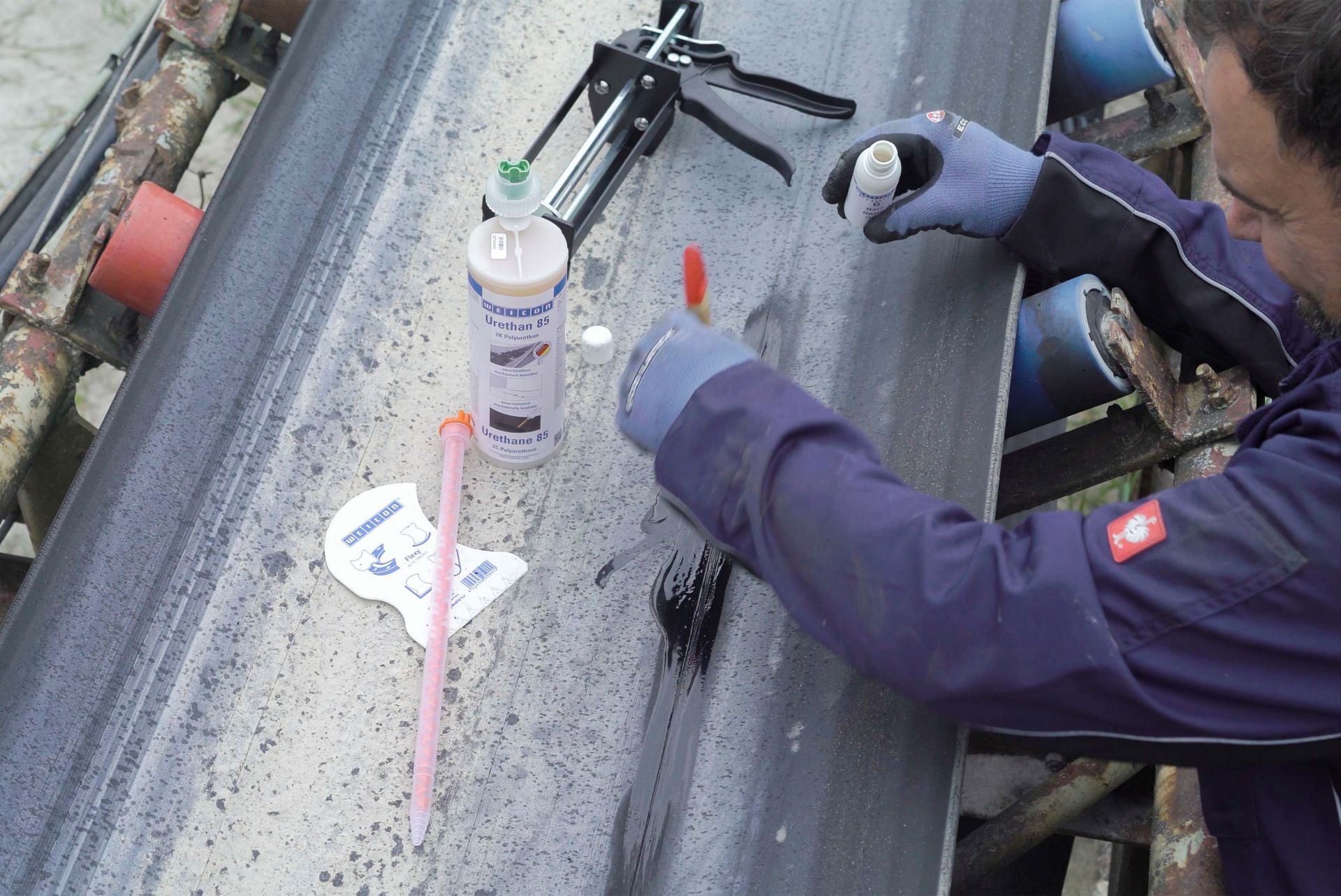

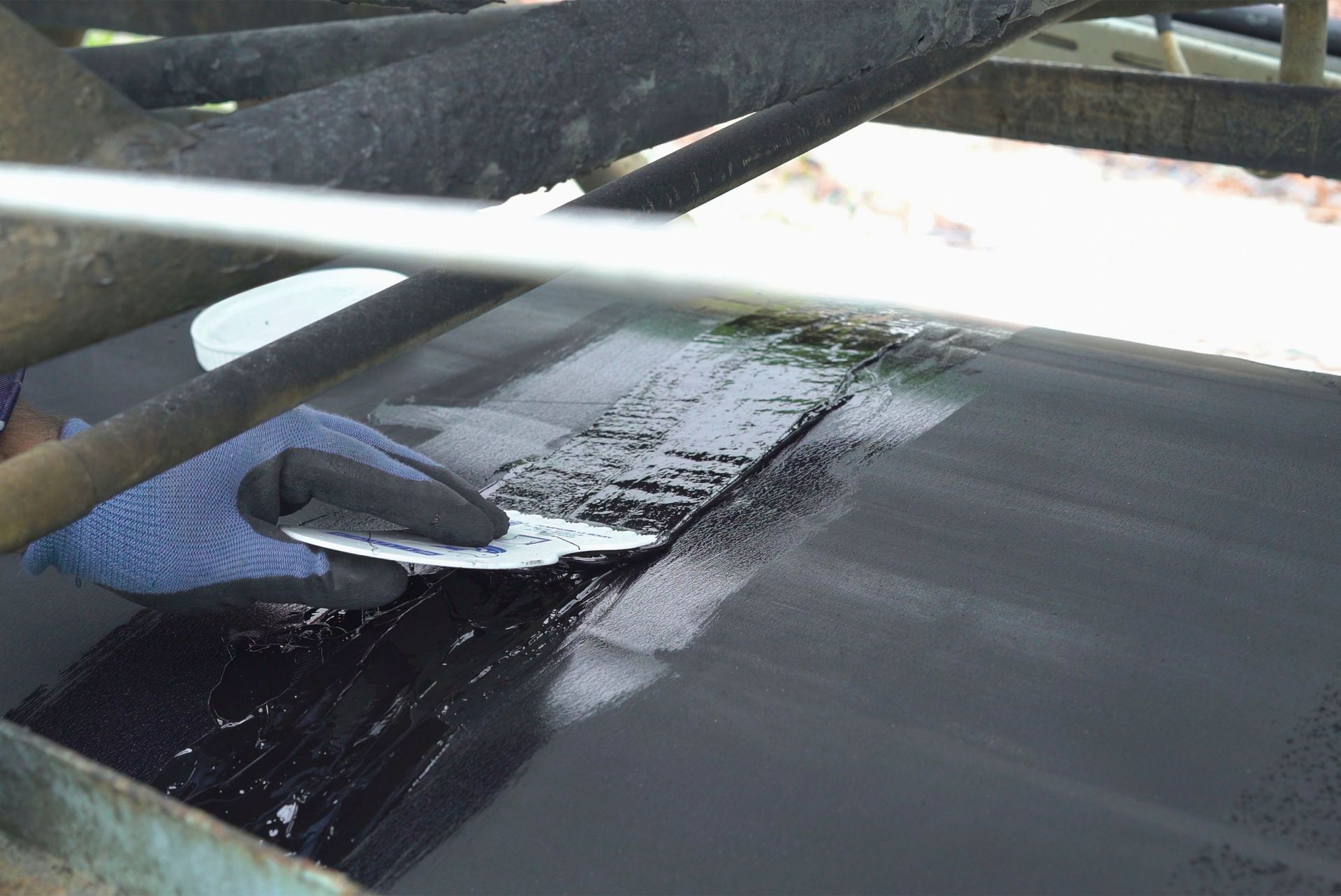

Repair of conveyor belts in a quartz mine

  • Removing coarse dirt

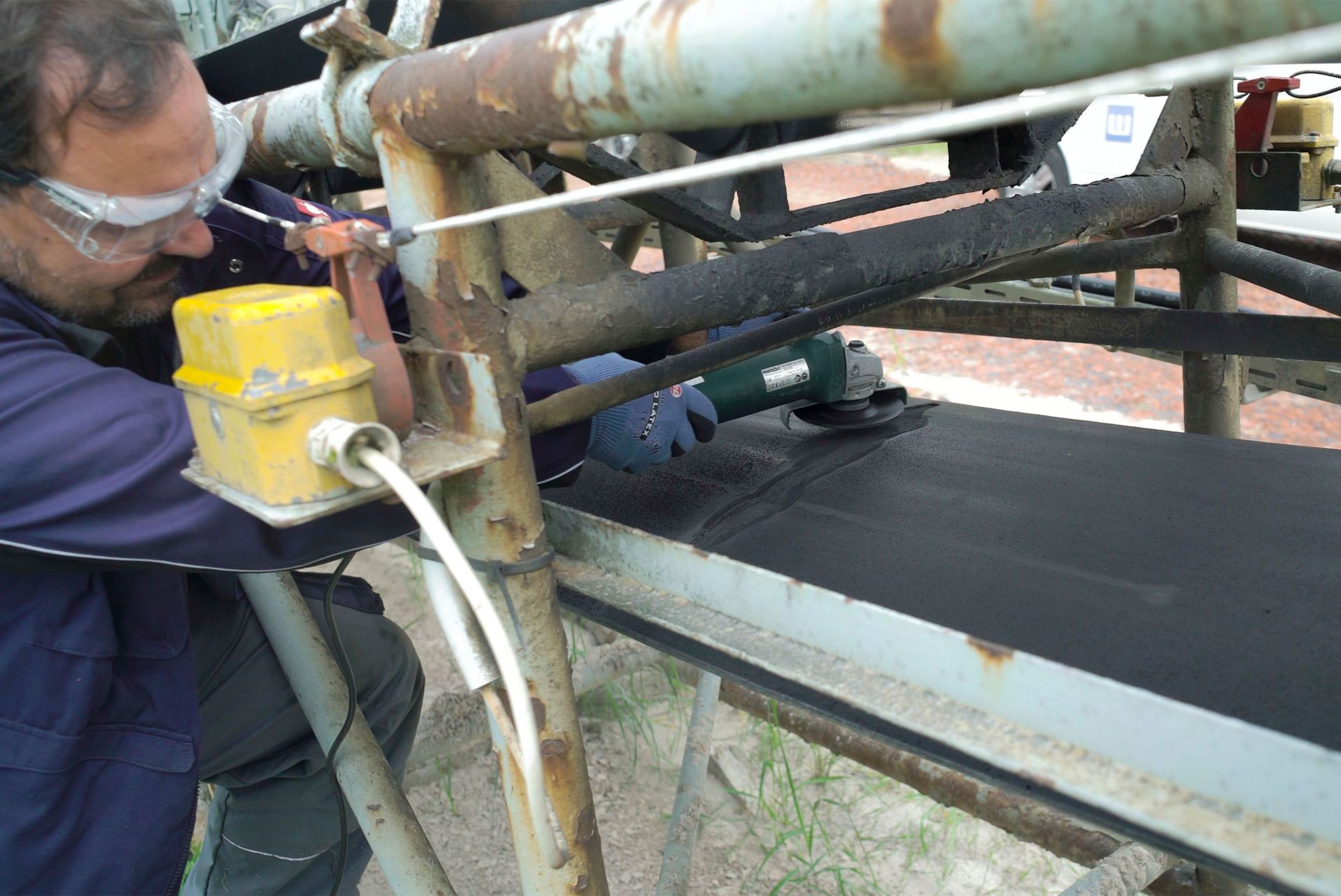

  • Roughening and levelling the damaged areas with an angle grinder (rasp disc or cup wheel)
  • Cleaning the surface with WEICON Cleaner Spray S
  • Mixing and applying WEICON Primer G with a paint brush
  • Allow WEICON Primer G sufficient time to flash off
  • Depending on the container application of WEICON Urethane 85
  • Smoothing the surface with WEICON Contour Spatula Flexy

Advantage of our solution:

  • Very cost-effective way to restore the functioning of the conveyor belts and thus extension of the service life
  • Versatile application possibilities
Conveyor Belt 1
Conveyor Belt 2
Conveyor Belt 3
Conveyor Belt 4
Conveyor Belt 5

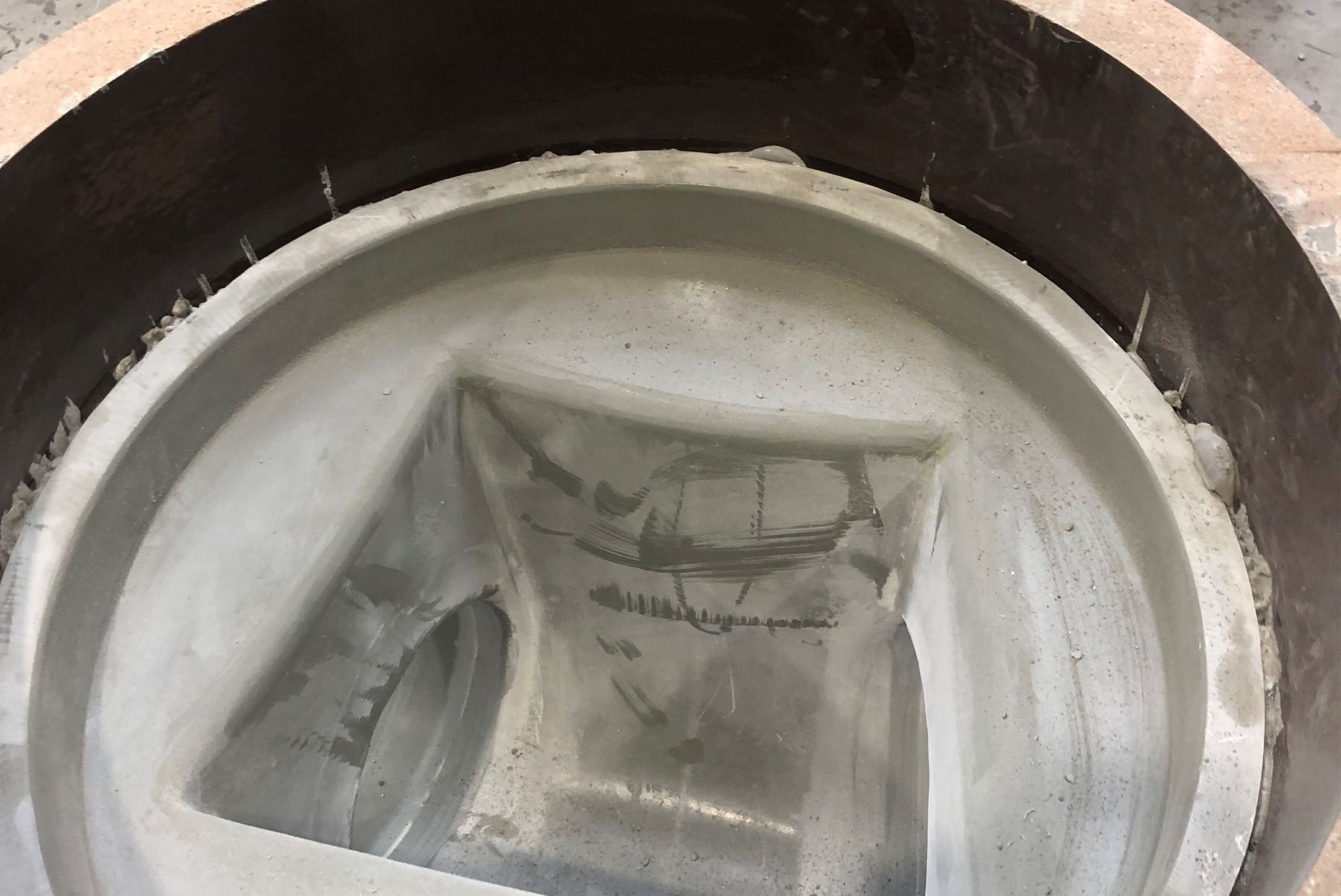

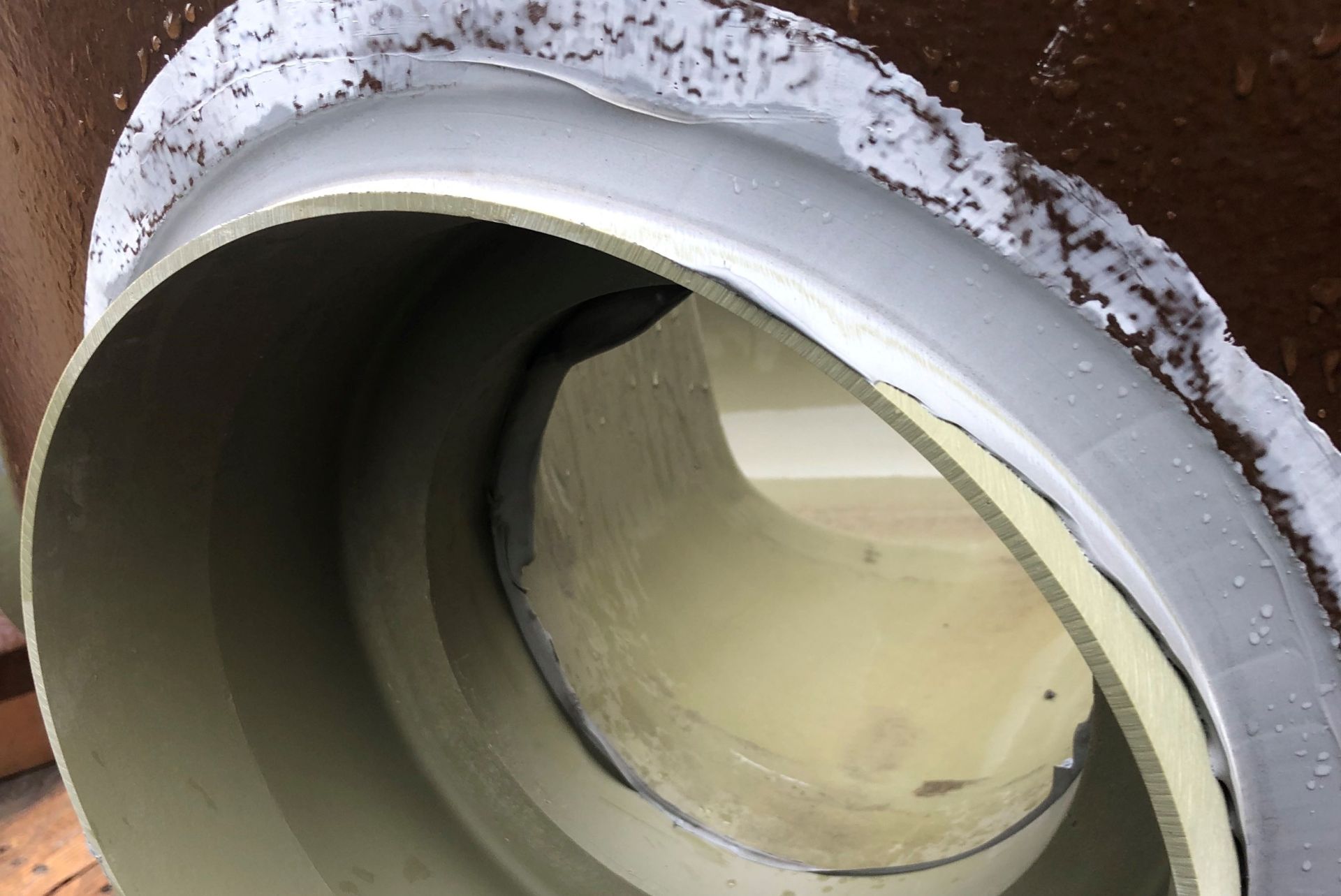

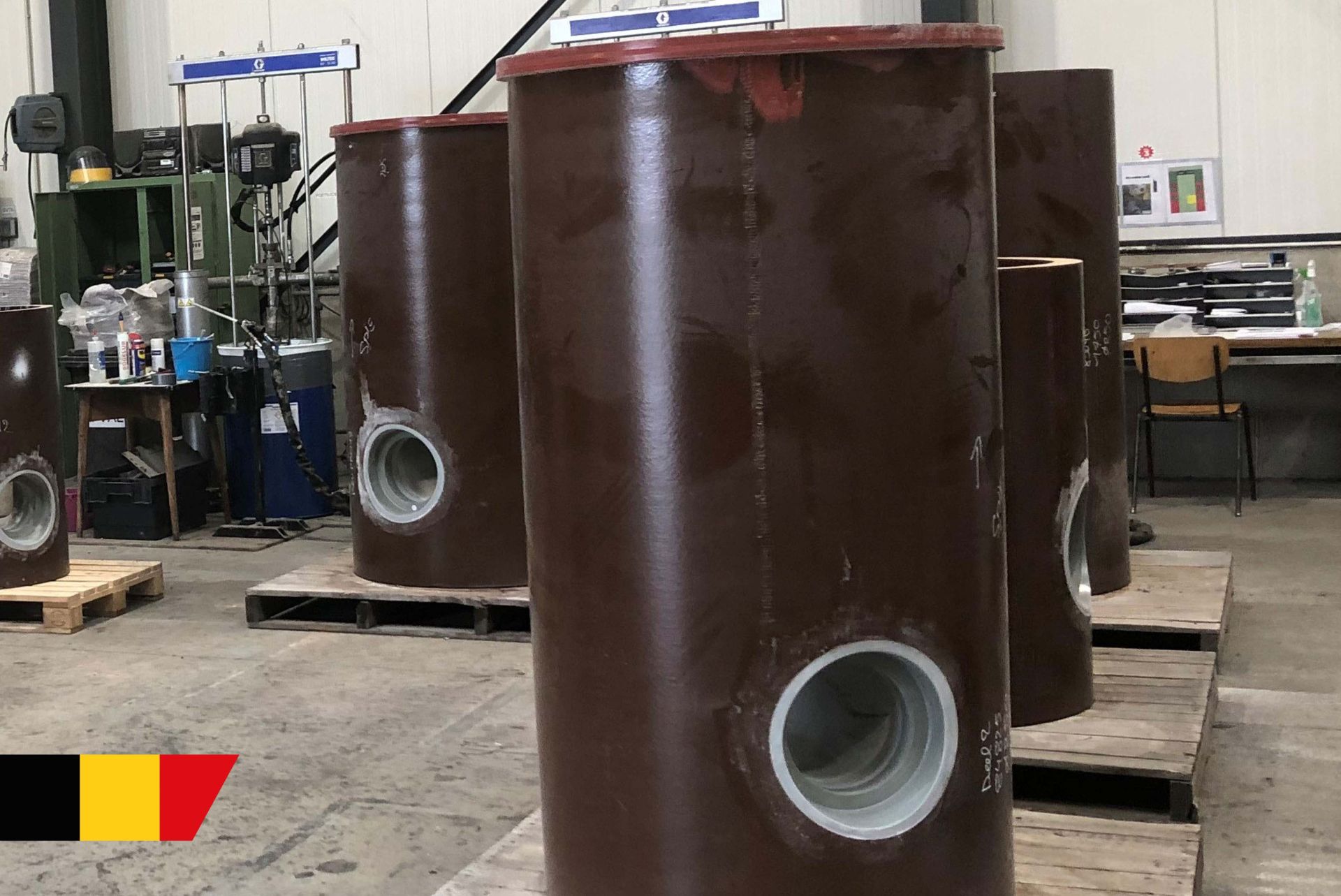

Mounting stoneware sewers with plastic pipes

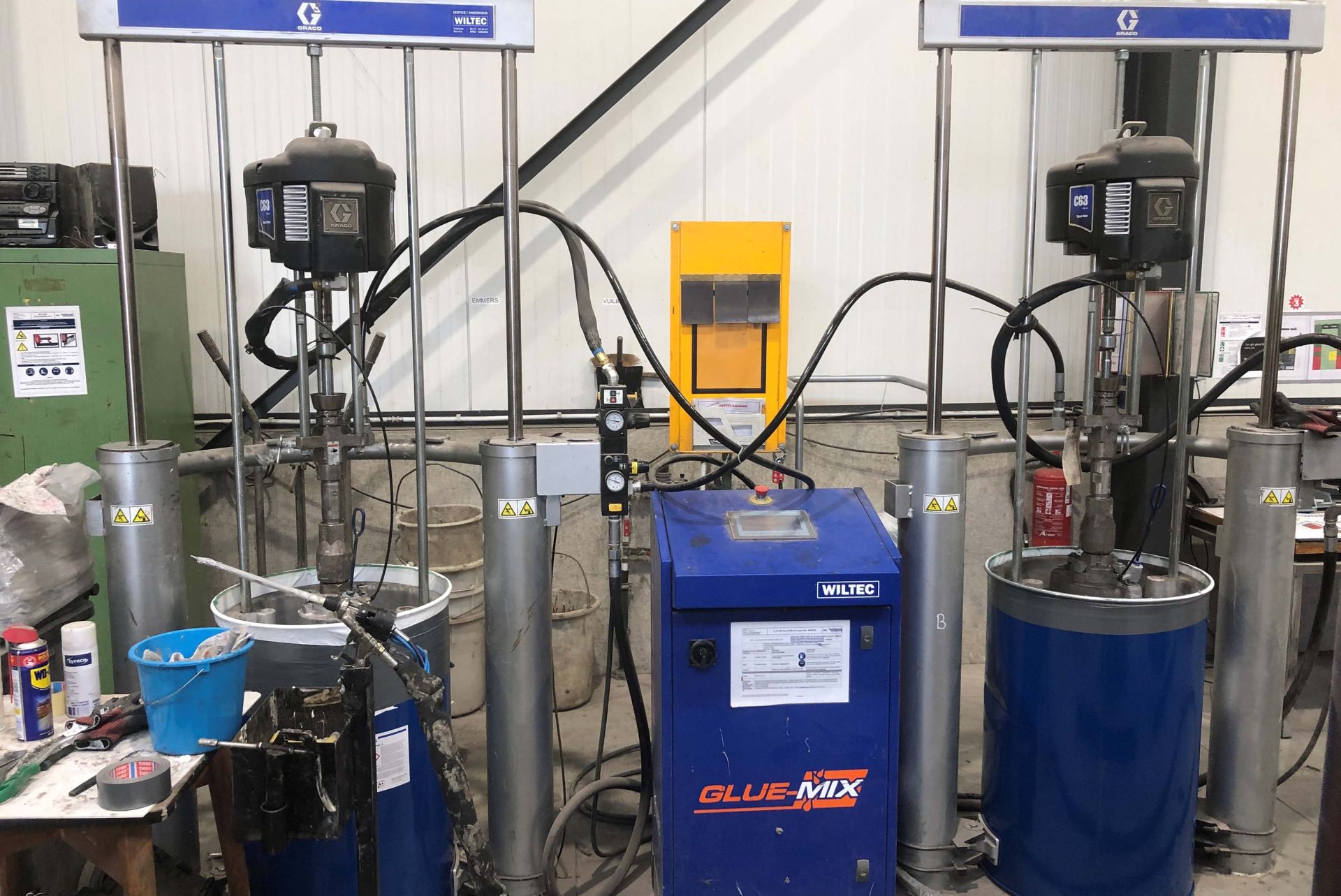

  • Installation of a dosing system due to the large material consumption
  • Gap-filling and bonding with generous application of WEICON Flex 310 M® 2 K
  • With this type of drum dosing system, the adhesive is mixed only in the mixing nozzle

Advantage of our solution:

  • Compared to other adhesives: elasticity, tolerance compensation, good sealing effect, high adhesive strength and curing independent of ambient conditions thanks to 2C system
  • Adhesive is only mixed in the mixing nozzle
Stoneware 1
Stoneware 2
Stoneware 3
Stoneware 4

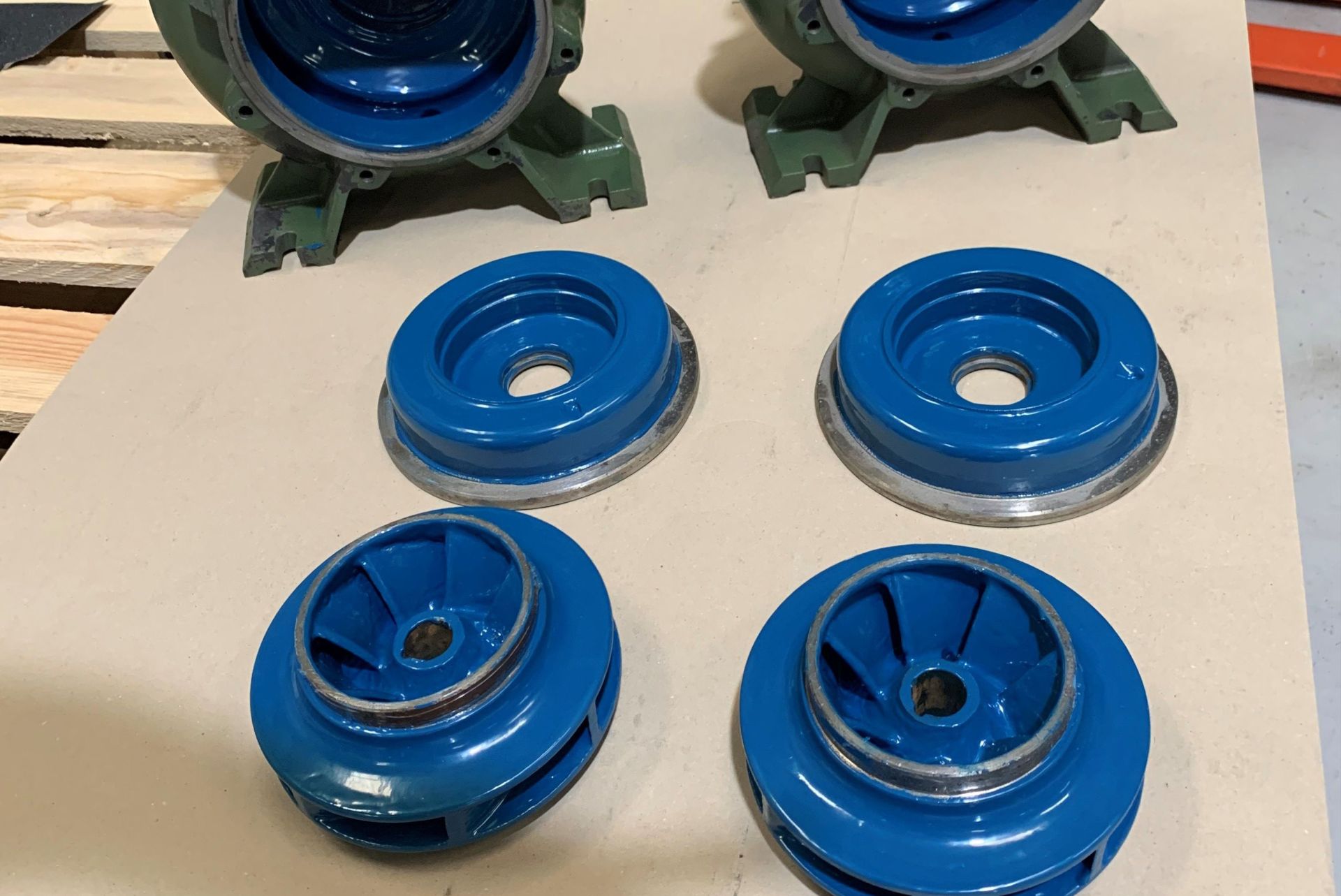

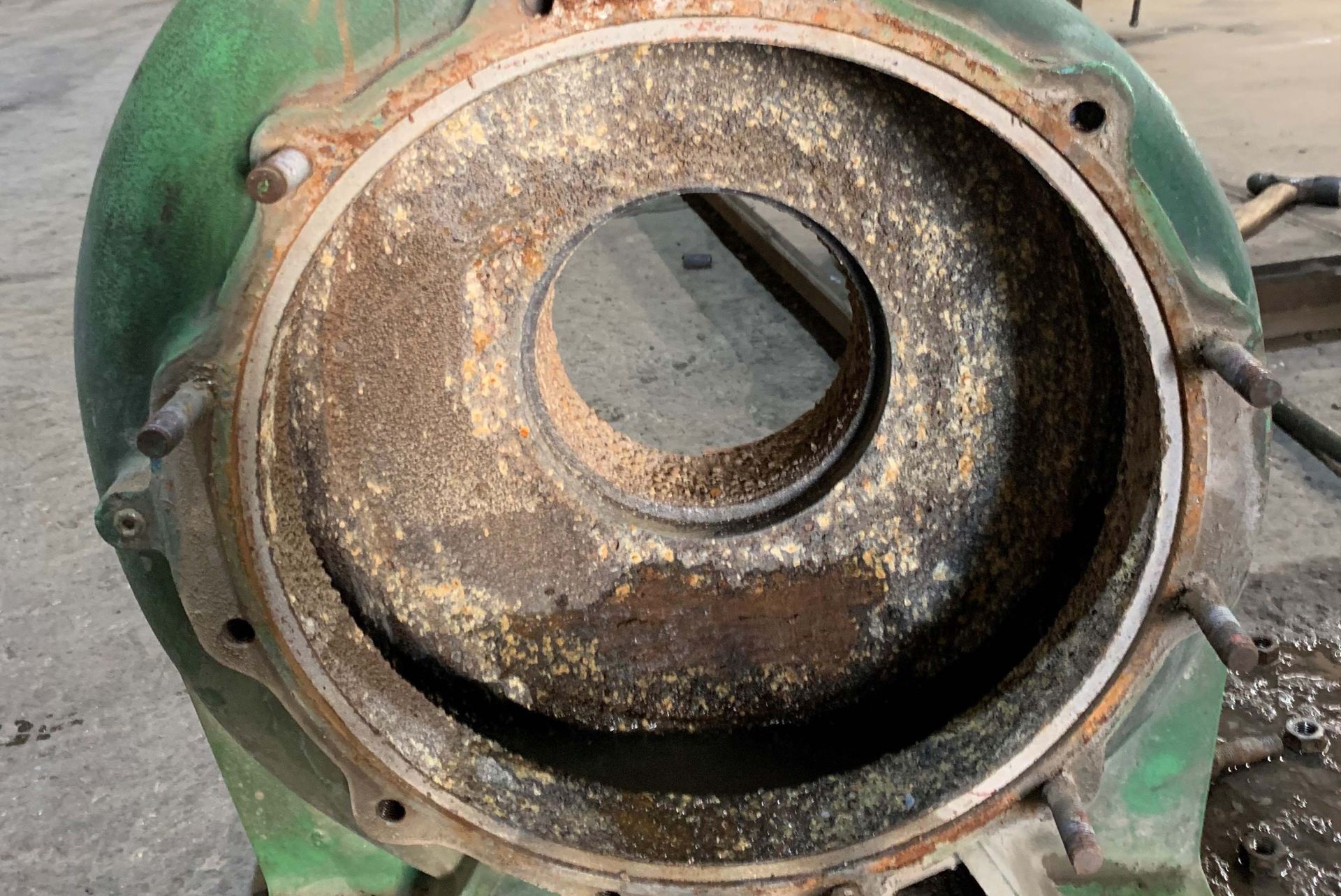

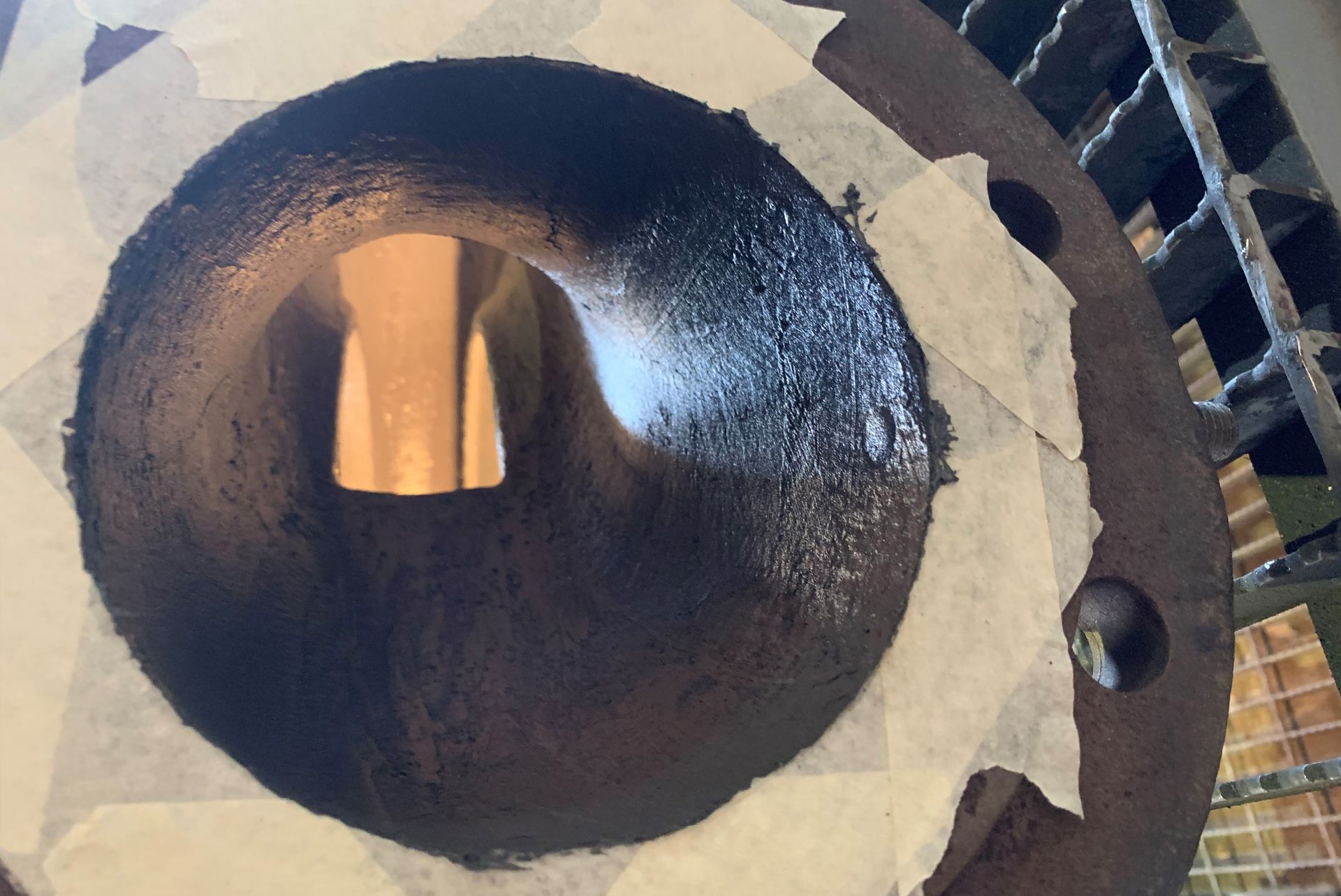

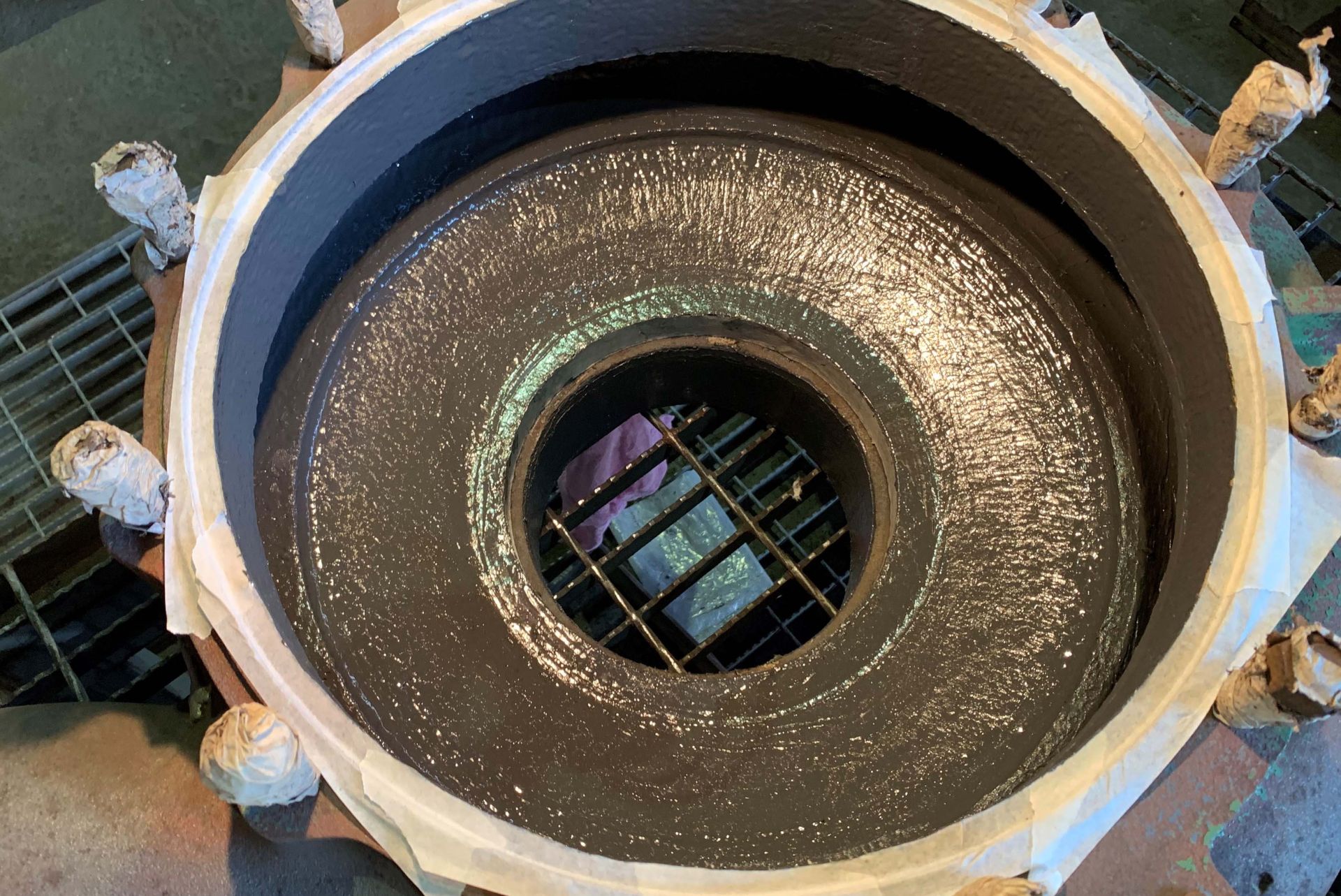

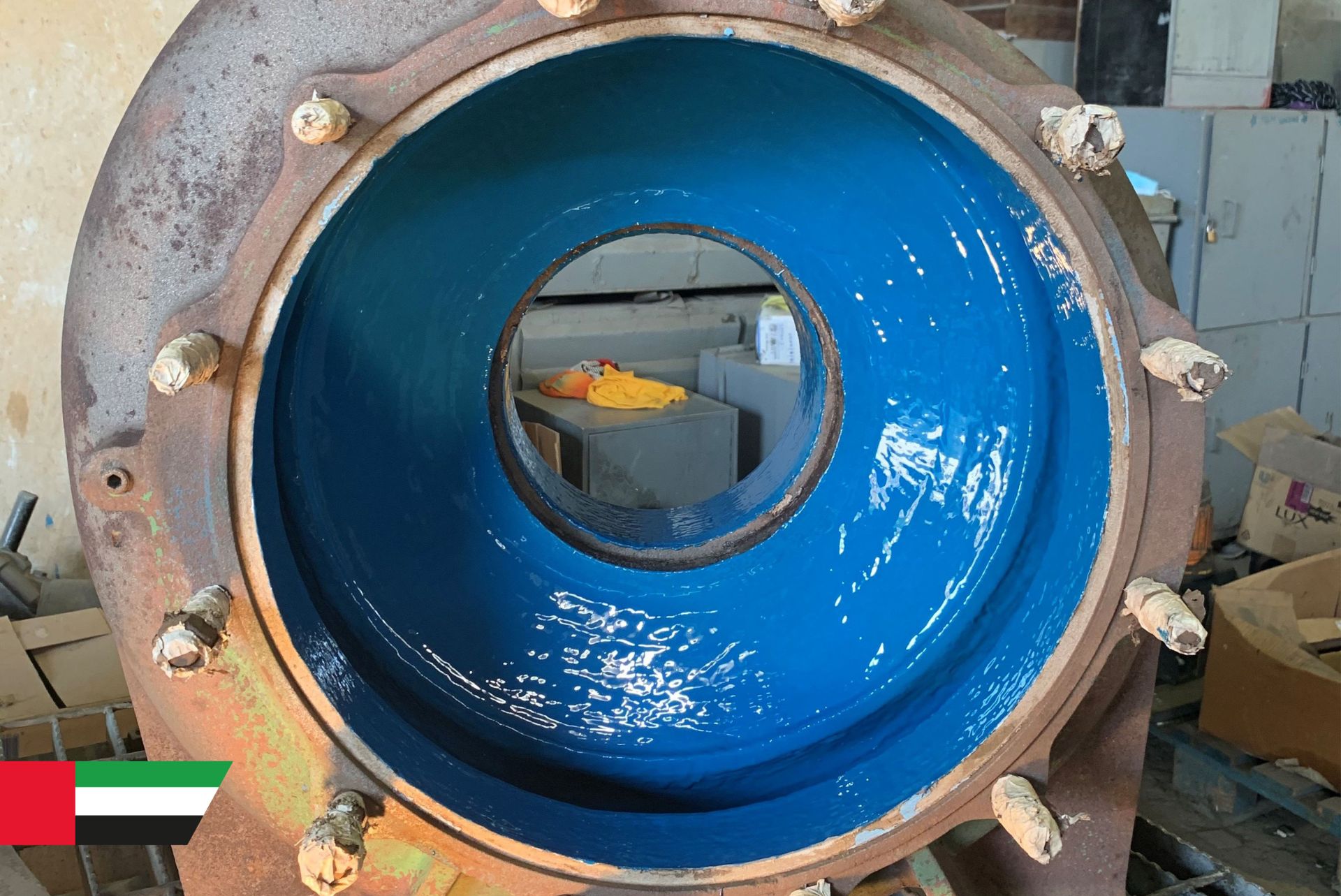

Inner coating of pumps

  • Pre-treatment with sandblasting
  • Cleaning with WEICON Cleaner Spray S
  • Repairing the cavitation and corrosion damages with WEICON HB 300
  • Final coating as wear protection with WEICON Ceramic BL

Advantage of our solution:

  • Repairing worn pumps
  • Additional protection for new pumps
  • Cost-effective repair and long service life
Pipeline 1
Pipeline 2
Pipeline 3
Pipeline 4
Pipeline 5

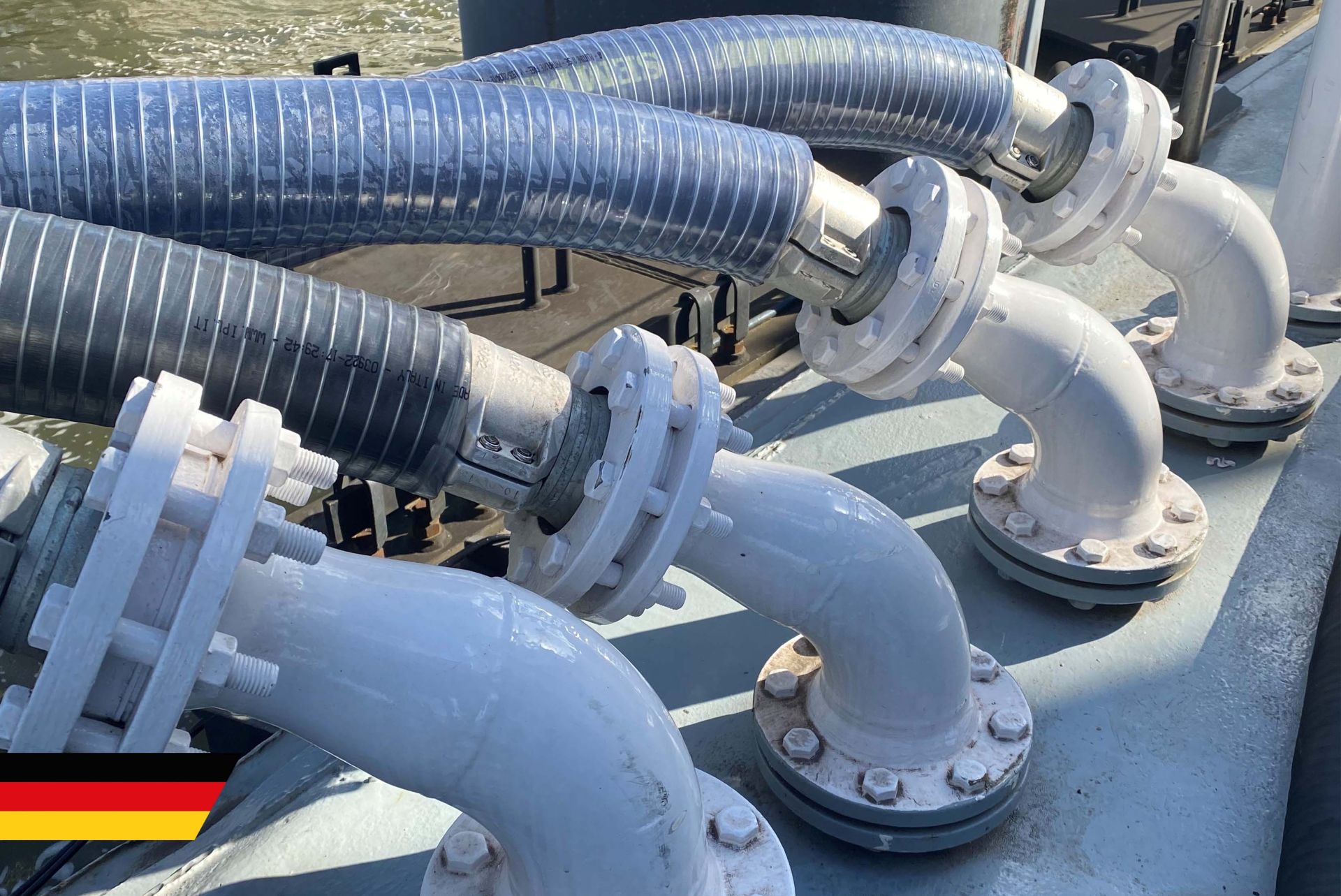

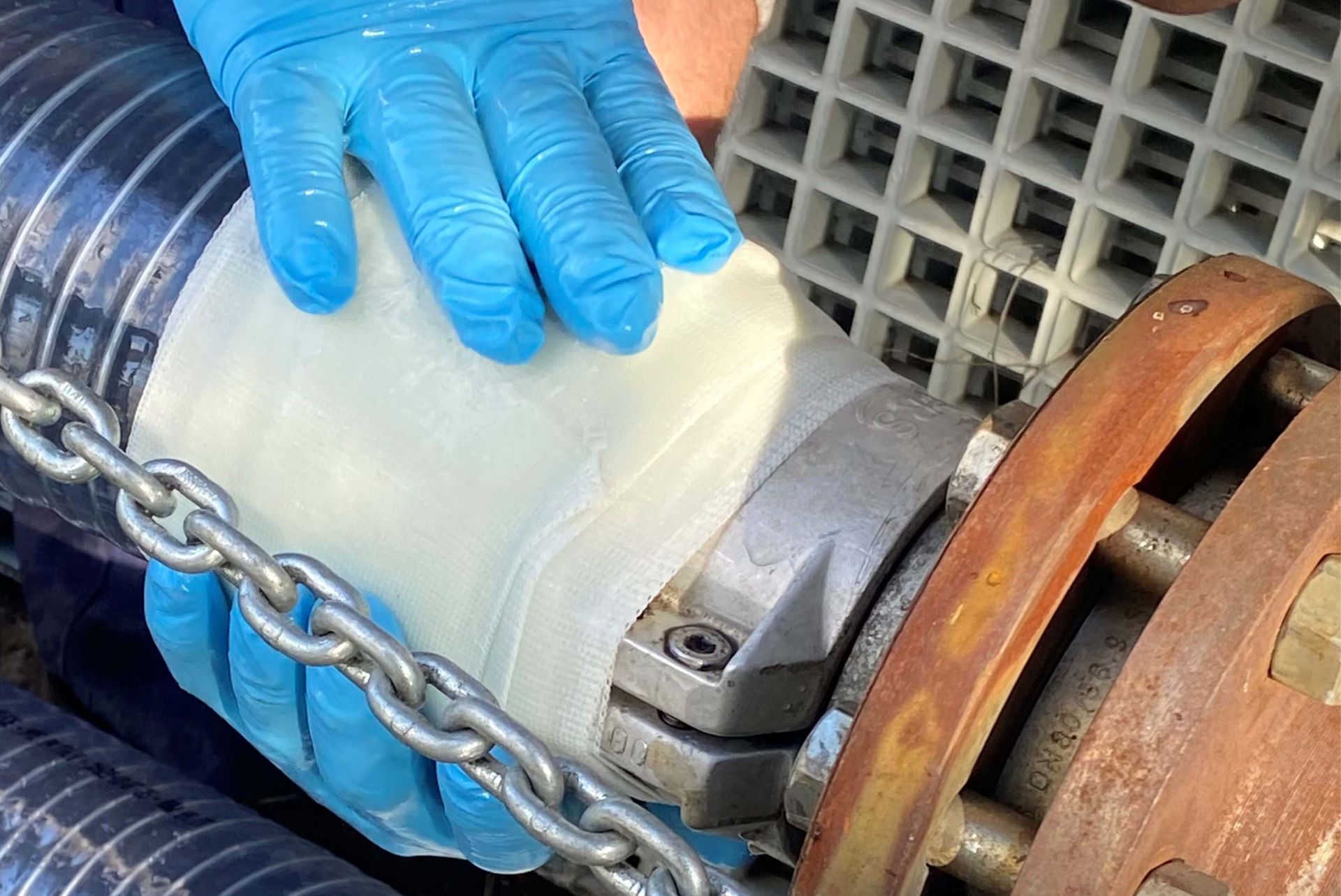

Attachment and alignment to hose covers and couplings on bunker station in harbour

  • Clean the surface with WEICON Cleaner Spray S
  • Align hose covers
  • Apply WEICON Repair-Tape 10 cm x 3.5 m

Advantage of our solution:

  • Simple, inexpensive and reliable sealing
Tank 1
Tank 2

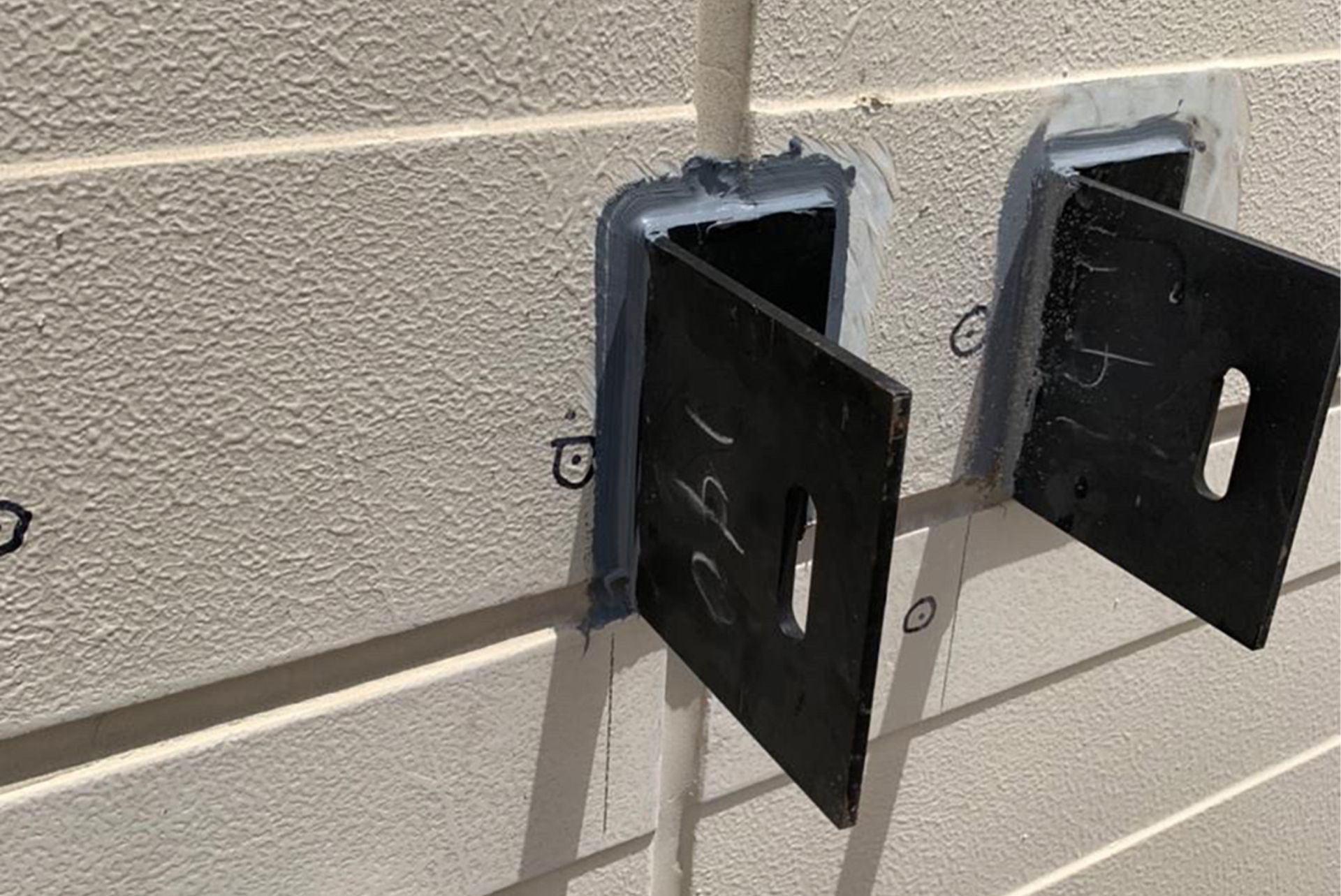

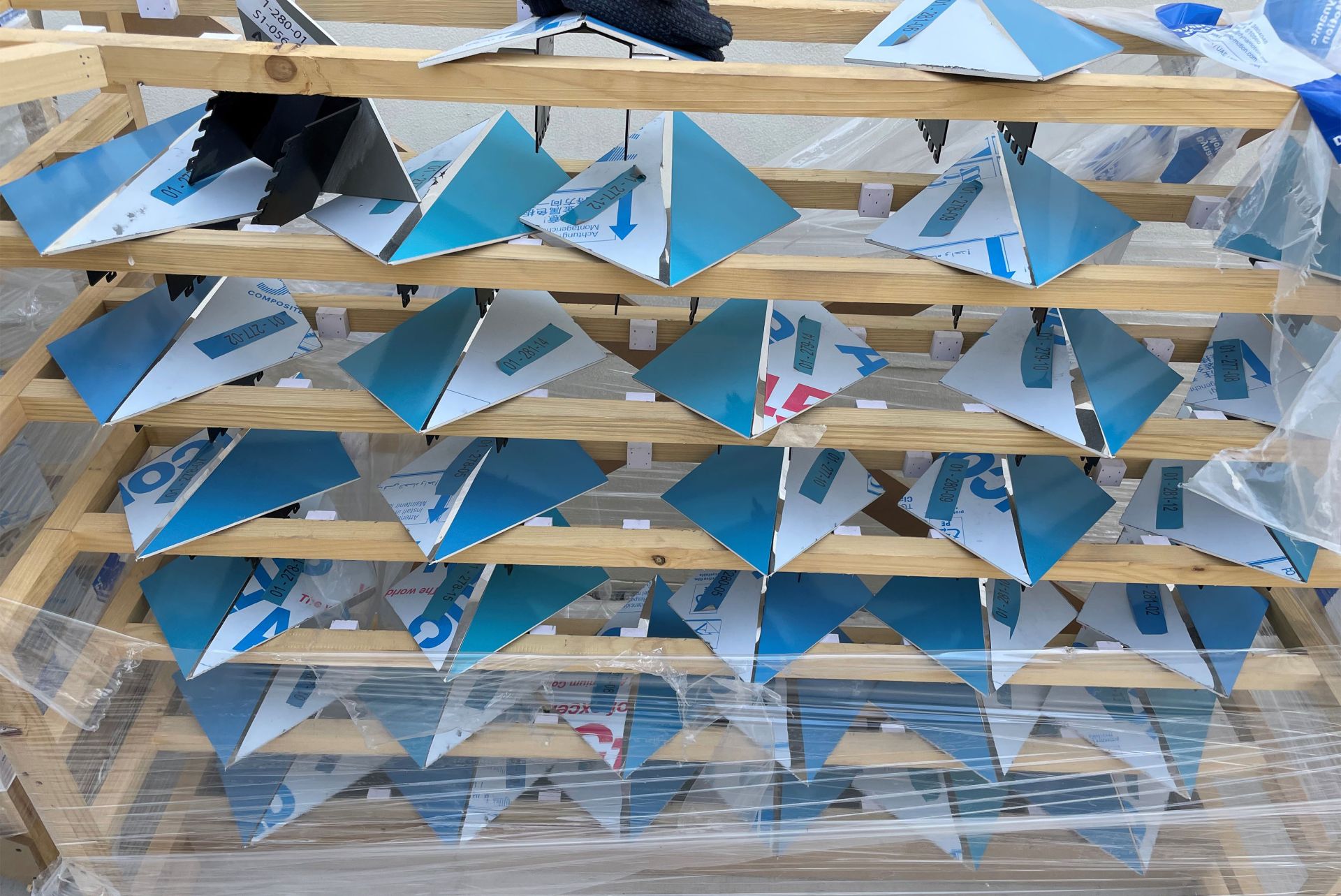

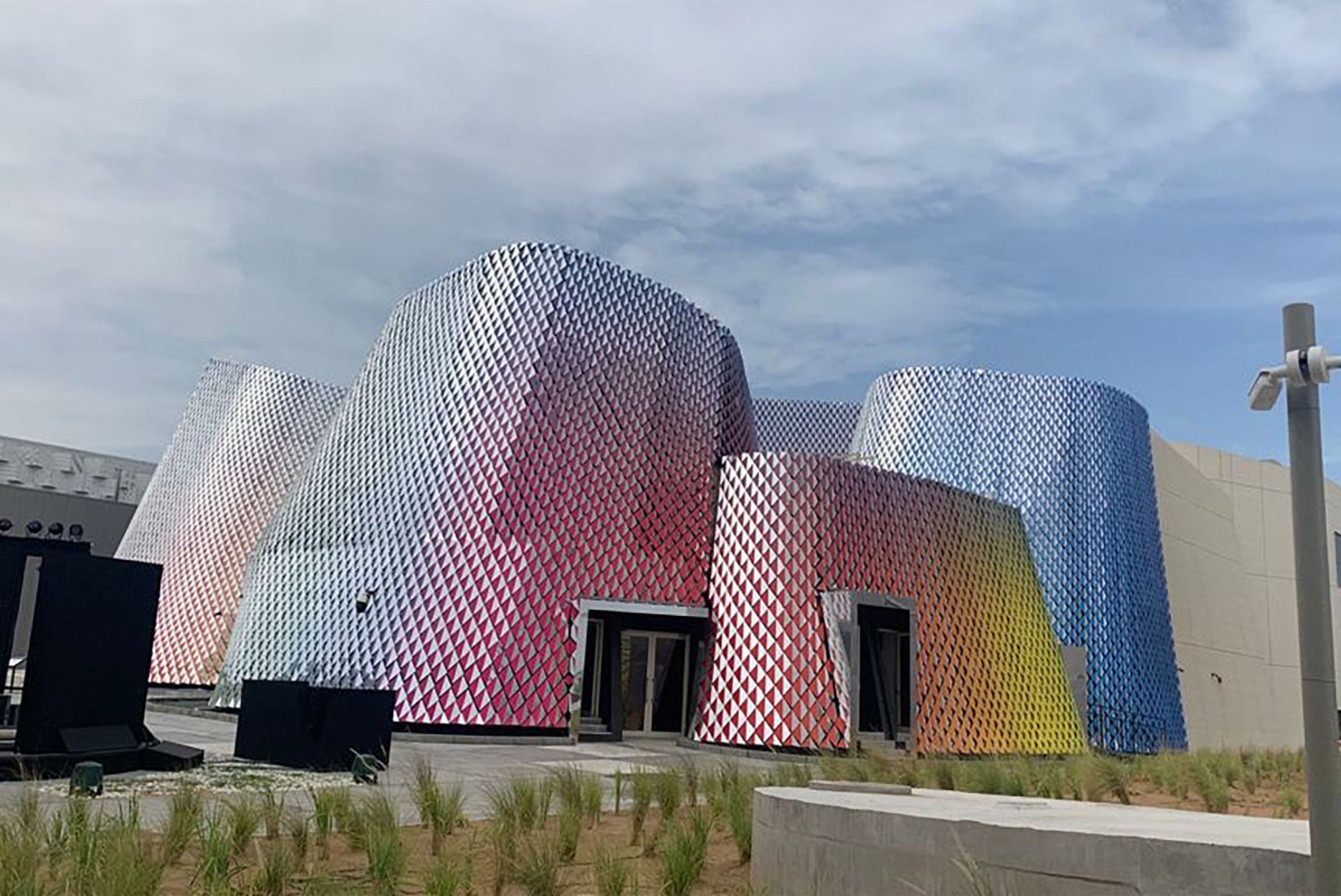

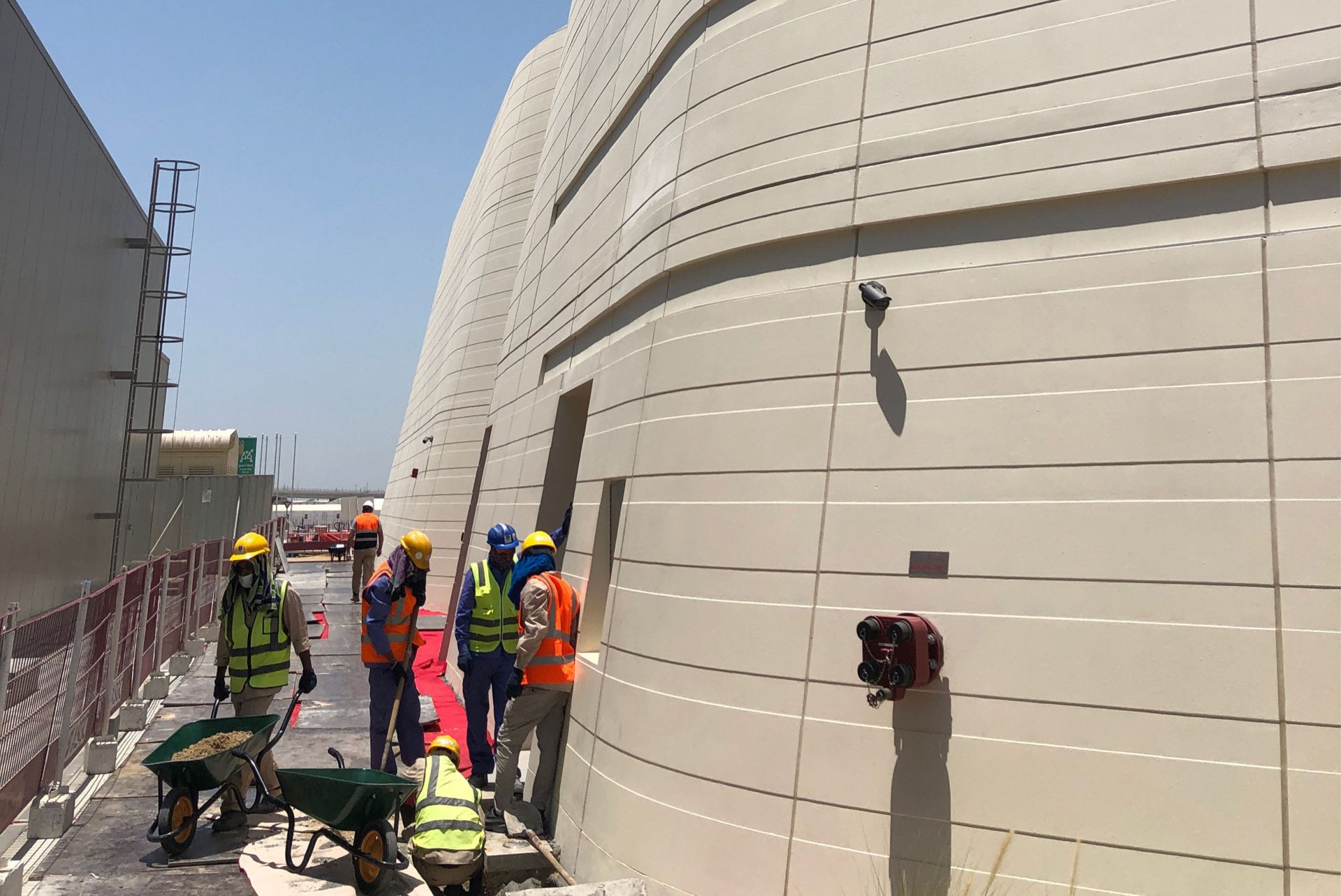

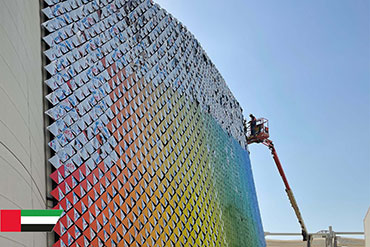

Bonding of 28,000 brackets for aluminum rhombs at the Pakistan Pavilion at the Expo 2020 in DUBAI

  • Use of several WEICON products at the pavilion
  • Cleaning the aluminium rhombs with WEICON Cleaner Spray S

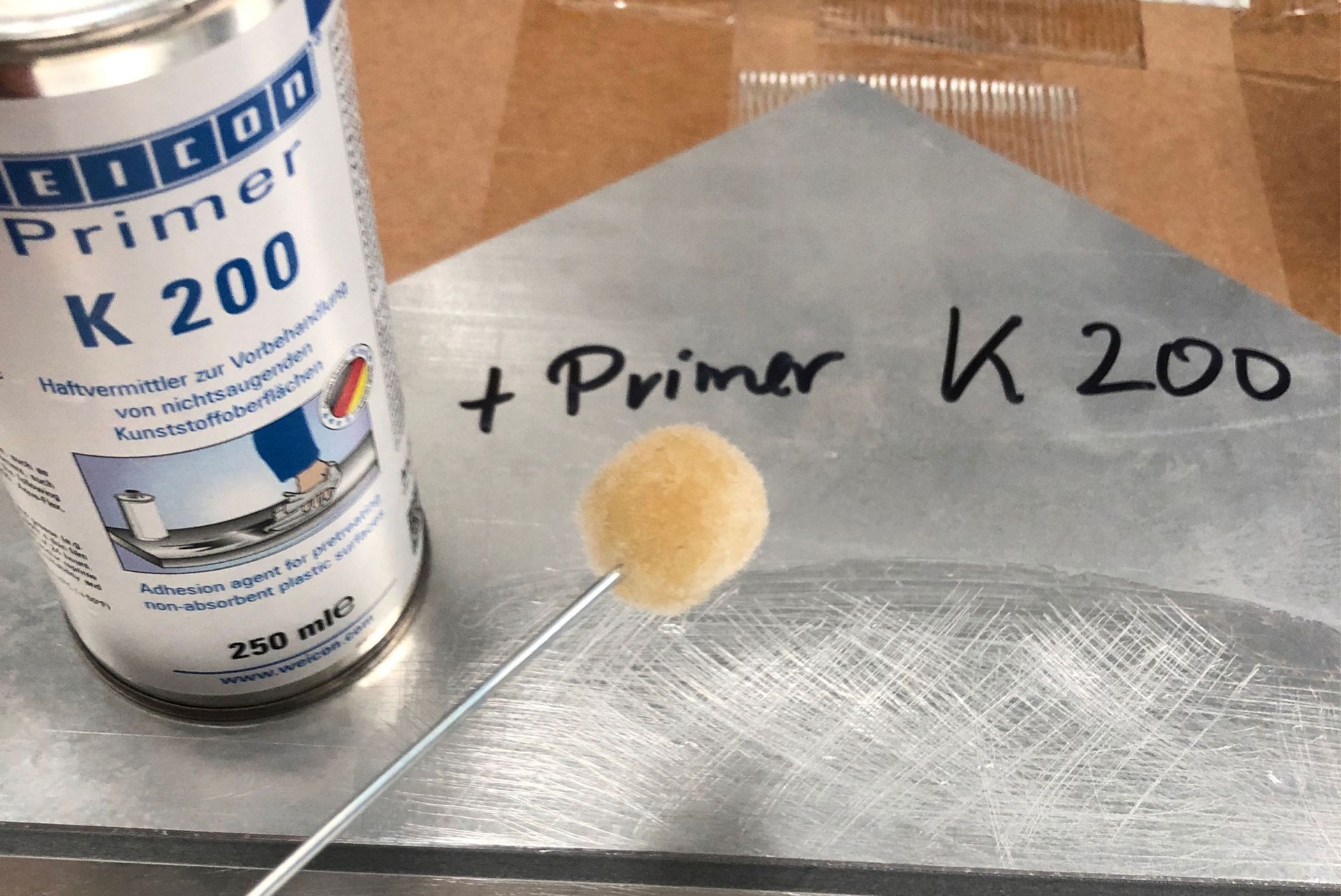

  • Application of WEICON Primer K 200 for better cross-linking of the surface
  • Bonding the 28,000 aluminium rhombs with WEICON Flex 310 M® Classic
  • In the adhesion test, the material was damaged rather than the adhesive

Advantage of our solution:

  • Adhesive bonding instead of screws
  • Fast and visually appealing solution that meets the highest design requirements
  • Implementation of a total of 28,000 bondings
  • Processing at high outside temperatures of 40 °C possible
Floor 1
Floor 2
Floor 3
Floor 4
Floor 5

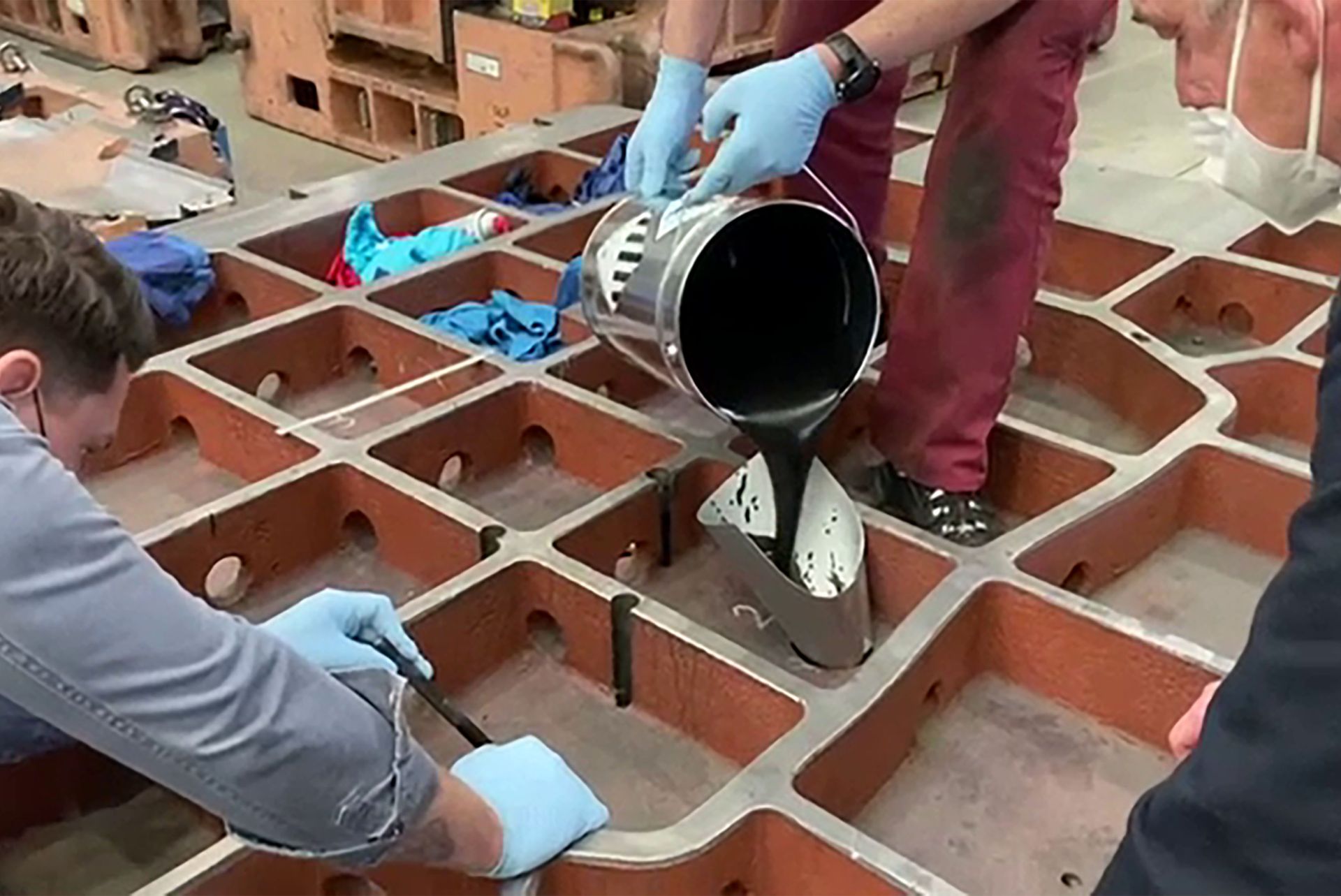

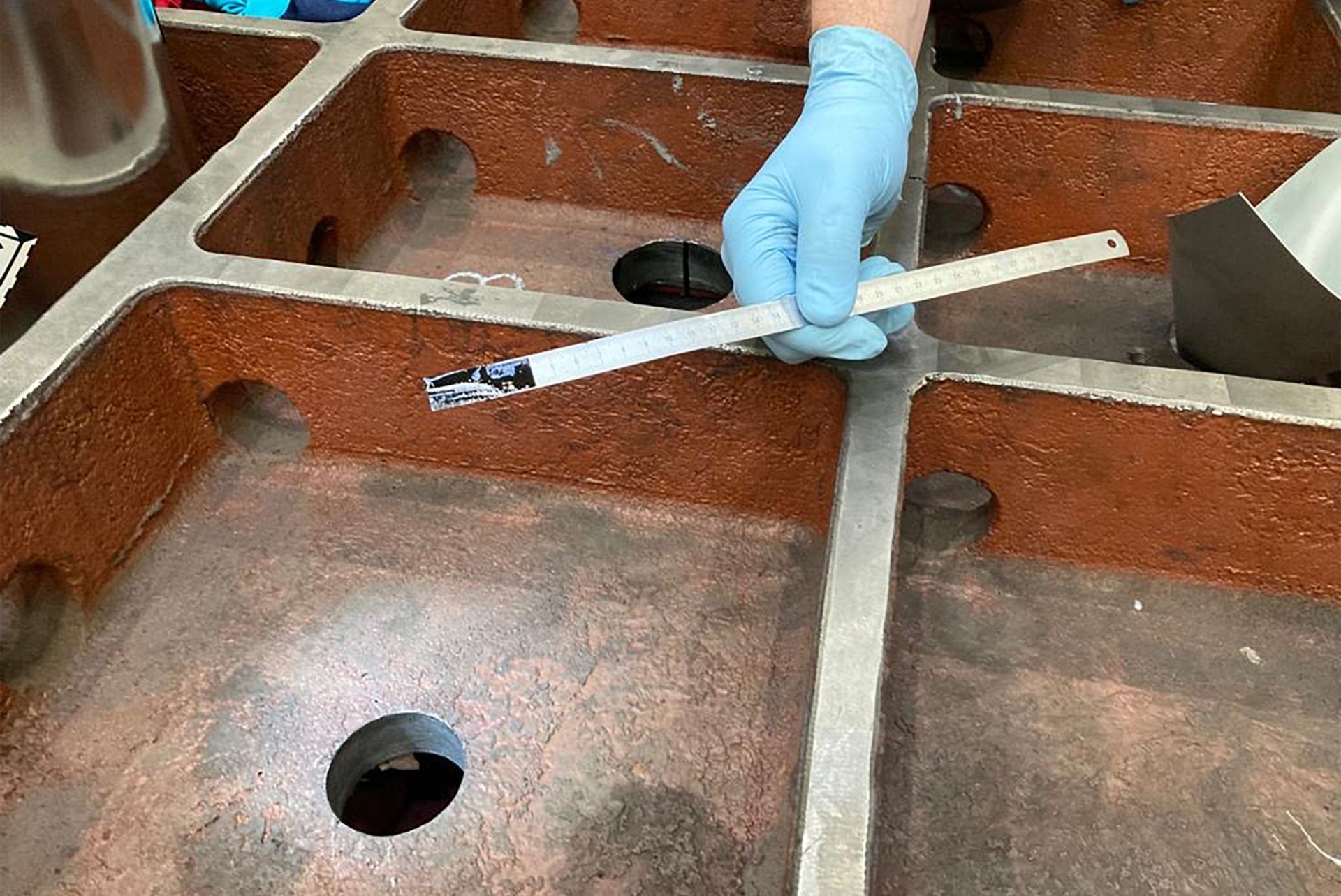

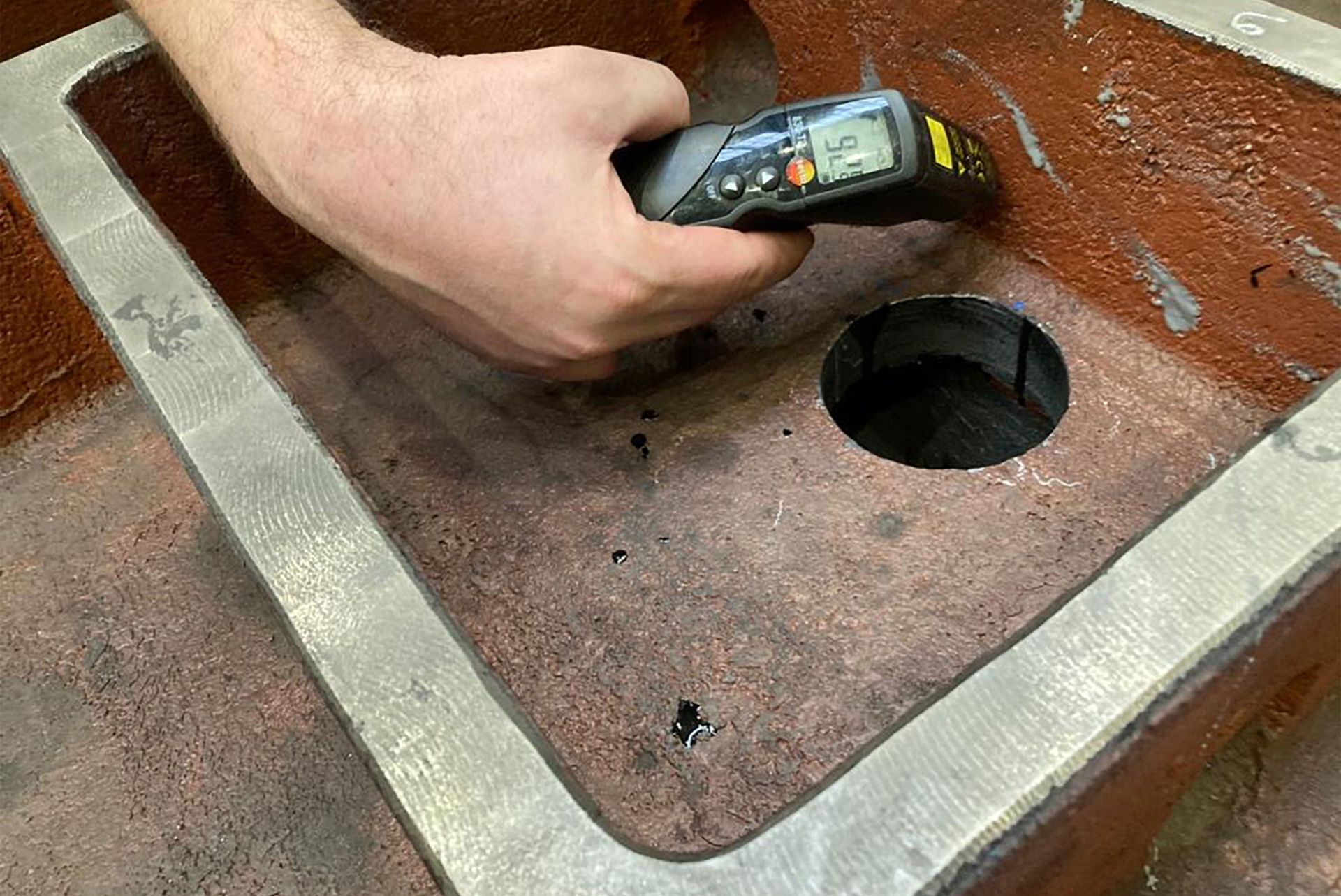

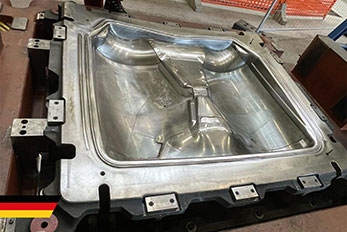

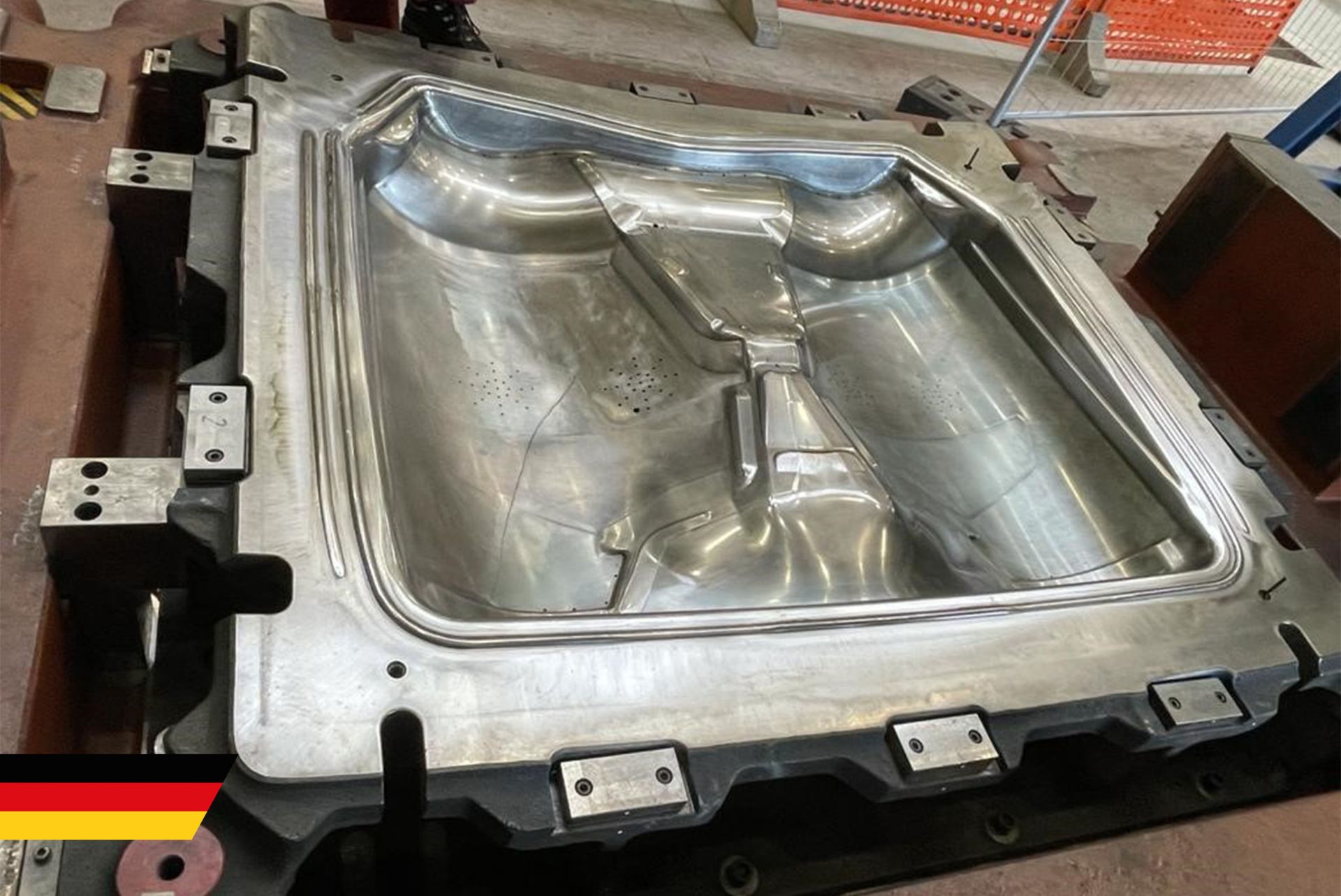

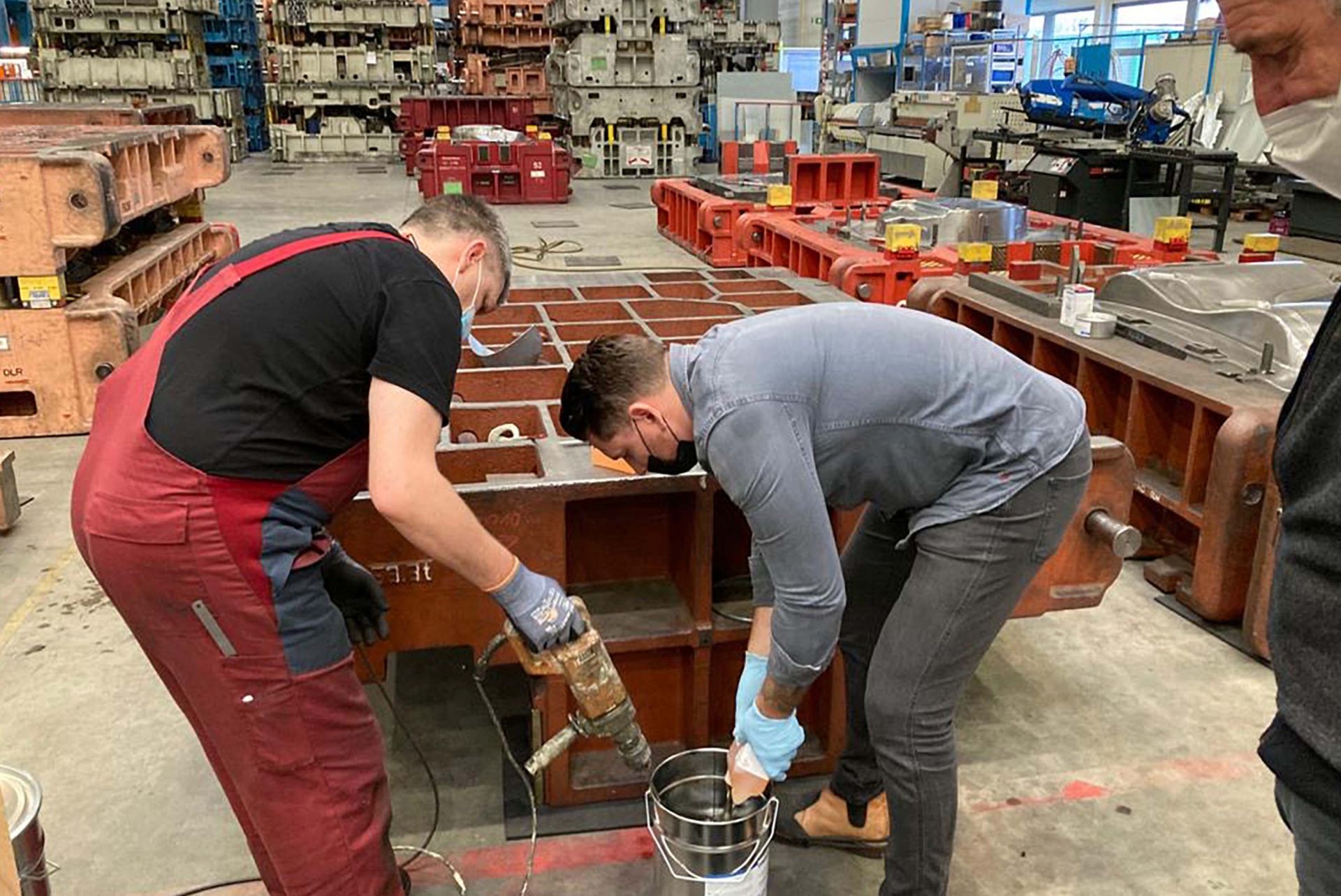

Crack repair of a moulding die for bumpers in the automotive industry

  • Cleaning of the rear honeycomb structure in the damaged area with WEICON Cleaner Spray S
  • Use of WEICON Crack Testing Agent to locate cracks
  • Pouring WEICON WR into the honeycombs to fill the cavities of the die
  • Material grouting of 235 kg WEICON WR was carried out over the period of one week (due to exothermic reaction)

Advantage of our solution:

  • Mould now withstands future pressure and further cracking is prevented
  • Economic repair to ensure final production of the batch
  • Cost savings of approx. 100,000 € for a new die
  • Another 8,000 to 10,000 pressings could be made to complete production
Grouting 1
Grouting 2
Grouting 3
Grouting 4
Grouting 5

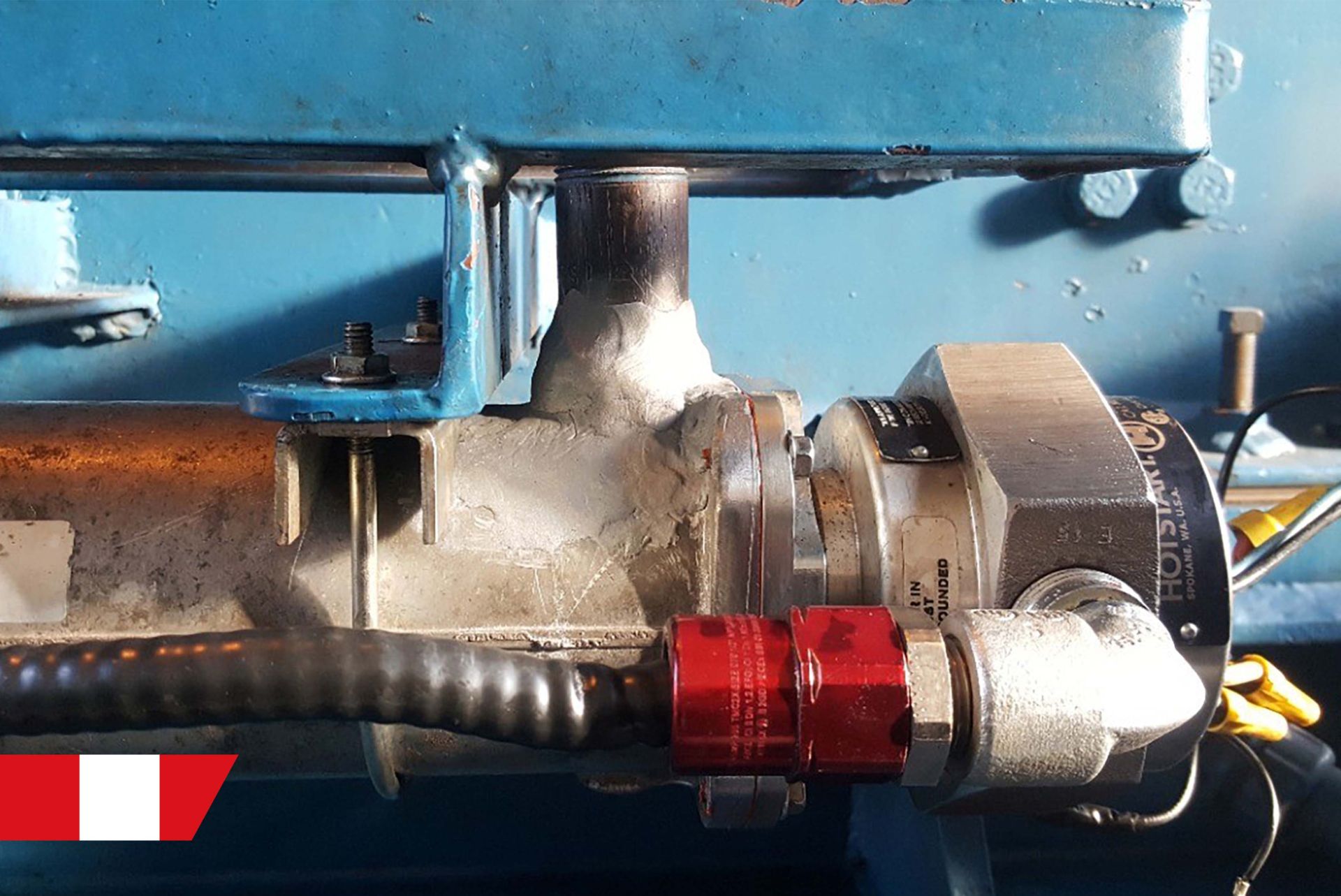

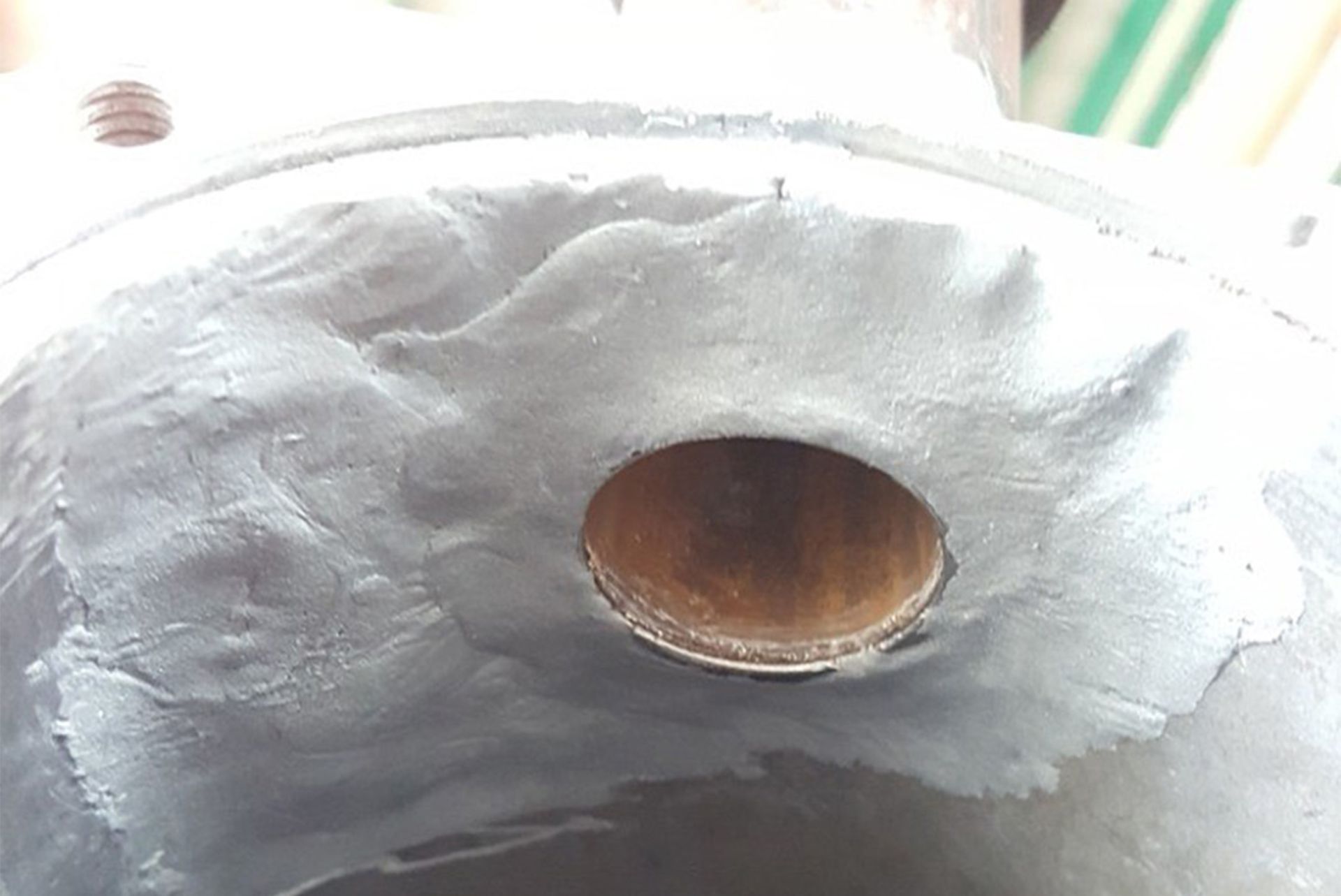

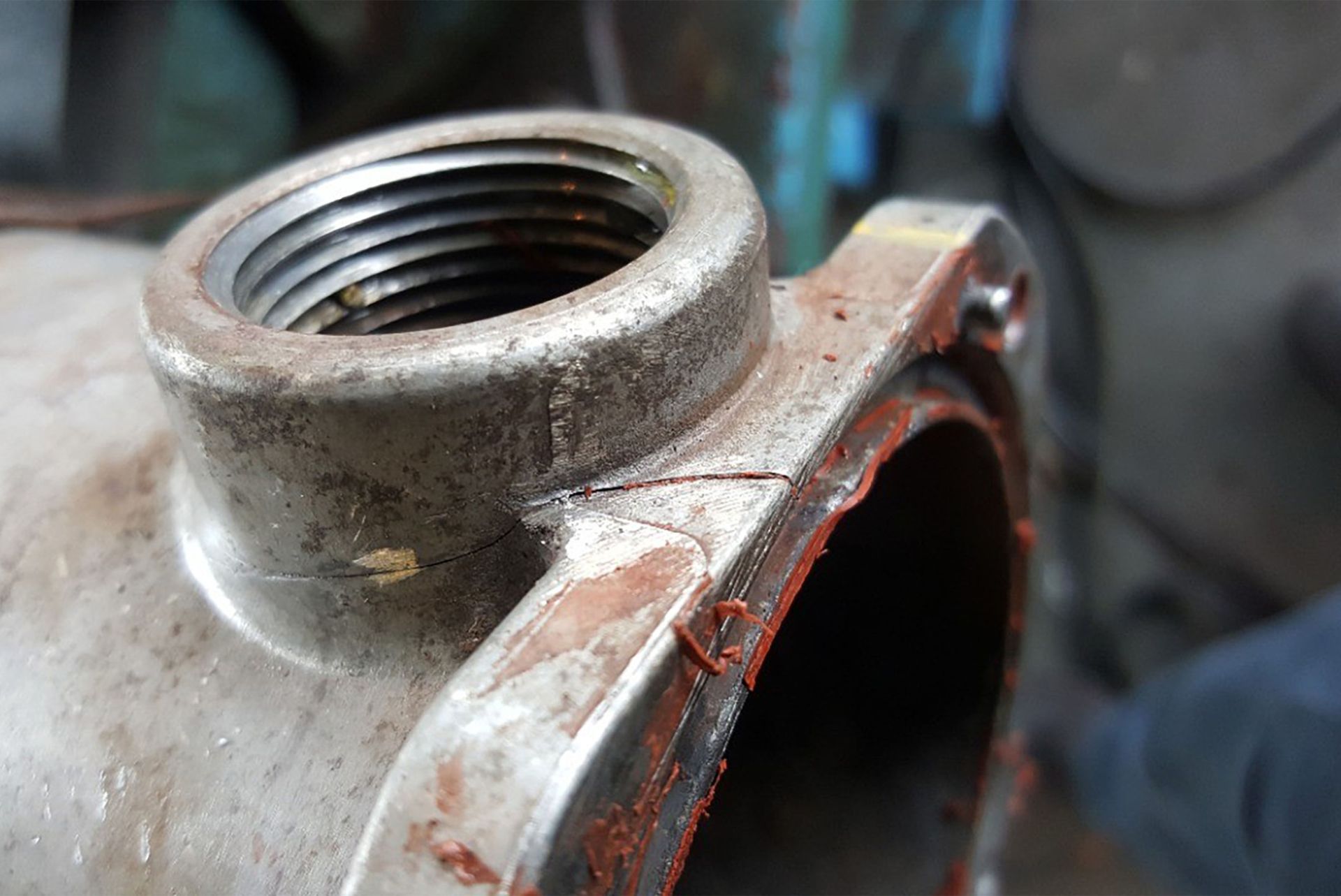

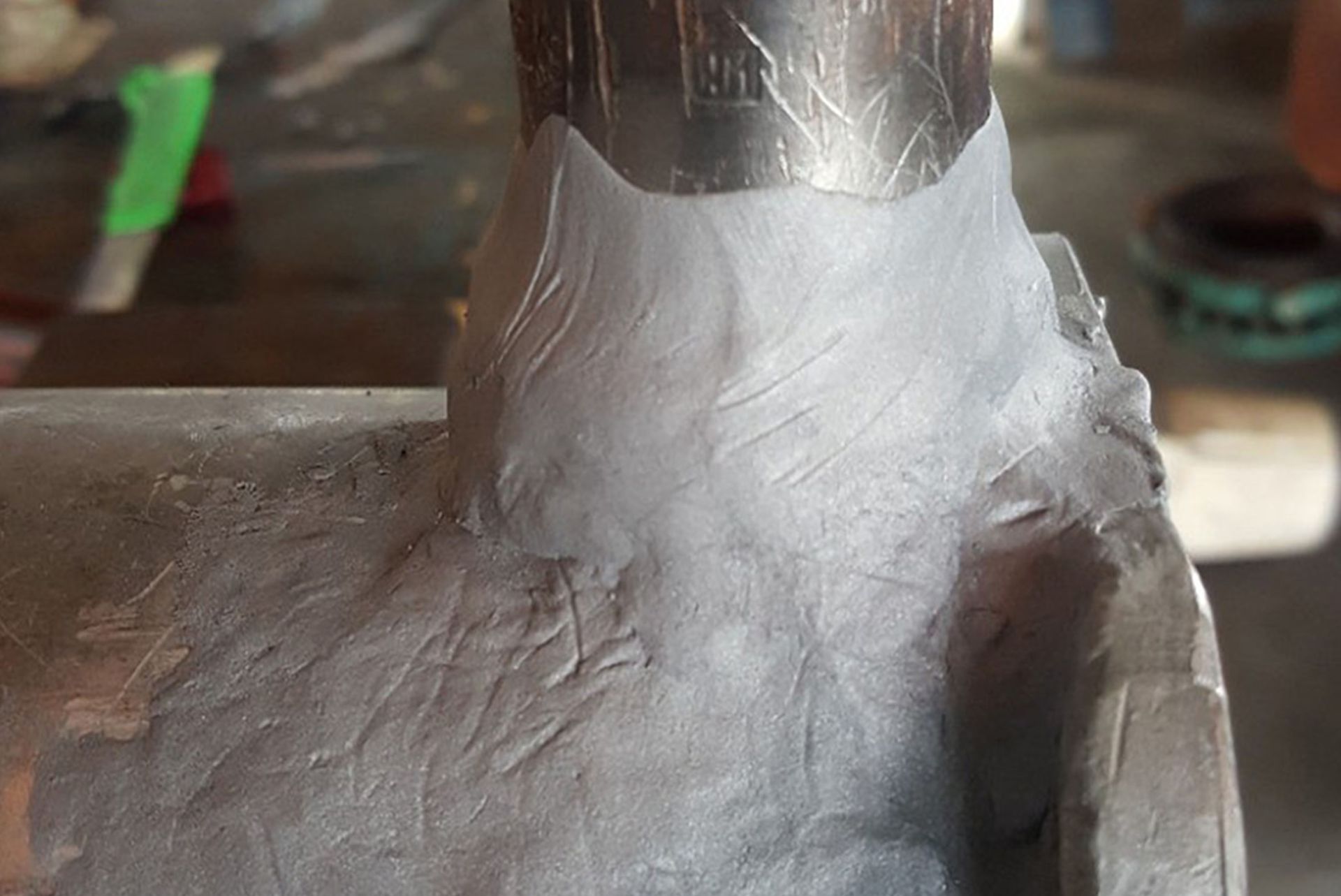

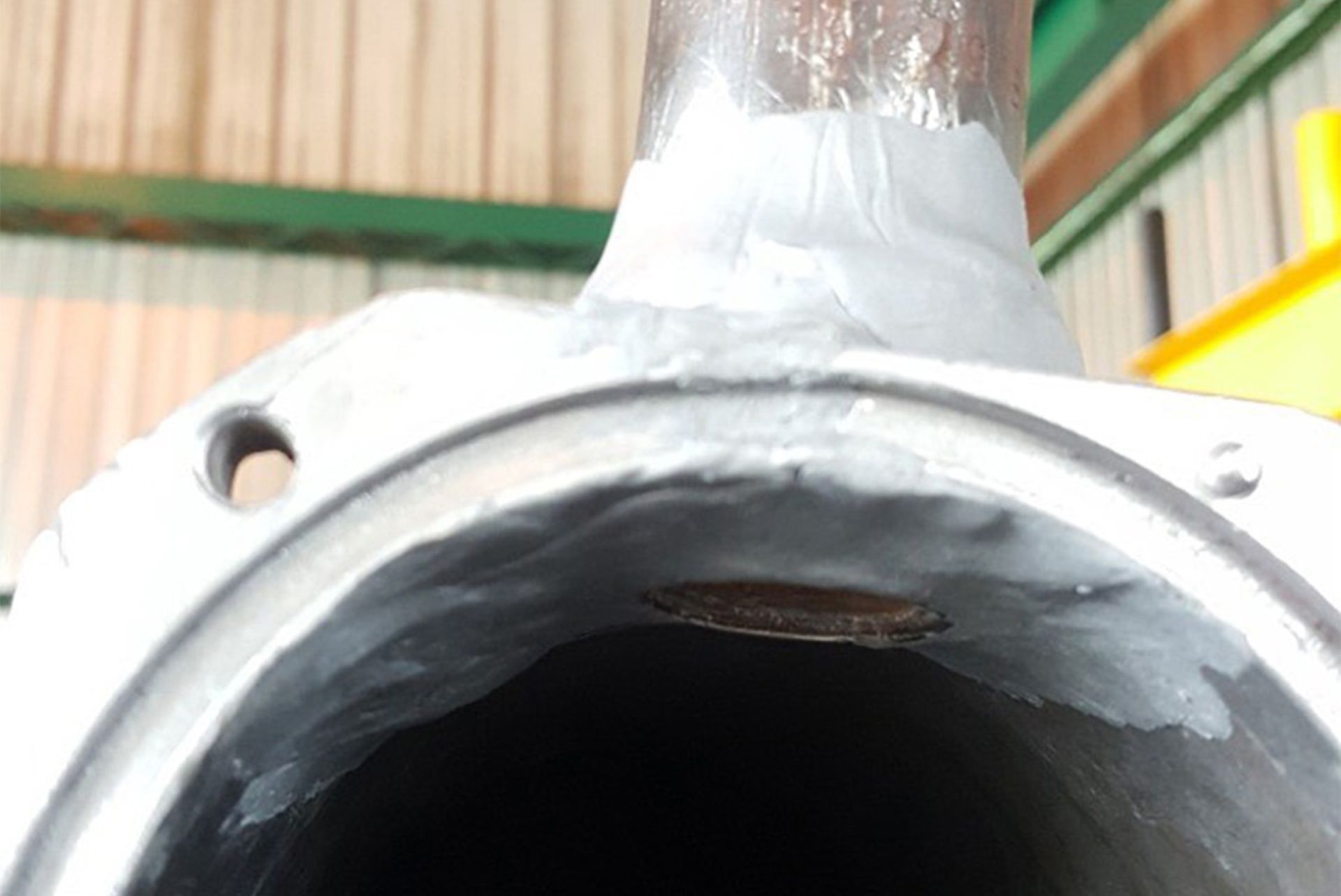

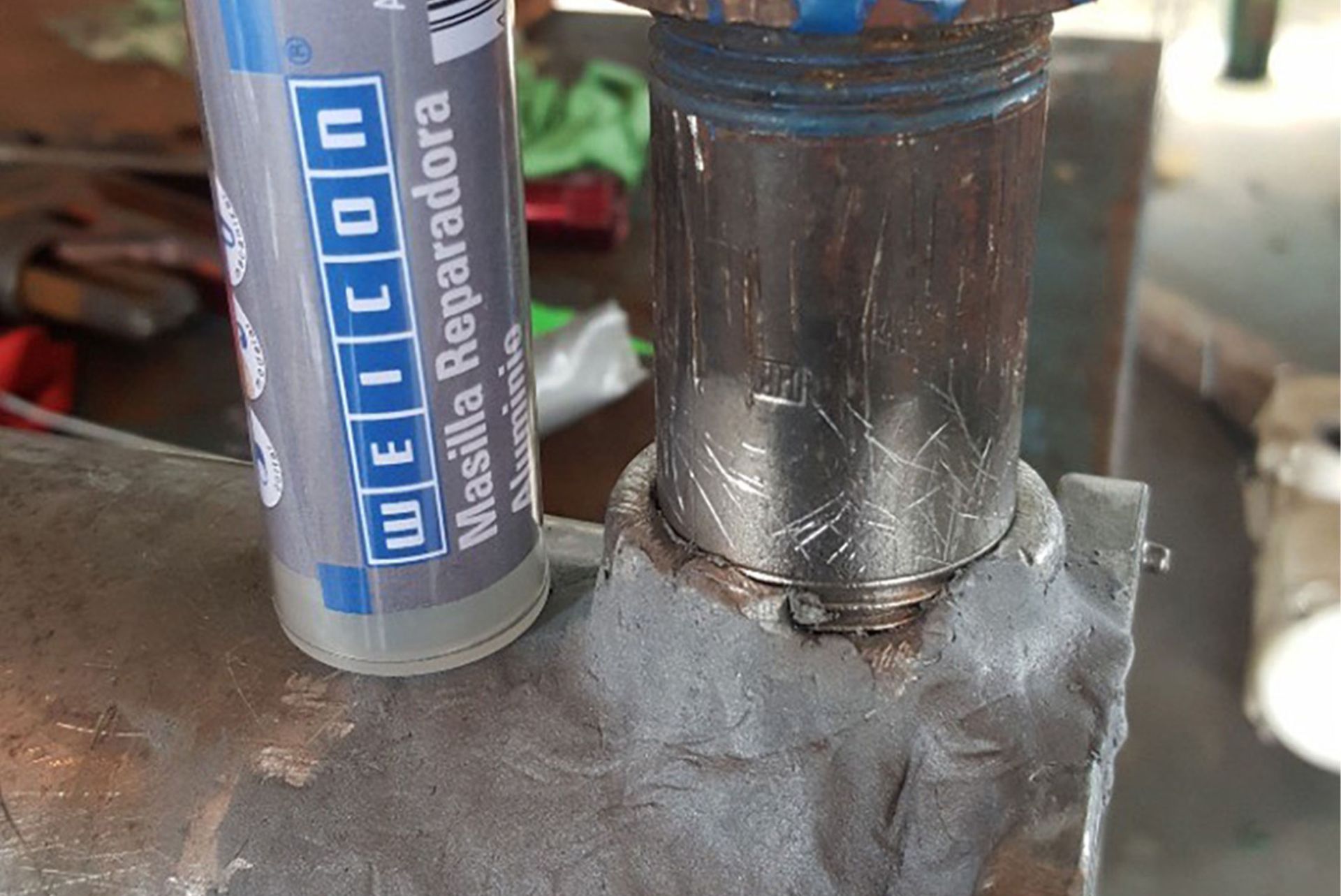

Repair of a leakage on a cooler

  • Sealing the leakage on the cooler of a caterpillar
  • Cleaning the surfaces with WEICON Cleaner Spray S
  • Sealing with WEICON Repair Stick Aluminium

Advantage of our solution:

  • The service life is significantly extended by the use of the Repair Stick Aluminium
  • The component does not need to be replaced
Fiberglass 1
Fiberglass 2
Fiberglass 3
Fiberglass 4
Fiberglass 5
Fiberglass 6

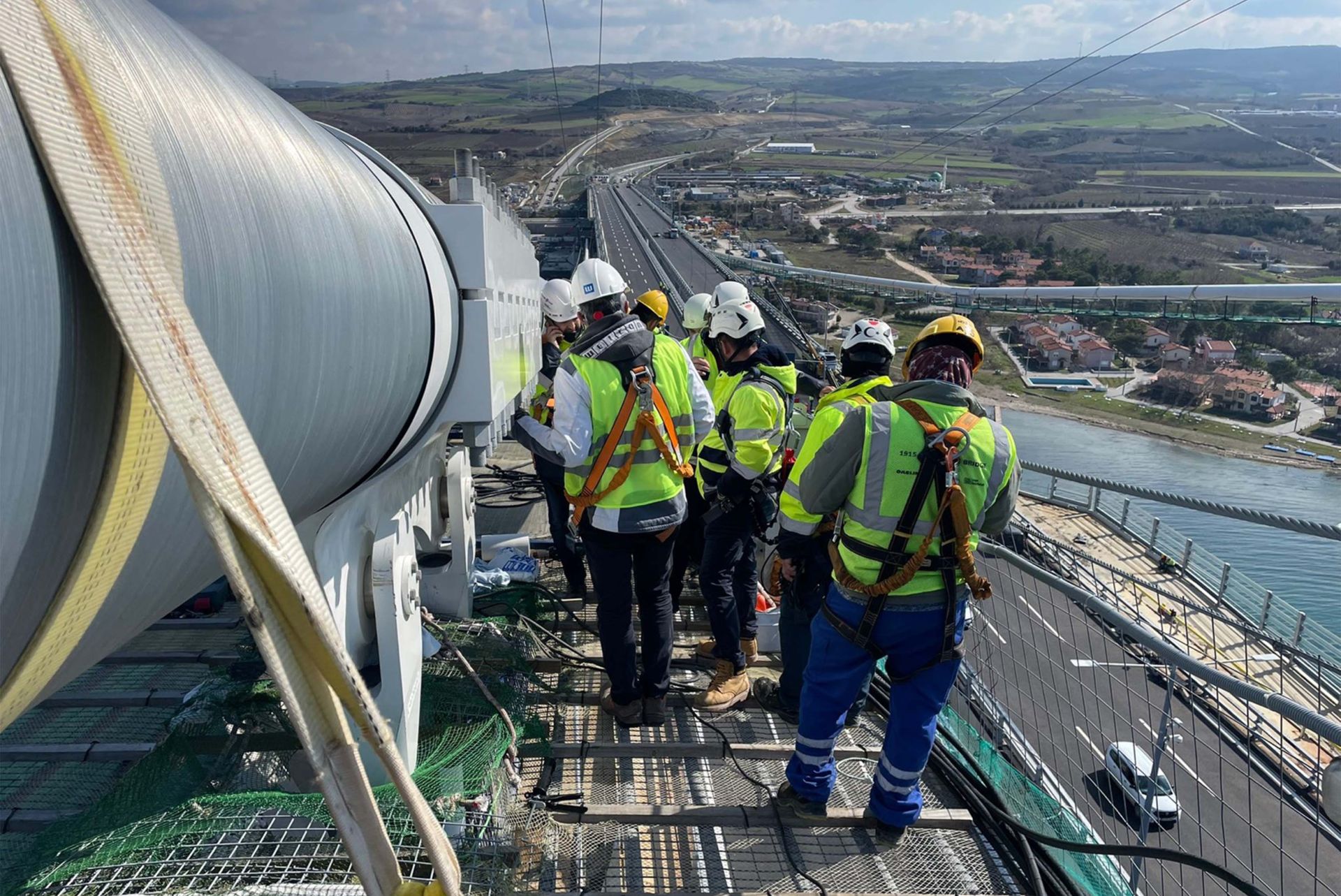

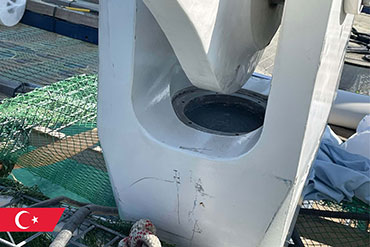

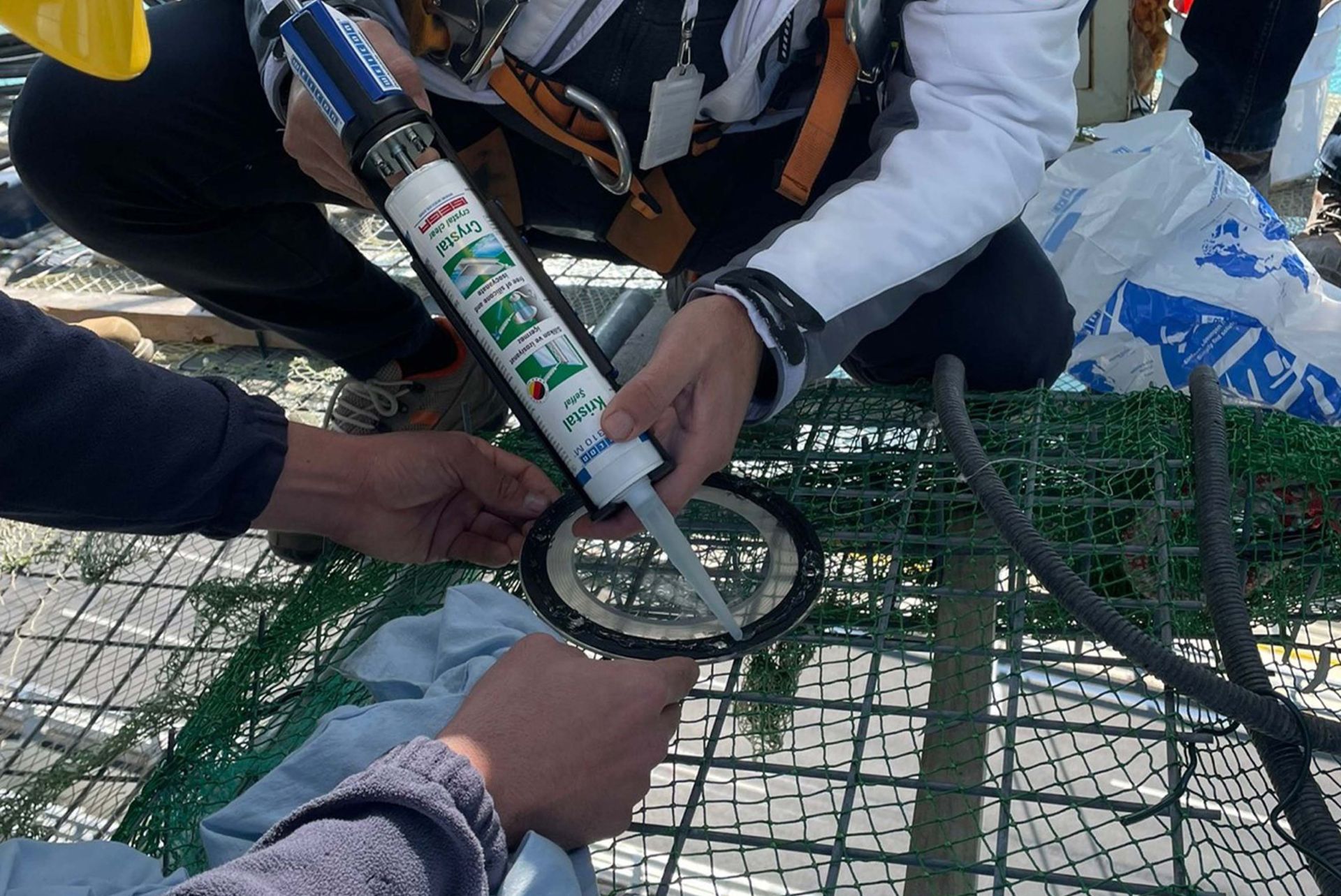

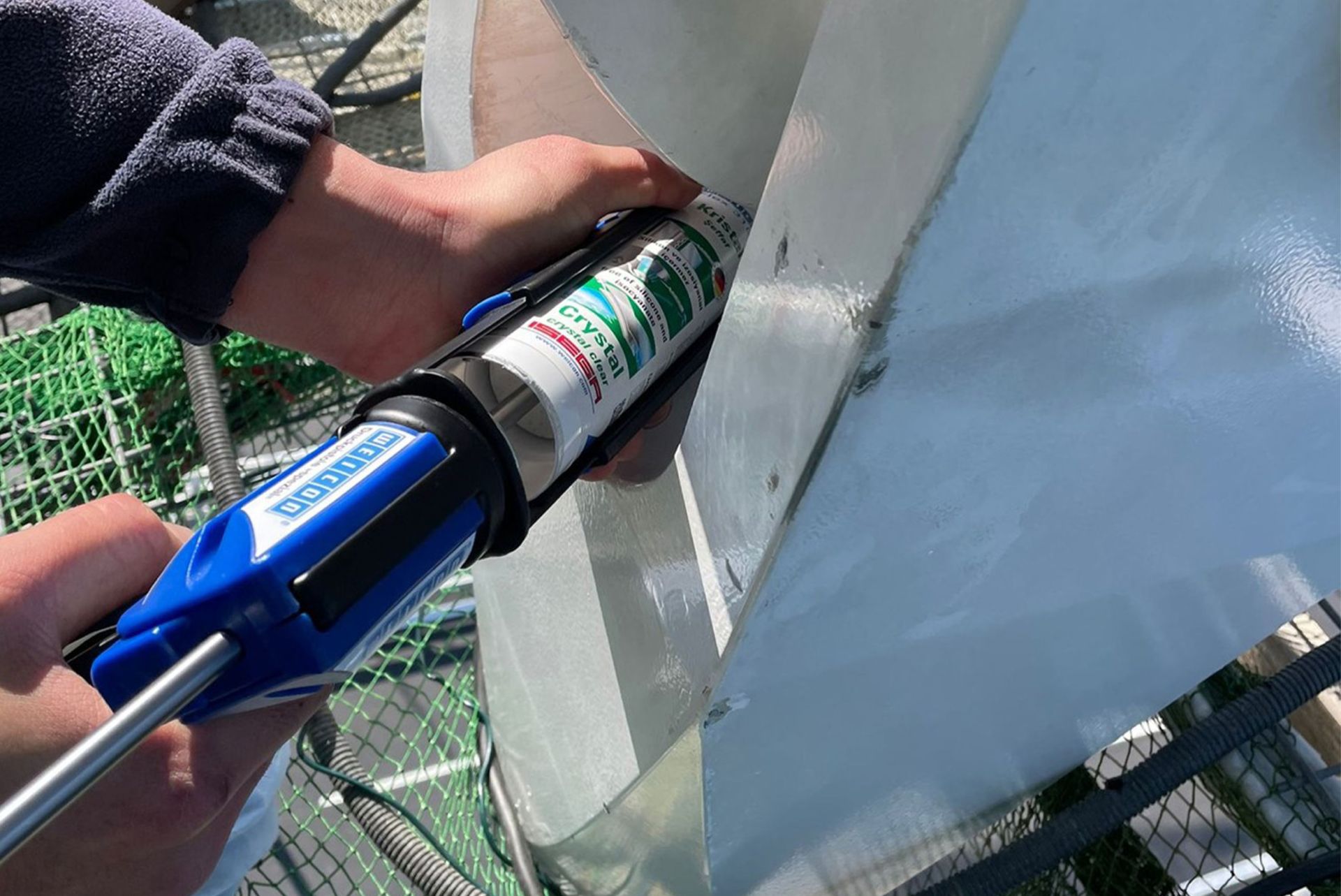

Bonding sight glasses to monitor the suspension cables on the Çanakkale 1915 Bridge

  • Sight glasses are sealed on the cable bulbs of the Çanakkale 1915 bridge
  • The surfaces were first dried and cleaned with WEICON Surface Cleaner
  • Subsequent sealing with Flex 310 M® Crystal

Advantage of our solution:

  • Durable transparent sealing against rainwater
  • High resistance to weathering, especially with regard to temperature changes
  • The requirement of a silicone-free material is met by Flex 310 M® Crystal
Bearing 1
Bearing 2
Bearing 3
Bearing 4

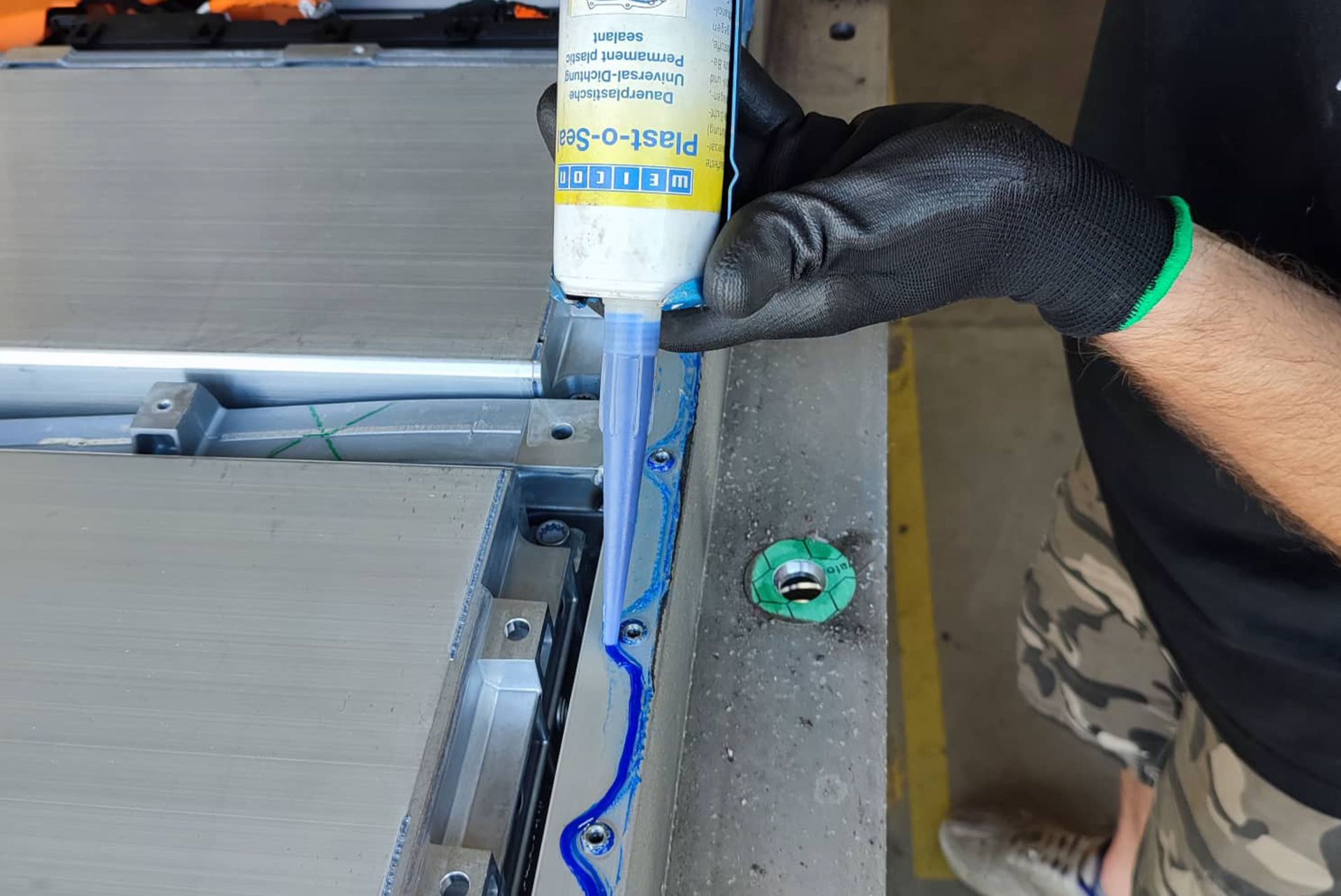

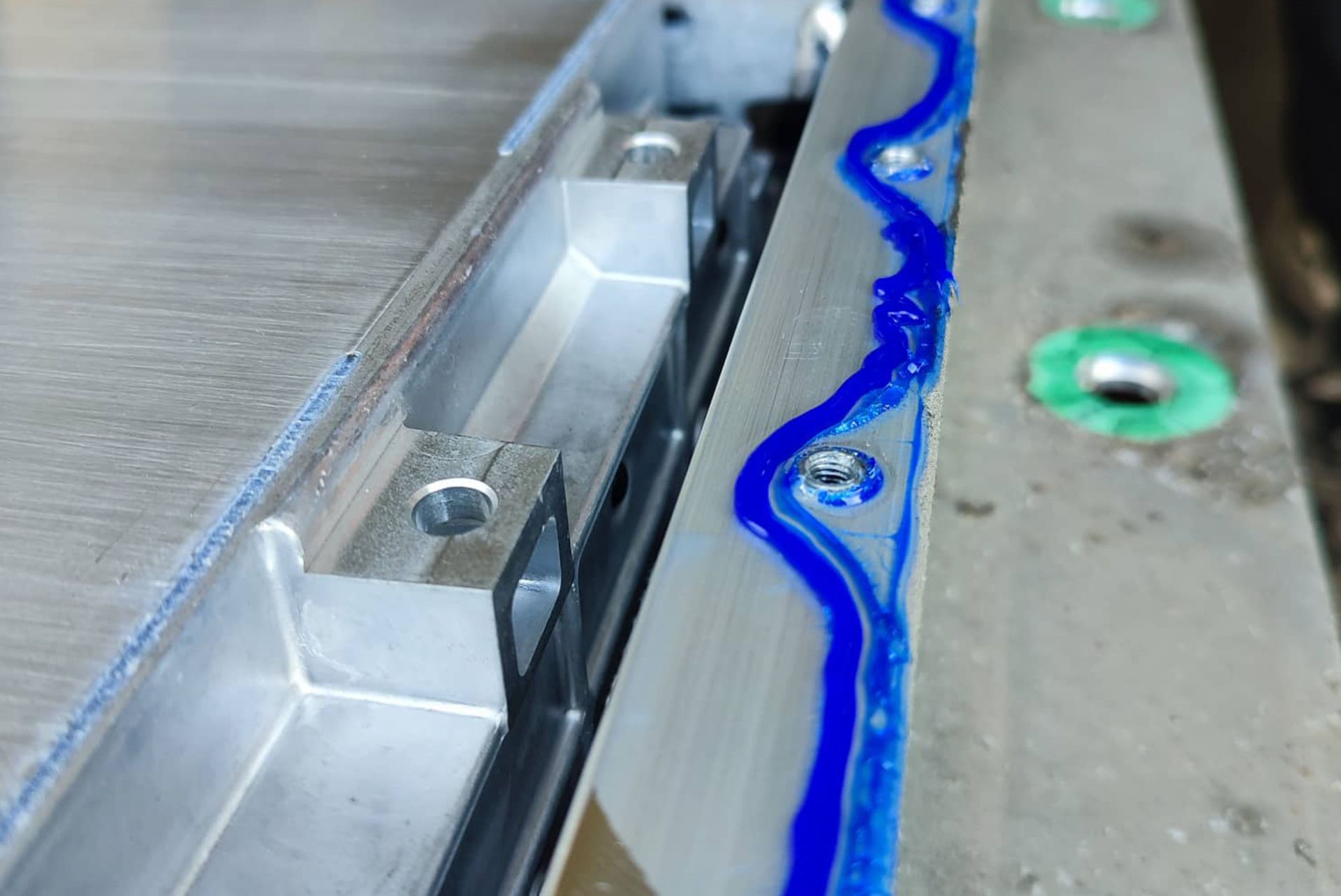

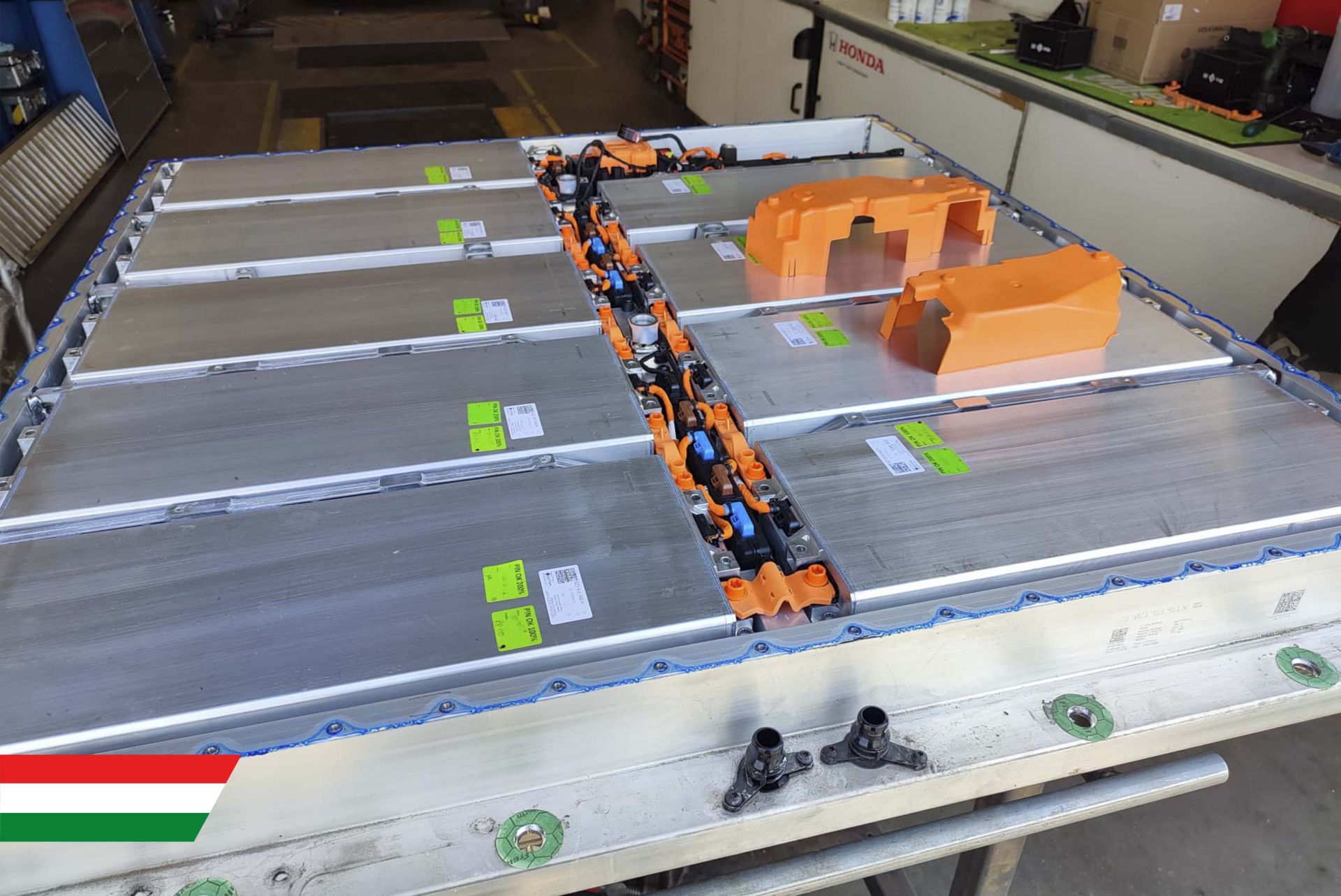

Sealing of battery packs on electric cars

  • Cleaning with WEICON Surface Cleaner
  • Sealing of the battery packs with WEICON Plast-o-Seal

Advantage of our solution:

  • Long-term sealing effect
Pump 1
Pump 2
Pump 3

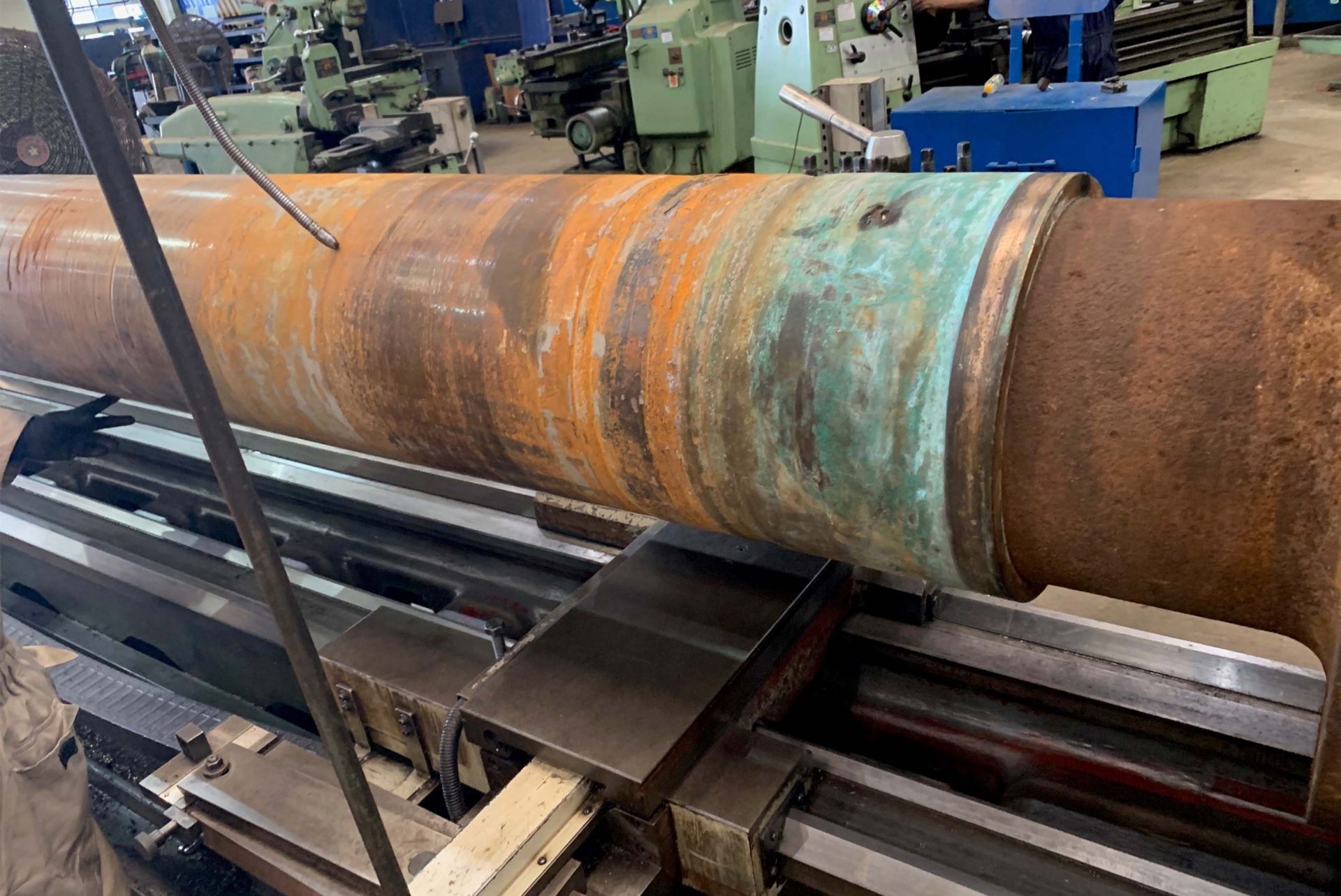

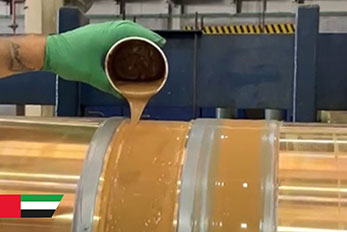

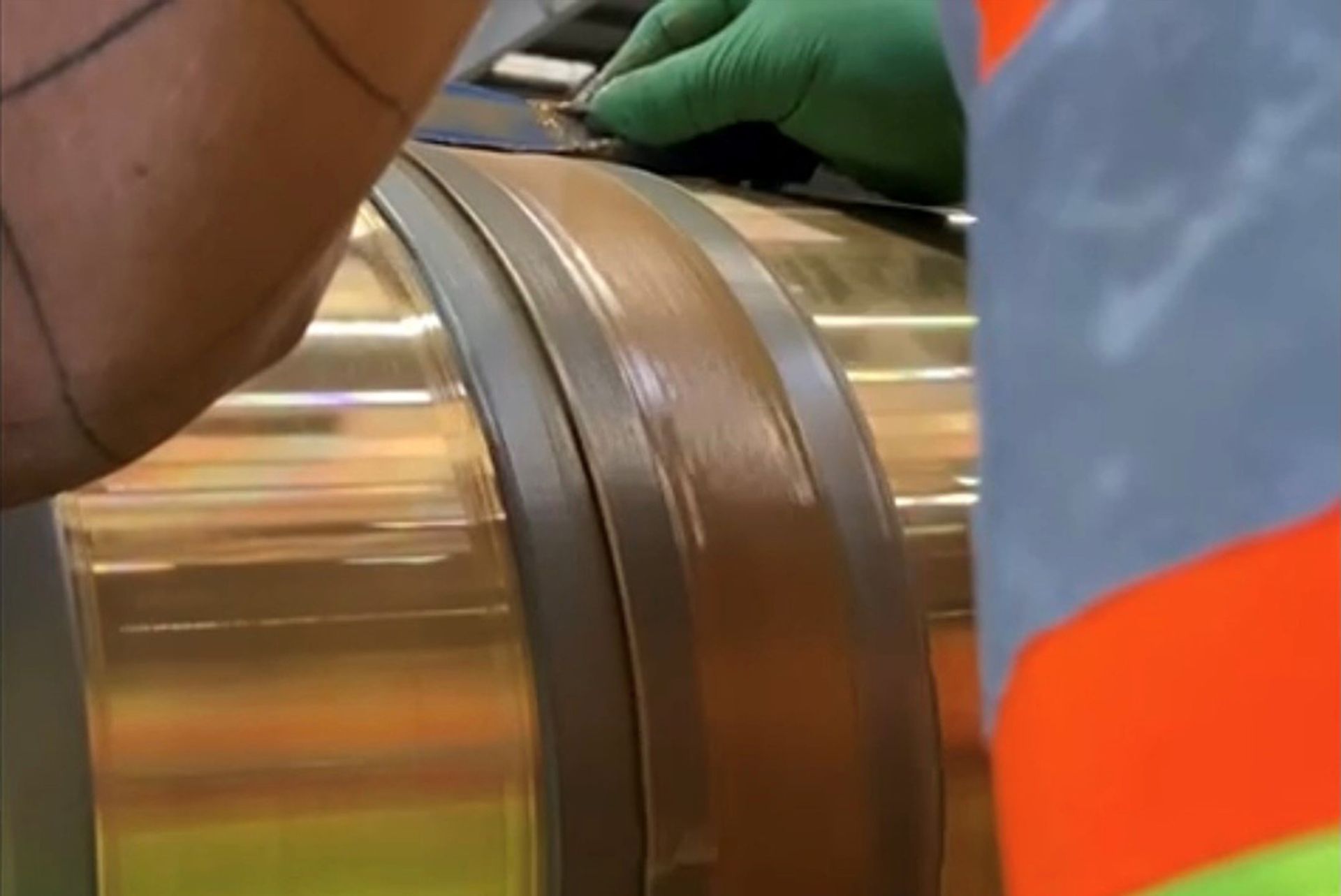

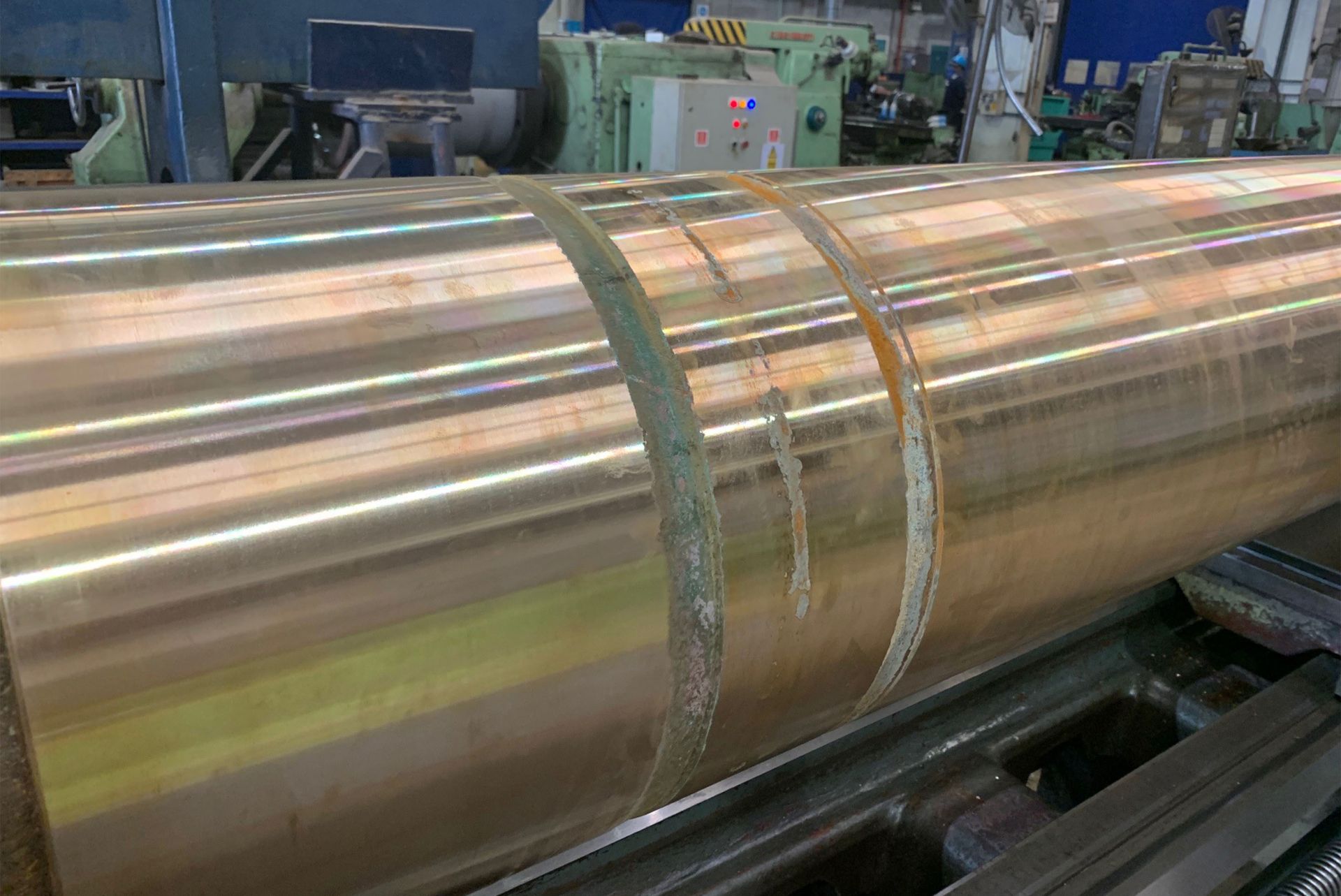

Repair of a bronze propeller shaft

  • Propeller shaft had shrunk slightly by approx. 5 mm in the sealing area due to sediment build-up (stern tube)
  • Shaft was sanded down by 4 mm and by 200 mm in width
  • Cleaning with WEICON Cleaner Spray S
  • Creating a barrier by means of tape (3 mm)
  • Application of WEICON BR at slow rotation of the shaft
  • Slow rotation of the shaft during curing to prevent WEICON BR from dripping off
  • Sanding the shaft to size after curing
  • Finishing the shaft with fine abrasive cloth (approx. 0.2 mm)
  • Reinstalling the propeller shaft

Advantage of our solution:

  • Avoidance of a cost-intensive replacement
  • Easy and time-saving repair
  • Good material compatibility and seawater resistance of WEICON BR
Chute 1
Chute 2
Chute 3
Chute 4
